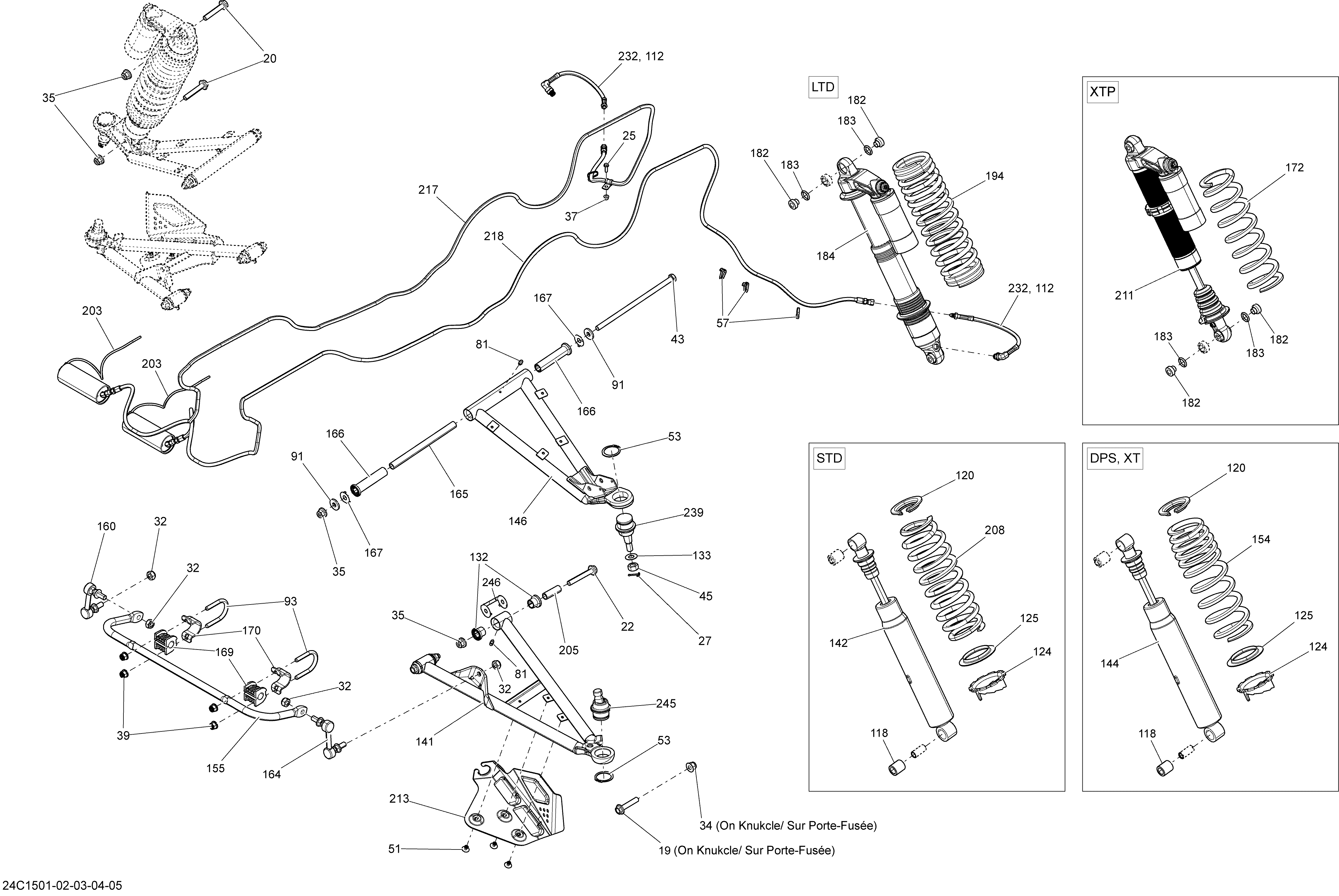

07- Front Suspension _24C1505 для BRP Commander MAX 1000_LTD - 2015
-
№АртикулНазвание
-
19207605044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
22207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
27211400017 Cotter PinCotter Pin
-
34233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
35233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
43250000510 Hex. Cap Screw M10 X 225Hex. Cap Screw M10 X 225
-
45250100099 Nut M12Nut M12
-
51293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
53293370035 CirclipCirclip
-
81408200700 Grease FittingGrease Fitting
-
91503190439 WasherWasher
-
112705600459 Clamp. Package-LTDClamp. Package-LTD
-
132706200181 BushingBushing
-
133250200086 Flat WasherFlat Washer
-
141706200742 LH Lower Suspension ArmLH Lower Suspension Arm
-
141706200744 RH Lower Suspension ArmRH Lower Suspension Arm
-
146706200796 Suspension Upper ArmSuspension Upper Arm
-
165706201061 Inner BushingInner Bushing
-
166706201062 CushionCushion
-
167706201063 Wear PlateWear Plate
-
172706202041 Black Front Spring. Package-LTDBlack Front Spring. Package-LTD
-
205706201587 SleeveSleeve
-
211706202192 Front Shock. Package-LTDFront Shock. Package-LTD
-
213706201669 LH ProtectorLH Protector
-
213706201670 RH ProtectorRH Protector
-
232706201446 LH Front Hose Assembly. Package-LTDLH Front Hose Assembly. Package-LTD
-
239706202044 Ball JointBall Joint
-
245706202045 Ball JointBall Joint
-
246706202089 Wear PlateWear Plate
