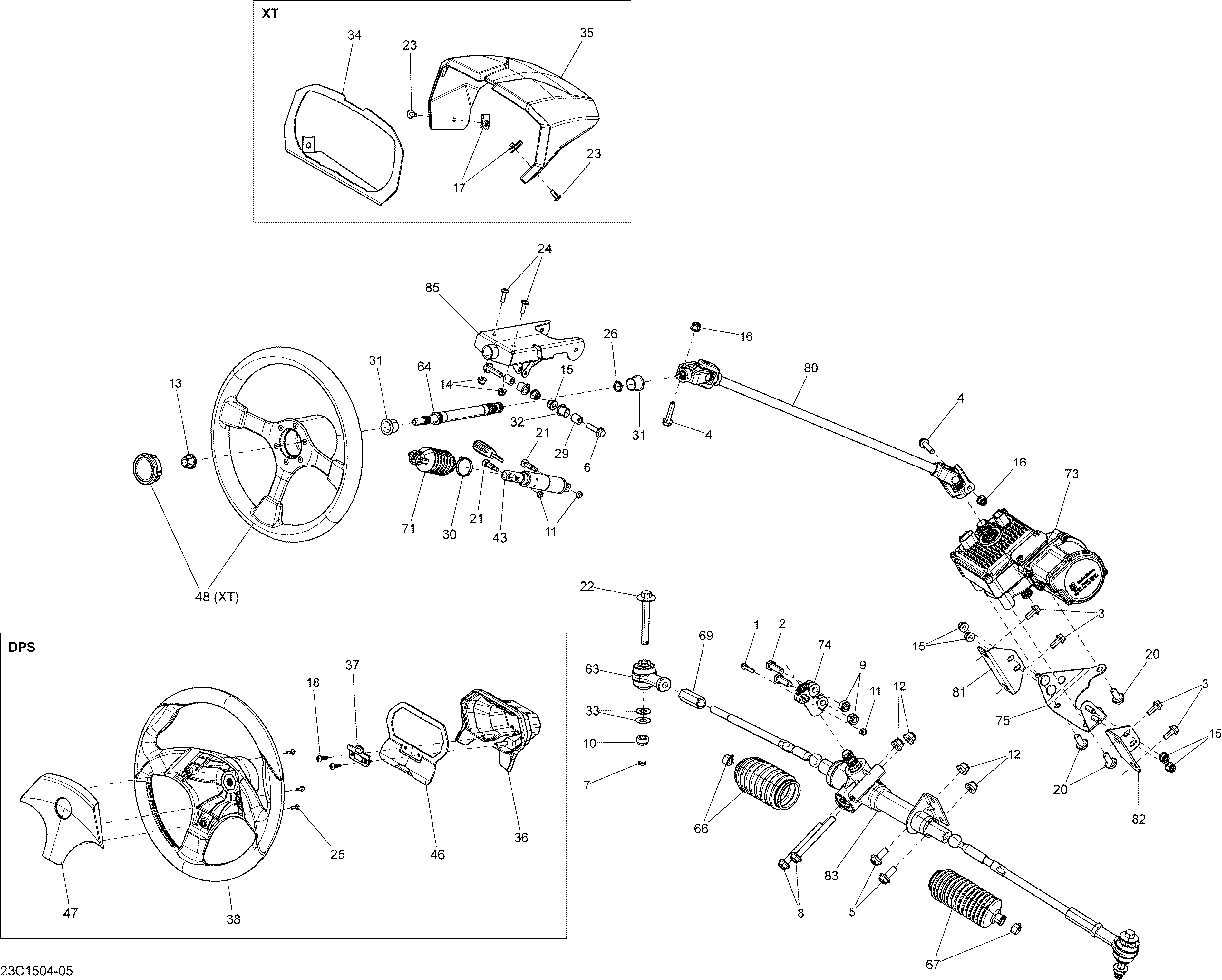

07- Steering _23C1505 для BRP Commander MAX 1000_LTD - 2015
-
№АртикулНазвание
-
1207063044 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
2207103586 Hex. Screw M10 X 35Hex. Screw M10 X 35
-
3207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
4207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
5207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
6207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
7211400017 Cotter PinCotter Pin
-
8230500046 Hex. Screw M10 X 100, Scotch GripHex. Screw M10 X 100, Scotch Grip
-
9232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
10232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
11232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
11232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
12233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
13233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
16233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
17250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
20250000601 Hex. Flanged Screw M10 X 20, Scotch GripHex. Flanged Screw M10 X 20, Scotch Grip
-
21250000669 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
22250000657 Hexagonal Screw M12 X 88Hexagonal Screw M12 X 88
-
23250000721 Torx ScrewTorx Screw
-
24250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
26293300144 O-RingO-Ring
-
29293900106 BushingBushing
-
30414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31415108000 CushionCushion
-
32705600799 BushingBushing
-
33250200086 Flat WasherFlat Washer
-
34707900013 Cluster SupportCluster Support
-
35707900124 Upper Cluster CoverUpper Cluster Cover
-
43709400656 Adjustment CylinderAdjustment Cylinder
-
48715001134 Steering Wheel KitSteering Wheel Kit
-
63709401134 Ball JointBall Joint
-
64709401167 Steering ShaftSteering Shaft
-
66715900235 Boot Kit, Pinion SideBoot Kit, Pinion Side
-
67715900236 Boot Kit, Tube SideBoot Kit, Tube Side
-
69715900237 Nut Tie Rod EndNut Tie Rod End
-
71709401232 Boot Kit, Tube SideBoot Kit, Tube Side
-
73709401406 Power SteeringPower Steering
-
74709401294 CouplingCoupling
-
75709401296 SupportSupport
-
80709401326 Steering ColumnSteering Column
-
81709401336 LH DPS SupportLH DPS Support
-
82709401337 RH DPS SupportRH DPS Support
-
83709401390 Rack And Pinion SteeringRack And Pinion Steering
-
85709401391 Painted Steering Wheel SupportPainted Steering Wheel Support
