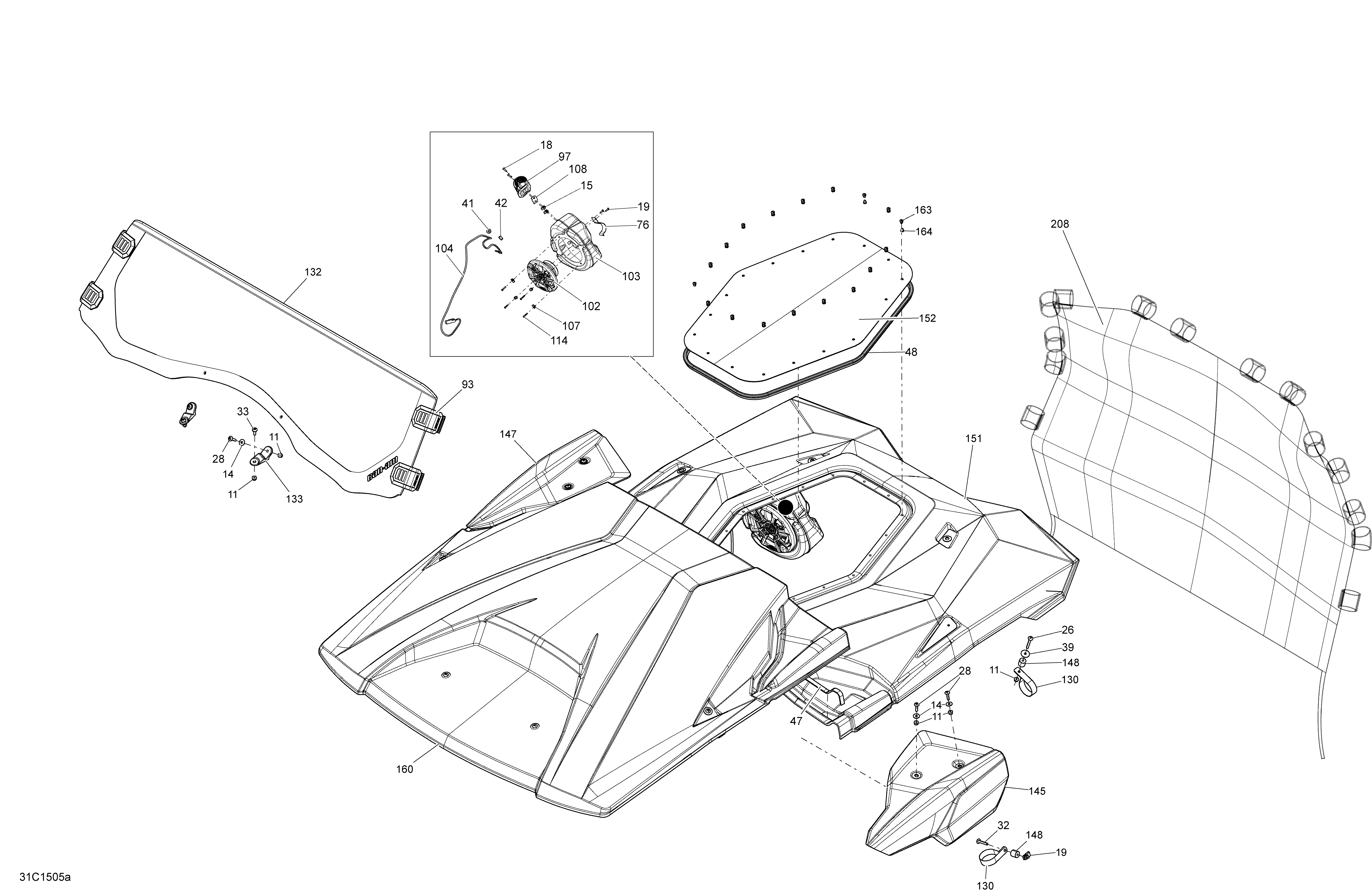

09- Body And Accessories Roof And Windshield_31C1505a для BRP Commander MAX 1000_LTD - 2015
-
№АртикулНазвание
-
11233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
14234062670 Flat Washer, StainlessFlat Washer, Stainless
-
15250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
18250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
19250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
26250000239 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
28250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
33250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
39250200029 Washer M6Washer M6
-
41414036300 GrommetGrommet
-
42414227300 ClipClip
-
47293250087 Gasket, NeopreneGasket, Neoprene
-
48293250336 Molding TrimMolding Trim
-
76705009030 ''U'' Brace Strip''U'' Brace Strip
-
93705007961 Velcro StrapVelcro Strap
-
97705007962 Perforated Velcro StrapPerforated Velcro Strap
-
102710002838 SpeakerSpeaker
-
103710002837 LH Speaker Box Ass'yLH Speaker Box Ass'y
-
103710002839 RH Speaker Box Ass'yRH Speaker Box Ass'y
-
104710002857 Speaker HarnessSpeaker Harness
-
107250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
108710002946 M5 Support PlateM5 Support Plate
-
114250000622 Torx Pan Screw M4 X 20Torx Pan Screw M4 X 20
-
130705005626 ''P'' Bracket, 2'' Dia.''P'' Bracket, 2'' Dia.
-
132705005671 Half WindshieldHalf Windshield
-
133705005776 Windshield SupportWindshield Support
-
145705008585 Deep Pewter Satin LH Top Center Cage CapDeep Pewter Satin LH Top Center Cage Cap
-
145705008609 White LH Top Center Cage CoverWhite LH Top Center Cage Cover
-
147705008586 Deep Pewter Satin RH Top Center Cage CapDeep Pewter Satin RH Top Center Cage Cap
-
147705008610 White RH Top Center Cage CoverWhite RH Top Center Cage Cover
-
148705007138 Roof Spacer BushingRoof Spacer Bushing
-
151705009204 Quarry Grey Roof Rear SectionQuarry Grey Roof Rear Section
-
151705009205 Deep Black Roof Rear SectionDeep Black Roof Rear Section
-
152705009562 Clear Skylight PanelClear Skylight Panel
-
160705009202 Quarry Grey Roof Front SectionQuarry Grey Roof Front Section
-
160705009203 Deep Black Roof Front SectionDeep Black Roof Front Section
-
163705009405 Plastic DartPlastic Dart
-
164705009406 Push NutPush Nut
-
208715002033 Rear Net Wind Deflector Ass'yRear Net Wind Deflector Ass'y
