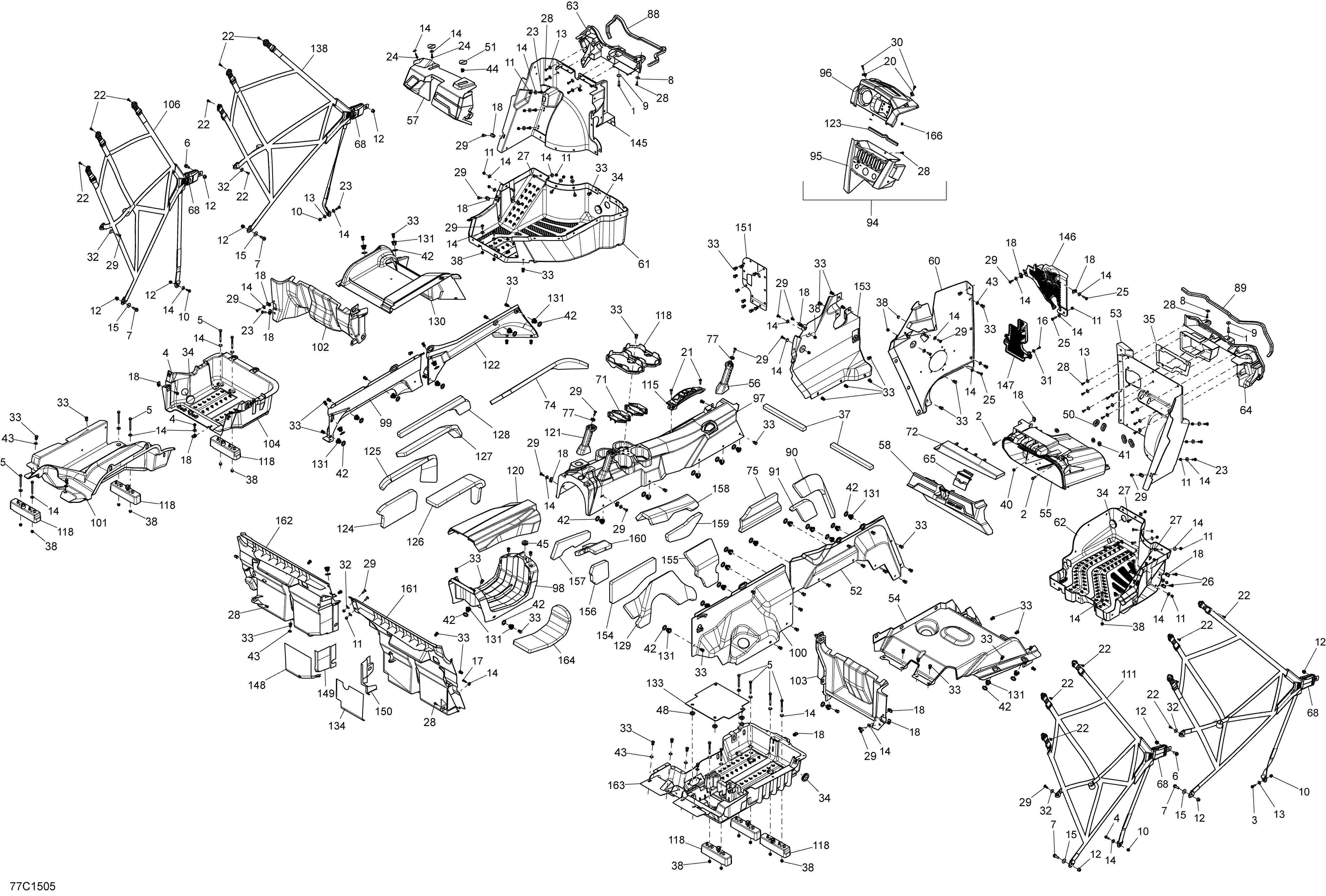

09- Cab Interior _77C1505 для BRP Commander MAX 1000_LTD - 2015
-
№АртикулНазвание
-
1207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
2207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
7207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
8224060201 Flat WasherFlat Washer
-
9224061201 Flat WasherFlat Washer
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
12233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13234062410 Flat Washer 6 mmFlat Washer 6 mm
-
14234062670 Flat Washer, StainlessFlat Washer, Stainless
-
15234082410 Flat Washer 8 mmFlat Washer 8 mm
-
16241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
17241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
18250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
20250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
21250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
22250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
23250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
24250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
25250000398 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
26250000630 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
26250000630 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
27250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
28250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
29250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
30250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
31250200025 Washer M5Washer M5
-
32250200040 Flat WasherFlat Washer
-
33293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
34293250242 Rubber CoverRubber Cover
-
35293250252 Upper SealUpper Seal
-
36293250253 Bottom SealBottom Seal
-
37293250318 Seal TraySeal Tray
-
38293450274 InsertInsert
-
40293830005 Rubber BumperRubber Bumper
-
41414859400 CapCap
-
42503189273 WasherWasher
-
43506151252 WasherWasher
-
44517302785 ClipClip
-
45517303756 GrommetGrommet
-
48705003264 GrommetGrommet
-
50705003668 Oblong GrommetOblong Grommet
-
51705003841 Support PlateSupport Plate
-
52707900002 RH Side ConsoleRH Side Console
-
53707900004 RH Front FloorRH Front Floor
-
54707900006 RH Under Seat PlateRH Under Seat Plate
-
55707900046 Storage BinStorage Bin
-
56707900011 Passenger HandlePassenger Handle
-
57715001250 Dashboard Ass'yDashboard Ass'y
-
58707900221 Luggage Cover KitLuggage Cover Kit
-
60707900098 RH Fixe Side ConsoleRH Fixe Side Console
-
61707900022 LH Lower FloorLH Lower Floor
-
62707900023 RH Lower FloorRH Lower Floor
-
63707900029 LH Floor SupportLH Floor Support
-
64707900030 RH Floor SupportRH Floor Support
-
65707900031 LatchLatch
-
68707900035 BuckleBuckle
-
71707900036 Cup RetainerCup Retainer
-
72707900062 Trim Glove BoxTrim Glove Box
-
74707900044 LH Lower Lateral Console FoamLH Lower Lateral Console Foam
-
75707900045 RH Lateral Console FoamRH Lateral Console Foam
-
77707900048 Connector TubeConnector Tube
-
88293200093 Neoprene SealNeoprene Seal
-
89293200093 Neoprene SealNeoprene Seal
-
90707900055 RH Lateral Console FoamRH Lateral Console Foam
-
91707900056 RH Lateral Console FoamRH Lateral Console Foam
-
94715002187 Central Dashboard Ass'yCentral Dashboard Ass'y
-
95707900065 Lower Central Dashboard Ass'yLower Central Dashboard Ass'y
-
96707900066 Gauge SupportGauge Support
-
97715002193 Front Console Cover KitFront Console Cover Kit
-
98707900075 Rear Central ConsoleRear Central Console
-
99707900079 LH Rear Console PanelLH Rear Console Panel
-
100707900080 RH Rear Console PanelRH Rear Console Panel
-
101707900081 LH Rear Bottom PanLH Rear Bottom Pan
-
102707900082 LH Rear Upper Floor CoverLH Rear Upper Floor Cover
-
103707900083 Seat CoverSeat Cover
-
104707900084 LH Mid FloorLH Mid Floor
-
106707900086 LH Rear Safety Net. Upper Link 707900049LH Rear Safety Net. Upper Link 707900049
-
111707900087 RH Rear Safety Net. Upper Link 707900049RH Rear Safety Net. Upper Link 707900049
-
115707900088 Shift Lever IndicatorShift Lever Indicator
-
118707900099 Support PlateSupport Plate
-
119707900100 Cup HolderCup Holder
-
120707900229 Rear Console Cover KitRear Console Cover Kit
-
121707900103 HandleHandle
-
122707900001 LH Side ConsoleLH Side Console
-
123271000110 Protection TrimProtection Trim
-
124707900116 Acoustic FoamAcoustic Foam
-
125707900117 Acoustic FoamAcoustic Foam
-
126707900118 Acoustic FoamAcoustic Foam
-
127707900119 Acoustic FoamAcoustic Foam
-
128707900120 Acoustic FoamAcoustic Foam
-
129707900121 Acoustic FoamAcoustic Foam
-
130707900130 Under Seat CoverUnder Seat Cover
-
131707900133 InsertInsert
-
133707900163 Battery CoverBattery Cover
-
134707900167 Heat ShieldHeat Shield
-
138707900171 LH Safety NetLH Safety Net
-
144707900172 RH Safety NetRH Safety Net
-
145707900175 LH Front Upper FloorLH Front Upper Floor
-
146707900178 GrillGrill
-
147707900180 GrillGrill
-
148707900182 Heat ShieldHeat Shield
-
149707900183 Heat ShieldHeat Shield
-
150707900184 Heat ShieldHeat Shield
-
151707900192 DeflectorDeflector
-
153707900193 Front Side Dash PanelFront Side Dash Panel
-
154707900205 Acoustic FoamAcoustic Foam
-
155707900206 Acoustic FoamAcoustic Foam
-
156707900209 Acoustic FoamAcoustic Foam
-
157707900210 Acoustic FoamAcoustic Foam
-
158707900211 Acoustic FoamAcoustic Foam
-
159707900212 Acoustic FoamAcoustic Foam
-
160707900213 Acoustic FoamAcoustic Foam
-
161707900219 RH Rear DeflectorRH Rear Deflector
-
162707900220 LH Rear DeflectorLH Rear Deflector
-
163707900231 RH Lower Rear FloorRH Lower Rear Floor
-
164707900307 Acoustic FoamAcoustic Foam
-
166732610072 Push NutPush Nut
