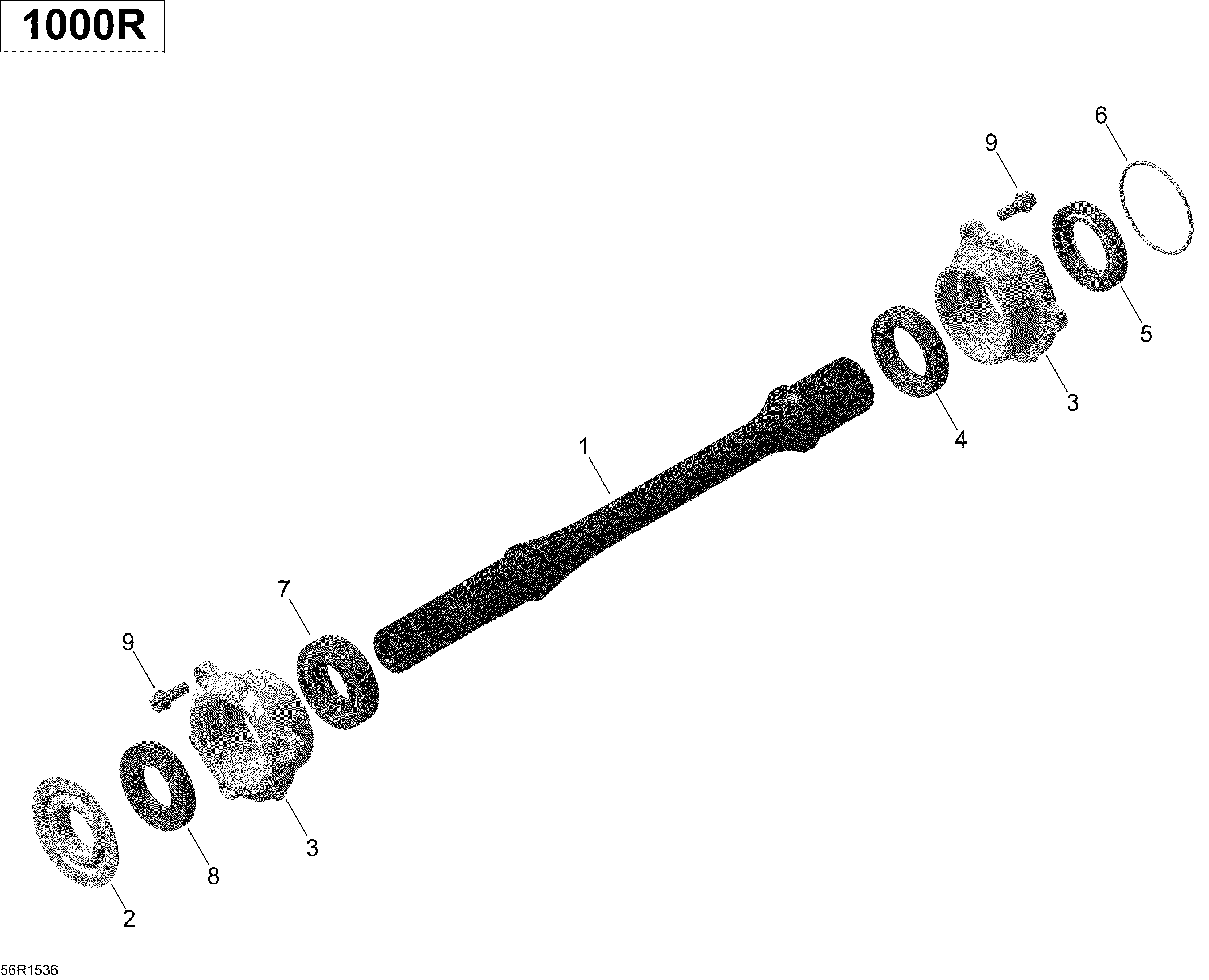

08- Drive Shaft Turbo _56R1536 для BRP Maverick 1000_XDS-DPS - 2015
-
№АртикулНазвание
-
1420620514 Drive ShaftDrive Shaft
-
2420626990 CoverCover
-
3420611221 Bearing CoverBearing Cover
-
4420632275 Ball BearingBall Bearing
-
5420850055 Oil SealOil Seal
-
6420230305 O-RingO-Ring
-
7420232341 Ball BearingBall Bearing
-
8420430588 Oil SealOil Seal
-
9420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
