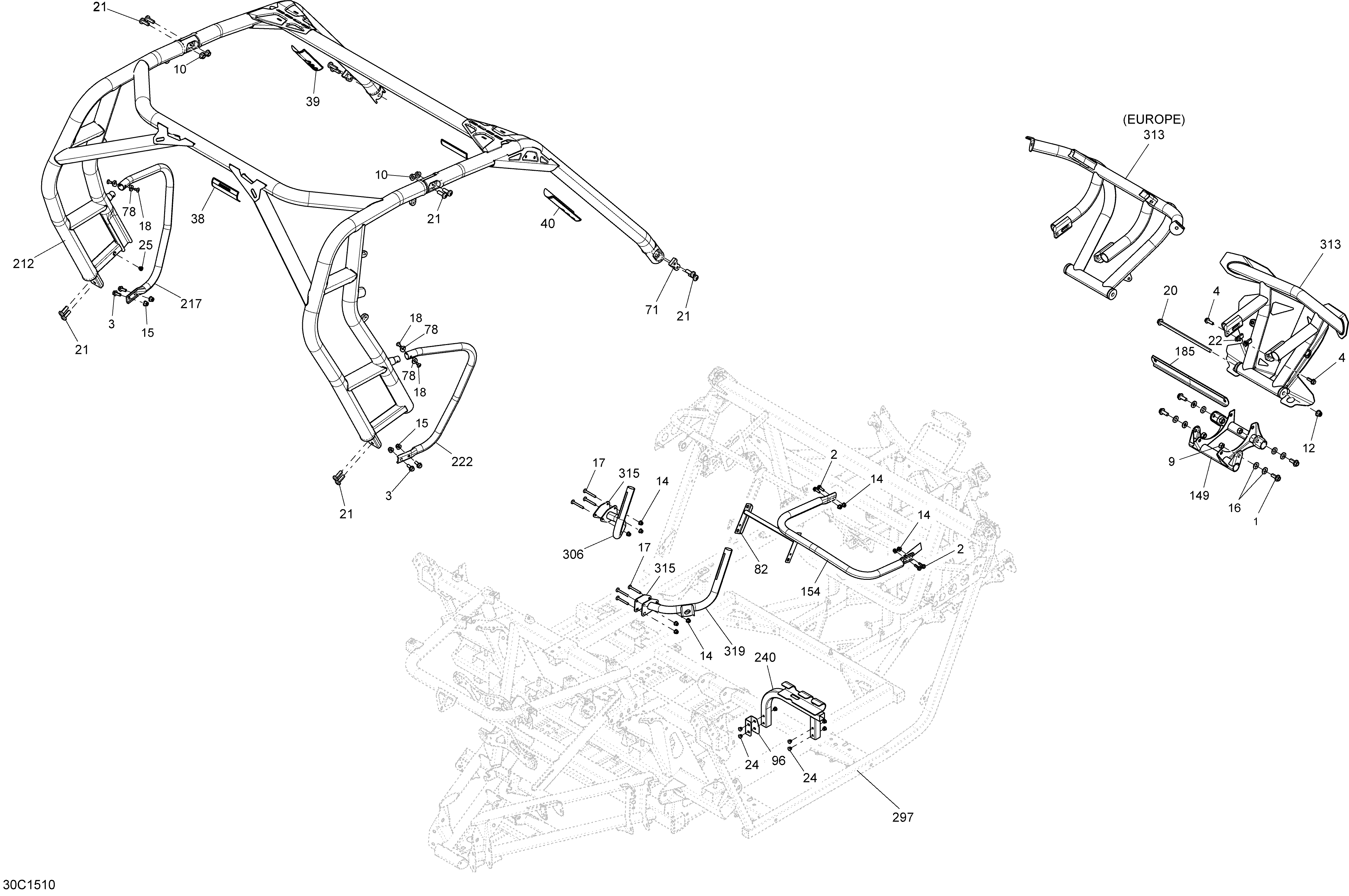

09- Frame _30C1510 для BRP Maverick 1000_XDS-DPS - 2015
-
№АртикулНазвание
-
1207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
2207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
4207382544 Hex. Flange ScrewHex. Flange Screw
-
9232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
10233101464 Hex. Elastic Flange Nut , M10 X 1.5Hex. Elastic Flange Nut , M10 X 1.5
-
12233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
14233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
15233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
16234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
17250000317 Torx Screw M6 X 50Torx Screw M6 X 50
-
18250000439 Torx Truss Screw M6 X 14Torx Truss Screw M6 X 14
-
20250000597 Hex. Flange ScrewHex. Flange Screw
-
21250000624 Screw Torx M10 X 30Screw Torx M10 X 30
-
22250100118 Panel Nut M8 X 1.25Panel Nut M8 X 1.25
-
24293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
25293450274 InsertInsert
-
38704903492 Warning LabelWarning Label
-
39704903679 Warning LabelWarning Label
-
40704903680 Warning LabelWarning Label
-
71705203415 Binding BlockBinding Block
-
78705202223 Offset WasherOffset Washer
-
82705203330 Reinforcement PanelReinforcement Panel
-
96705202602 Seat SupportSeat Support
-
149705203296 Differential SupportDifferential Support
-
154705203332 Black HandleBlack Handle
-
185705203454 Front Suspension LinkFront Suspension Link
-
212705204714 Black Cage Kit. Black Safety CageBlack Cage Kit. Black Safety Cage
-
212705204716 Manta Green Cage Kit. Manta Green Safety CageManta Green Cage Kit. Manta Green Safety Cage
-
217705204407 Green LH Side Protector TubeGreen LH Side Protector Tube
-
222705204408 Green RH Side Protector TubeGreen RH Side Protector Tube
-
297715002867 Black FrameBlack Frame
-
306705204253 Black Console Handle. MAVERICK TurboBlack Console Handle. MAVERICK Turbo
-
313705203685 Black Front Bumper. Model-EuropeBlack Front Bumper. Model-Europe
-
313705204266 Front Bumper Ass'y. Model-North America, InternationalFront Bumper Ass'y. Model-North America, International
-
315705204606 Steel PlateSteel Plate
-
319705204399 Black Console HandleBlack Console Handle
