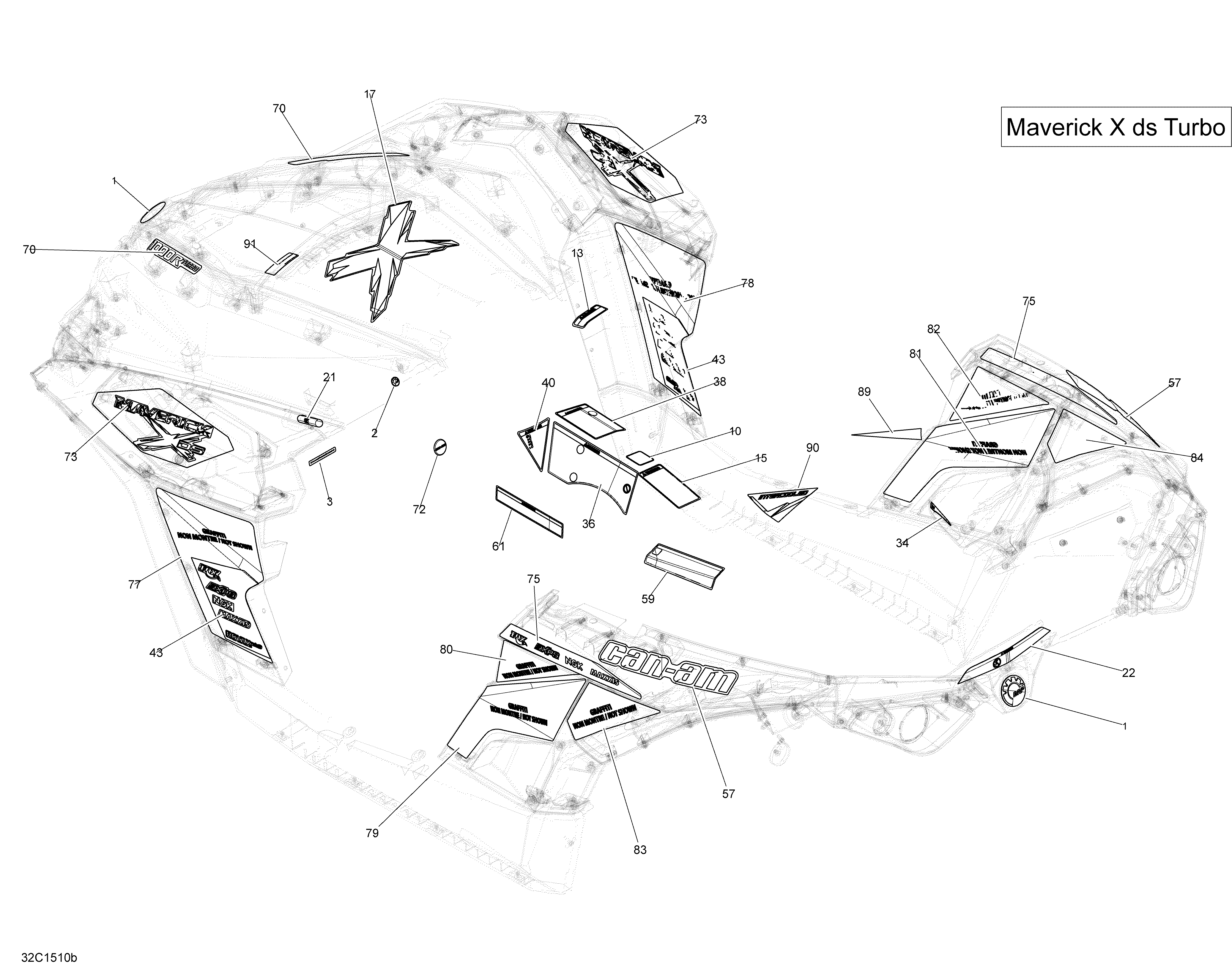

09- Decals Turbo_32C1510b для BRP Maverick 1000_XDS-DPS - 2015
-
№АртикулНазвание
-
1704904613 BRP Logo, 68 mmBRP Logo, 68 mm
-
2704904616 BRP Logo, 20mmBRP Logo, 20mm
-
3704901558 Decal, Dynamic Power SteeringDecal, Dynamic Power Steering
-
10704902407 Decal, Public Roads UseDecal, Public Roads Use
-
13704902434 Caution Decal, Maximum LoadCaution Decal, Maximum Load
-
15704905093 Warning Decal, Road Usage. EuropeWarning Decal, Road Usage. Europe
-
17704904272 Decal X (Green)Decal X (Green)
-
21704903434 Notice Decal, SteeringNotice Decal, Steering
-
22704903471 Warning Decal, Luggage RackWarning Decal, Luggage Rack
-
34704903601 Notice Decal, Fuel-OctaneNotice Decal, Fuel-Octane
-
36704904835 Warning Decal, Death And Injuries. Model-1000R TurboWarning Decal, Death And Injuries. Model-1000R Turbo
-
38704903676 Warning Decal, PassengerWarning Decal, Passenger
-
40704903692 Warning Decal, Shift LeverWarning Decal, Shift Lever
-
43704903770 RH Sponsor Decal. Model-Black-White-GreenRH Sponsor Decal. Model-Black-White-Green
-
43704904569 RH Sponsor Decal. Model-Black Carbon North America, InternationalRH Sponsor Decal. Model-Black Carbon North America, International
-
43704905129 RH Sponsor Decal. Model-Black Carbon EuropeRH Sponsor Decal. Model-Black Carbon Europe
-
43704905129 LH Sponsor Decal. Model-Black Carbon EuropeLH Sponsor Decal. Model-Black Carbon Europe
-
43704903771 LH Sponsor Decal. Model-Black-White-GreenLH Sponsor Decal. Model-Black-White-Green
-
43704904570 LH Sponsor Decal. Model-Black Carbon North America, InternationalLH Sponsor Decal. Model-Black Carbon North America, International
-
57704903887 CAN-AM Decal. Model-Black-White-GreenCAN-AM Decal. Model-Black-White-Green
-
57704904567 CAN-AM Decal. Model-White-Grey-GreenCAN-AM Decal. Model-White-Grey-Green
-
57704904568 CAN-AM Decal. Model-Black CarbonCAN-AM Decal. Model-Black Carbon
-
59704903808 Decal, MultilingualDecal, Multilingual
-
61704904841 Warning Decal, Tire Pressure. Model- North America, InternationalWarning Decal, Tire Pressure. Model- North America, International
-
61704904841 Warning Decal, Tire Pressure. Model- EuropeWarning Decal, Tire Pressure. Model- Europe
-
70704904563 Hood Decal, 1000R Turbo. Model-White-Grey-GreenHood Decal, 1000R Turbo. Model-White-Grey-Green
-
70704904564 Hood Decal, 1000R Turbo. Model-Black CarbonHood Decal, 1000R Turbo. Model-Black Carbon
-
72704904274 CAN-AM LogoCAN-AM Logo
-
73704904277 Side Decal Maverick X ds. Model-Black-White-GreenSide Decal Maverick X ds. Model-Black-White-Green
-
73704904277 Side Decal Maverick X ds. Model-White-Grey-GreenSide Decal Maverick X ds. Model-White-Grey-Green
-
73704904565 Side Decal Maverick X ds. Model-Black CarbonSide Decal Maverick X ds. Model-Black Carbon
-
75704904282 RH Sponsor Decal. Model-White-Grey-GreenRH Sponsor Decal. Model-White-Grey-Green
-
75704904283 LH Sponsor Decal. Model-White-Grey-GreenLH Sponsor Decal. Model-White-Grey-Green
-
77704904571 LH Lateral Label. Model-White-Grey-GreenLH Lateral Label. Model-White-Grey-Green
-
78704904572 RH Lateral Label. Model-White-Grey-GreenRH Lateral Label. Model-White-Grey-Green
-
79704904580 LH Lateral Label. Model-White-Grey-GreenLH Lateral Label. Model-White-Grey-Green
-
80704904582 LH Upper Lateral Label. Model-White-Grey-GreenLH Upper Lateral Label. Model-White-Grey-Green
-
81704904649 RH Lateral Label. Model-White-Grey-GreenRH Lateral Label. Model-White-Grey-Green
-
82704904650 RH Upper Lateral Label. Model-White-Grey-GreenRH Upper Lateral Label. Model-White-Grey-Green
-
83704904651 LH Lateral Rear Label. Model-White-Grey-GreenLH Lateral Rear Label. Model-White-Grey-Green
-
84704904652 RH Lateral Rear Label. Model-White-Grey-GreenRH Lateral Rear Label. Model-White-Grey-Green
-
89704904804 RH Intercooled Decal. Model-White-Grey-GreenRH Intercooled Decal. Model-White-Grey-Green
-
89704904804 RH Intercooled Decal. Model-Black CarbonRH Intercooled Decal. Model-Black Carbon
-
90704904805 LH Intercooled Decal. Model-White-Grey-GreenLH Intercooled Decal. Model-White-Grey-Green
-
90704904805 LH Intercooled Decal. Model-Black CarbonLH Intercooled Decal. Model-Black Carbon
-
91707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
