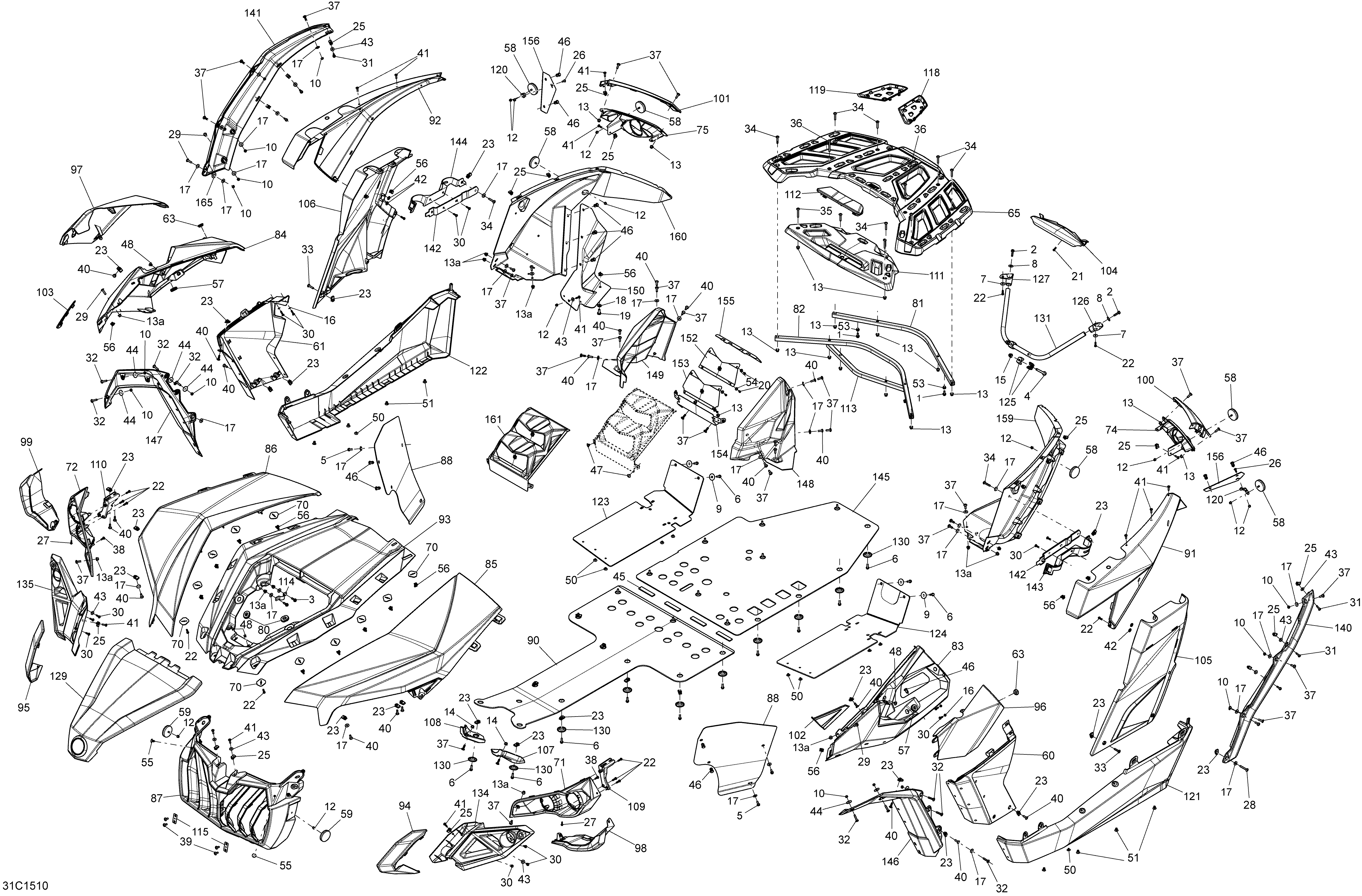

09- Body And Accessories _31C1510 для BRP Maverick 1000_XDS-DPS - 2015
-
№АртикулНазвание
-
1207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
3207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
5210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
7224060201 Flat WasherFlat Washer
-
8224061201 Flat WasherFlat Washer
-
9224081301 Flat WasherFlat Washer
-
10232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
11233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
12233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
13233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
13a233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
15233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
16234051410 Flat Washer M5Flat Washer M5
-
17234062670 Flat Washer, StainlessFlat Washer, Stainless
-
18234281474 Conical Spring Washer M8Conical Spring Washer M8
-
19236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
20241140060 Screw K40 X 10Screw K40 X 10
-
21241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
22241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
23250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
25250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
26250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
27250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
28250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
29250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
30250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
30250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
31250000300 Torx Screw M5 X 25Torx Screw M5 X 25
-
32250000371 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
33250000398 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
34250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
35250000647 Torx Screw M6 X 45Torx Screw M6 X 45
-
36250000648 Torx Screw M6 X 60Torx Screw M6 X 60
-
37250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
38250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
39250000721 Torx ScrewTorx Screw
-
40250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
41250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
42250100129 Push NutPush Nut
-
43250200025 Washer M5Washer M5
-
45291001932 PadPad
-
46293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
47293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
48293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
49293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
53293450274 InsertInsert
-
54391301000 WasherWasher
-
55414644300 DartDart
-
56517302785 ClipClip
-
57517303756 GrommetGrommet
-
58705002408 Red ReflectorRed Reflector
-
59705002409 Amber ReflectorAmber Reflector
-
60705007358 White LH Front Lateral PannelWhite LH Front Lateral Pannel
-
60705007358 White LH Front Lateral PannelWhite LH Front Lateral Pannel
-
60705008488 Timeless Black Met LH Front Lat PannelTimeless Black Met LH Front Lat Pannel
-
61705007359 White RH Front Lateral PannelWhite RH Front Lateral Pannel
-
61705007359 White RH Front Lateral PannelWhite RH Front Lateral Pannel
-
61705008489 Timeless Black Met RH Front Lat PannelTimeless Black Met RH Front Lat Pannel
-
63705003264 GrommetGrommet
-
65715002367 Rear Rack KITRear Rack KIT
-
70705003841 Support PlateSupport Plate
-
71705004508 LH Front FaciaLH Front Facia
-
72705004509 RH Front FaciaRH Front Facia
-
74705004731 LH Rear FaciaLH Rear Facia
-
74705004927 LH Rear FaciaLH Rear Facia
-
75705004732 RH Rear FaciaRH Rear Facia
-
75705004926 RH Rear FaciaRH Rear Facia
-
80705005156 Oval WasherOval Washer
-
81705005469 TubeTube
-
82705005470 TubeTube
-
83705006558 Black LH Front FenderBlack LH Front Fender
-
83705008534 Black Carbon Fiber LH Front FenderBlack Carbon Fiber LH Front Fender
-
83705008941 Quarry Gray LH Front FenderQuarry Gray LH Front Fender
-
84705006559 Black RH Front FenderBlack RH Front Fender
-
84705008535 Black Carbon Fiber RH Front FenderBlack Carbon Fiber RH Front Fender
-
84705008942 Quarry Gray RH Front FenderQuarry Gray RH Front Fender
-
85705008538 Timeless Black LH Fixe HoodTimeless Black LH Fixe Hood
-
85705008945 Deep Black LH Fixe HoodDeep Black LH Fixe Hood
-
85705008947 Quarry gray LH Fixe HoodQuarry gray LH Fixe Hood
-
86705008539 Timeless Black RH Fixe HoodTimeless Black RH Fixe Hood
-
86705008946 Deep Black RH Fixe HoodDeep Black RH Fixe Hood
-
86705008948 Quarry Gray RH Fixe HoodQuarry Gray RH Fixe Hood
-
87705005784 Front Radiator GrillFront Radiator Grill
-
88705007827 Inner FenderInner Fender
-
90705005798 Front Skid PlateFront Skid Plate
-
91705008540 Black Carbon Fiber LH Rear FenderBlack Carbon Fiber LH Rear Fender
-
91705008949 Quarry Gray LH Rear FenderQuarry Gray LH Rear Fender
-
91705009035 Black LH Rear FenderBlack LH Rear Fender
-
92705008541 Black Carbon Fiber RH Rear FenderBlack Carbon Fiber RH Rear Fender
-
92705008951 Quarry Gray RH Rear FenderQuarry Gray RH Rear Fender
-
92705009036 Black RH Rear FenderBlack RH Rear Fender
-
93705005821 Fixe Center HoodFixe Center Hood
-
94705008613 Manta Green LH Bumper CapManta Green LH Bumper Cap
-
95705008614 Manta Green RH Bumper CapManta Green RH Bumper Cap
-
96705007983 White LH Cover Front FenderWhite LH Cover Front Fender
-
96705007983 White LH Cover Front FenderWhite LH Cover Front Fender
-
96705008536 Black carbon Fiber LH Cover Front FenderBlack carbon Fiber LH Cover Front Fender
-
97705007984 White RH Cover Front FenderWhite RH Cover Front Fender
-
97705007984 White RH Cover Front FenderWhite RH Cover Front Fender
-
97705008537 Black Carbon Fiber RH Cover Front FenderBlack Carbon Fiber RH Cover Front Fender
-
98705008611 Manta Green LH Front Fender TrimManta Green LH Front Fender Trim
-
98705008611 Manta Green LH Front Fender TrimManta Green LH Front Fender Trim
-
98705008611 Manta Green LH Front Fender TrimManta Green LH Front Fender Trim
-
99705008612 Manta Green RH Front Fender TrimManta Green RH Front Fender Trim
-
99705008612 Manta Green RH Front Fender TrimManta Green RH Front Fender Trim
-
99705008612 Manta Green RH Front Fender TrimManta Green RH Front Fender Trim
-
100705006583 Black LH Rear Facia TrimBlack LH Rear Facia Trim
-
100705008542 Black Carbon Fiber LH TrimBlack Carbon Fiber LH Trim
-
100705008952 Quarry Gray LH TrimQuarry Gray LH Trim
-
101705006584 Black RH Rear Facia TrimBlack RH Rear Facia Trim
-
101705008543 Black Carbon Fiber RH TrimBlack Carbon Fiber RH Trim
-
101705008953 Quarry Gray RH TrimQuarry Gray RH Trim
-
102705005992 LH Front Facia TrimLH Front Facia Trim
-
103705005993 RH Front Facia TrimRH Front Facia Trim
-
104705005994 LOGO SupportLOGO Support
-
105705007362 White LH Rear Lateral PanelWhite LH Rear Lateral Panel
-
105705007362 White LH Rear Lateral PanelWhite LH Rear Lateral Panel
-
105705008492 Tmeless Black Met LH Rear Lateral PanelTmeless Black Met LH Rear Lateral Panel
-
106705007363 White RH Rear Lateral PanelWhite RH Rear Lateral Panel
-
106705007363 White RH Rear Lateral PanelWhite RH Rear Lateral Panel
-
106705008493 Tmeless Black Met RH Rear Lateral PanelTmeless Black Met RH Rear Lateral Panel
-
107705006038 LH Bumper Skid CapLH Bumper Skid Cap
-
108705006039 RH Bumper Skid CapRH Bumper Skid Cap
-
109705006078 LH Front Facia SupportLH Front Facia Support
-
110705006079 RH Front Facia SupportRH Front Facia Support
-
111705006128 Bagage Central RackBagage Central Rack
-
112705006132 Central Bagage Rack CapCentral Bagage Rack Cap
-
113705006279 Bagage Rack TubeBagage Rack Tube
-
114705006623 ClampClamp
-
115705006635 Radiator Grill BracketRadiator Grill Bracket
-
118705006713 LH Bagage Rack CoverLH Bagage Rack Cover
-
119705006714 RH Bagage Rack CoverRH Bagage Rack Cover
-
120705006828 Reflector SupportReflector Support
-
121705006991 LH Lateral Middle PanelLH Lateral Middle Panel
-
122705006992 RH Lateral Middle PanelRH Lateral Middle Panel
-
123705007038 Lateral Skid PlateLateral Skid Plate
-
123705007038 Lateral Skid PlateLateral Skid Plate
-
123705007038 Lateral Skid PlateLateral Skid Plate
-
124705009444 Skid PlateSkid Plate
-
124705009444 Skid PlateSkid Plate
-
125705007044 Rear Support Facia ClipRear Support Facia Clip
-
126705007045 LH Rear Facia SupportLH Rear Facia Support
-
127705007046 RH Rear Facia SupportRH Rear Facia Support
-
128705007047 Tube ConnectorTube Connector
-
129705007129 Black Carbon Fiber Removable HoodBlack Carbon Fiber Removable Hood
-
129705008186 Bright White Removable HoodBright White Removable Hood
-
129705008186 Bright White Removable HoodBright White Removable Hood
-
130705007171 CupCup
-
131705007299 Body TubeBody Tube
-
134705007499 LH Bumper GrillLH Bumper Grill
-
135705007500 RH Bumper GrillRH Bumper Grill
-
140705007637 LH Rear DeflectorLH Rear Deflector
-
141705007638 RH Rear DeflectorRH Rear Deflector
-
142705007917 Support PlateSupport Plate
-
143705007918 LH Rear Fender SupportLH Rear Fender Support
-
144705007919 RH Rear Fender SupportRH Rear Fender Support
-
145705008958 Skid PlateSkid Plate
-
146705008988 LH Front DeflectorLH Front Deflector
-
147705008989 RH Front DeflectorRH Front Deflector
-
148705009046 LH Intercooler CoverLH Intercooler Cover
-
148705009046 LH Intercooler CoverLH Intercooler Cover
-
149705009047 RH Intercooler CoverRH Intercooler Cover
-
149705009047 RH Intercooler CoverRH Intercooler Cover
-
150705009143 DeflectorDeflector
-
152705009260 Upper GrillUpper Grill
-
152705009260 Upper GrillUpper Grill
-
152705009260 Upper GrillUpper Grill
-
153705009261 Lower GrillLower Grill
-
153705009261 Lower GrillLower Grill
-
153705009261 Lower GrillLower Grill
-
154705009262 Air Duct SupportAir Duct Support
-
154705009262 Air Duct SupportAir Duct Support
-
155705009343 Rear SupportRear Support
-
155705009343 Rear SupportRear Support
-
156705009408 SupportSupport
-
159705009445 Inner FenderInner Fender
-
159705009445 Inner FenderInner Fender
-
159705009548 LH Inner FenderLH Inner Fender
-
160705009549 RH Inner FenderRH Inner Fender
-
161705204561 Air Scoop KitAir Scoop Kit
-
161705204561 Air Scoop KitAir Scoop Kit
-
165250200086 Flat WasherFlat Washer
Все узлы модели:
- 00- Model Numbers _00C1510
- 01- Cooling System _10C1510
- 01- Crankcase _01R1512
- 01- Crankcase Turbo _01R1536
- 01- Crankshaft, Piston And Cylinder _02R1512
- 01- Crankshaft, Piston And Cylinder Turbo _02R1536
- 01- Cylinder Head, Front _03R1512a
- 01- Cylinder Head, Front Turbo _03R1536a
- 01- Cylinder Head, Rear _03R1512b
- 01- Cylinder Head, Rear Turbo _03R1536b
- 01- Engine _08C1510
- 01- Engine _Turbo_08C1510a
- 01- Engine Cooling _27R1512
- 01- Engine Cooling Turbo _27R1536
- 01- Engine Lubrication _54R1512
- 01- Engine Lubrication Turbo _54R1536
- 01- Exhaust System _21C1511a
- 01- Exhaust System _Turbo_21C1510b
- 01- Turbocharger _38R1536
- 02- Air Intake _35C1510
- 02- Air Intake _Turbo_35C1510a
- 02- Air Intake Manifold And Throttle Body _18R1512
- 02- Air Intake Manifold And Throttle Body Turbo _18R1536
- 02- Fuel System _14C1510
- 03- Magneto And Electric Starter _04R1512
- 03- Magneto And Electric Starter Turbo _04R1536
- 05- Gear Box 1 Turbo_45R1536a
- 05- Gear Box 1_45R1512a
- 05- Gear Box 2 Turbo_45R1536b
- 05- Gear Box 2_45R1512b
- 05- Transmission _19R1512
- 05- Transmission Turbo _19R1536
- 05- Transmission-Driven Pulley Turbo _19R1536a
- 06- Brakes _22C1510
- 07- Drive System, Front _12C1510a
- 07- Drive System, Front Differential_12C1510b
- 07- Front Suspension _24C1510
- 07- Steering _23C1510
- 08- Drive Shaft _56R1512
- 08- Drive Shaft Turbo _56R1536
- 08- Drive System, Rear _13C1510a
- 08- Drive System, Rear _Differential_13C1510b
- 08- Rear Suspension _26C1510
- • 09- Body And Accessories _31C1510
- 09- Cab Interior _Console_77C1510c
- 09- Cab Interior _Driver Side_77C1510a
- 09- Cab Interior _Passenger Side_77C1510b
- 09- Decals _32C1510a
- 09- Decals Turbo_32C1510b
- 09- Frame _30C1510
- 09- Mirrors And Tools _67C1510
- 09- Seat _29S1510
- 10- Electrical Harness Main_15C1510
- 10- Electrical Harness Turbo_15C1510b
- 10- Electrical System _20C1510
- 10- Engine Harness And Electronic Module Maverick Turbo_51R1536
- 10- Engine Harness And Electronic Module Maverick_51R1512
