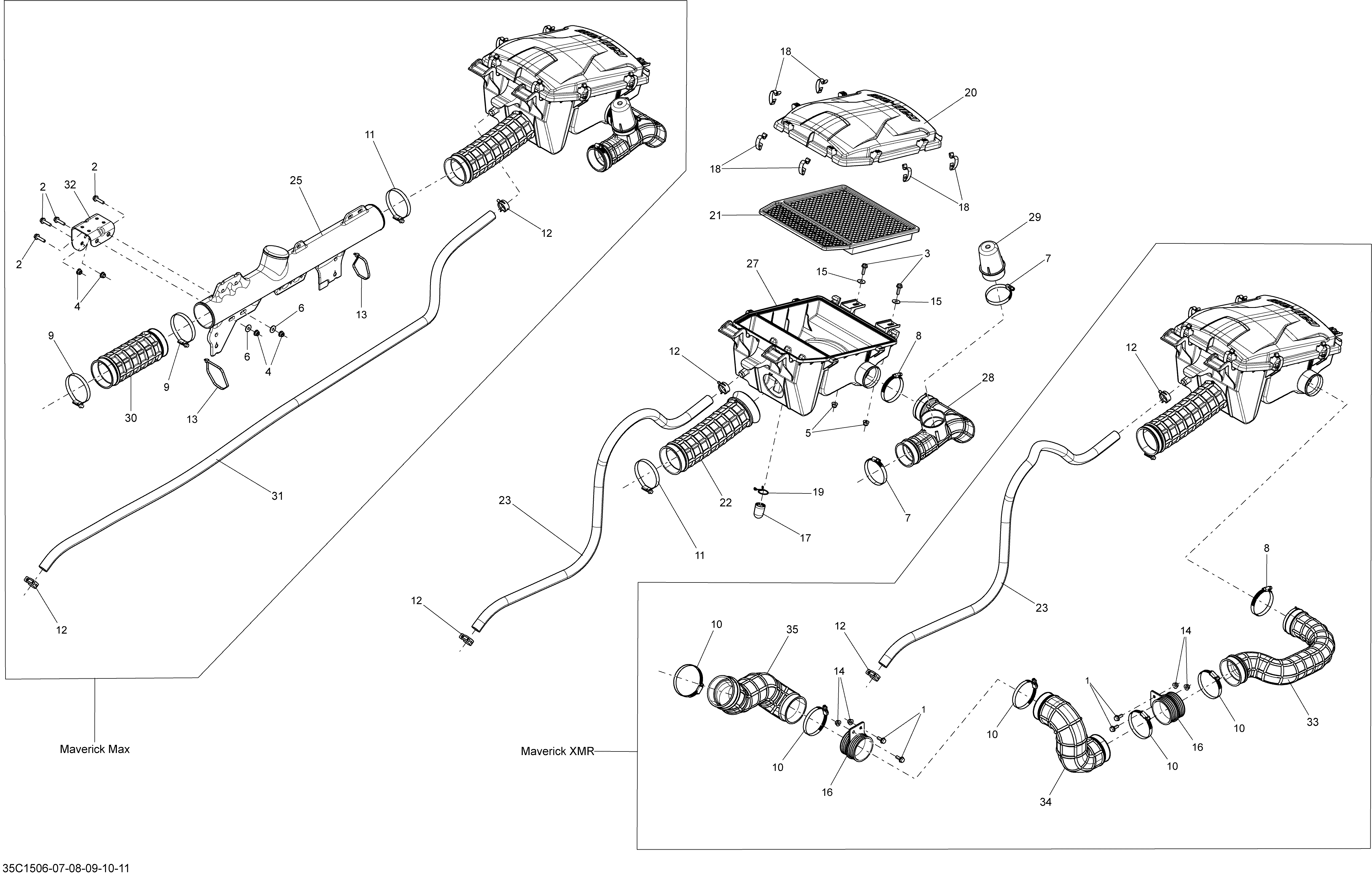

02- Air Intake _35C1508 для BRP Maverick 1000_XXC - 2015
-
№АртикулНазвание
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7293650079 Norma Clamp. <>P-XMRNorma Clamp. <>P-XMR
-
8293650079 Norma ClampNorma Clamp
-
11293650091 Norma ClampNorma Clamp
-
12293650213 Norma Spring ClampNorma Spring Clamp
-
15250200082 Flat WasherFlat Washer
-
17707800080 Drain TubeDrain Tube
-
18707800249 Cover BracketCover Bracket
-
19707800278 Retainer ClipRetainer Clip
-
20707800326 Air Intake Silencer CoverAir Intake Silencer Cover
-
21707800327 Air FilterAir Filter
-
22707800329 Intake AdaptorIntake Adaptor
-
23707800411 Hose 15.88 mm. MAVERICKHose 15.88 mm. MAVERICK
-
27707800517 Air Intake Silencer BaseAir Intake Silencer Base
-
28707800532 Intake Adaptor. <>P-XMRIntake Adaptor. <>P-XMR
-
29707800533 Intake Adaptor Tank. <>P-XMRIntake Adaptor Tank. <>P-XMR
