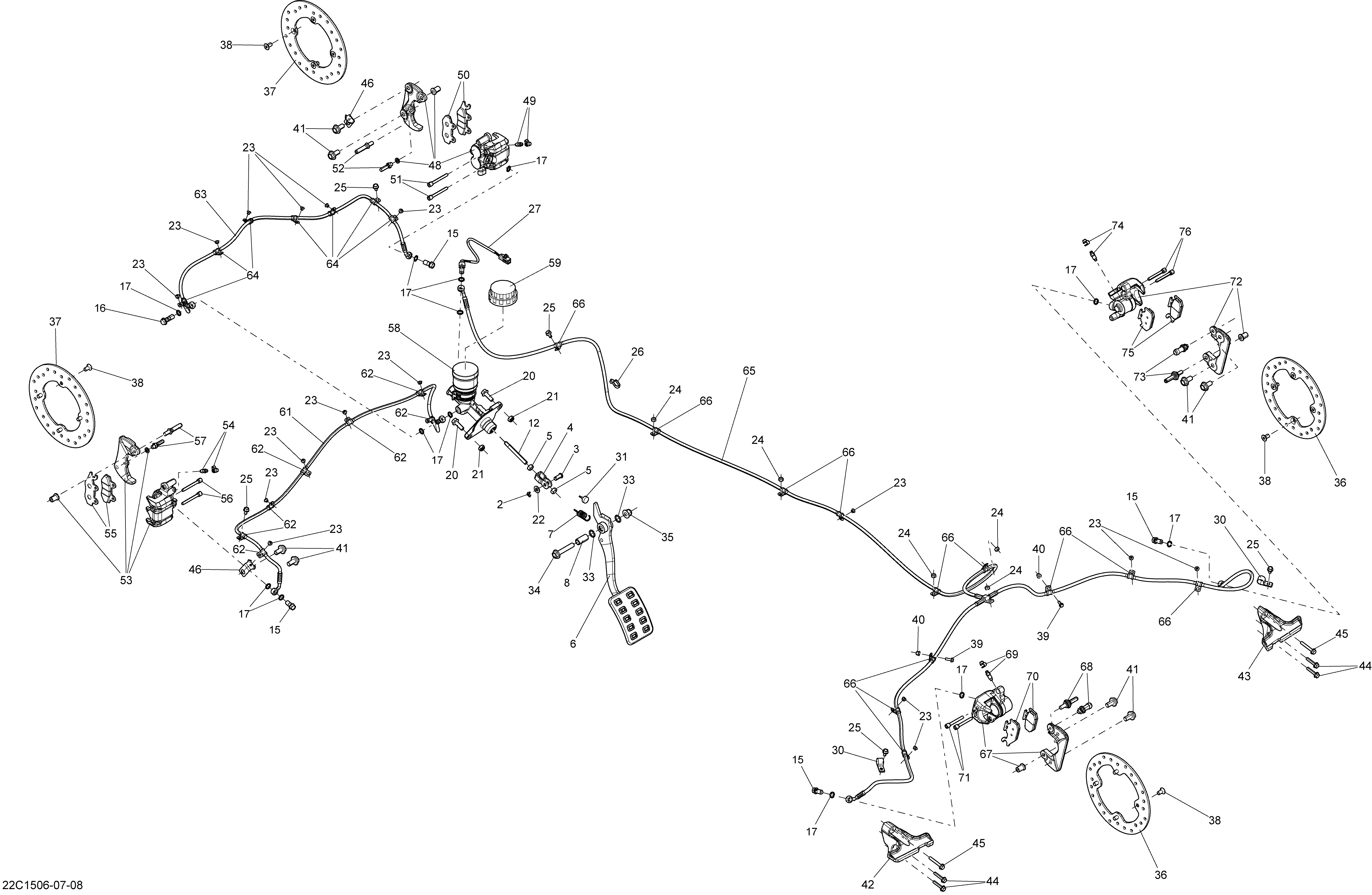

06- Brakes _22C1508 для BRP Maverick 1000_XXC - 2015
-
№АртикулНазвание
-
2371800700 Cotter PinCotter Pin
-
3250400058 PinPin
-
4705601142 YokeYoke
-
5232081414 Hex. Nut M8Hex. Nut M8
-
6705600724 Brake PedalBrake Pedal
-
7705600792 Brake Pedal SpringBrake Pedal Spring
-
8705600815 Inner SpacerInner Spacer
-
12705600833 Master Cylinder RodMaster Cylinder Rod
-
15705600609 Banjo BoltBanjo Bolt
-
16705600958 Banjo BoltBanjo Bolt
-
17705600310 Copper WasherCopper Washer
-
20207682534 Hex. Flanged ScrewHex. Flanged Screw
-
21232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
22234081430 Flat Washer M8Flat Washer M8
-
23390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
24232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
25210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
26414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
27705601250 Brake SwitchBrake Switch
-
30518321570 Open ClampOpen Clamp
-
31708000759 Rubber StopperRubber Stopper
-
33293300144 O-RingO-Ring
-
34207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
35233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
36705600999 Disc BrakeDisc Brake
-
37705601178 Dics BrakeDics Brake
-
38235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
39210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
40233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
41250000601 Hex. Flanged Screw M10 X 20, Scotch GripHex. Flanged Screw M10 X 20, Scotch Grip
-
42705601403 LH DeflectorLH Deflector
-
43705601404 RH DeflectorRH Deflector
-
44207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
45207564044 Hex. Flanged Screw M6 X 40, Scotch GripHex. Flanged Screw M6 X 40, Scotch Grip
-
46705601337 BracketBracket
-
48705600678 RH Caliper. Includes 48 to 52RH Caliper. Includes 48 to 52
-
49705600080 Bleeding ScrewBleeding Screw
-
50715500336 Brake Pad KitBrake Pad Kit
-
51715500337 Pin KitPin Kit
-
52715500383 Spring Boot Bolt KitSpring Boot Bolt Kit
-
53705600679 LH Caliper. Includes 53 to 57LH Caliper. Includes 53 to 57
-
54705600080 Bleeding ScrewBleeding Screw
-
55715500335 Brake Pad KitBrake Pad Kit
-
56715500337 Pin KitPin Kit
-
57715500383 Spring Boot Bolt KitSpring Boot Bolt Kit
-
58705600681 Master Cylinder Ass'y. Includes 58 to 59Master Cylinder Ass'y. Includes 58 to 59
-
59715500332 Diaphragm Cap KitDiaphragm Cap Kit
-
61705601219 LH Front Flexible Hose Ass'y. Includes 61 to 62LH Front Flexible Hose Ass'y. Includes 61 to 62
-
62715900250 Hose ClipHose Clip
-
63705601220 RH Front Flexible Hose Ass'y. Includes 63 to 64RH Front Flexible Hose Ass'y. Includes 63 to 64
-
64715900250 Hose ClipHose Clip
-
65705601145 Rear Flexible Hose. Includes 65 to 66Rear Flexible Hose. Includes 65 to 66
-
66715900250 Hose ClipHose Clip
-
67705601089 LH Caliper Ass'y. Includes 67 to 71LH Caliper Ass'y. Includes 67 to 71
-
68705601146 Boot And Spring KitBoot And Spring Kit
-
69705600080 Bleeding ScrewBleeding Screw
-
70705600398 LH Brake Pad KitLH Brake Pad Kit
-
71705600081 Pin KitPin Kit
-
72705601090 RH Caliper Ass'y. Includes 72 to 76RH Caliper Ass'y. Includes 72 to 76
-
73705601146 Boot And Spring KitBoot And Spring Kit
-
74705600080 Bleeding ScrewBleeding Screw
-
75705601147 RH Brake Pad KitRH Brake Pad Kit
-
76705600081 Pin KitPin Kit
