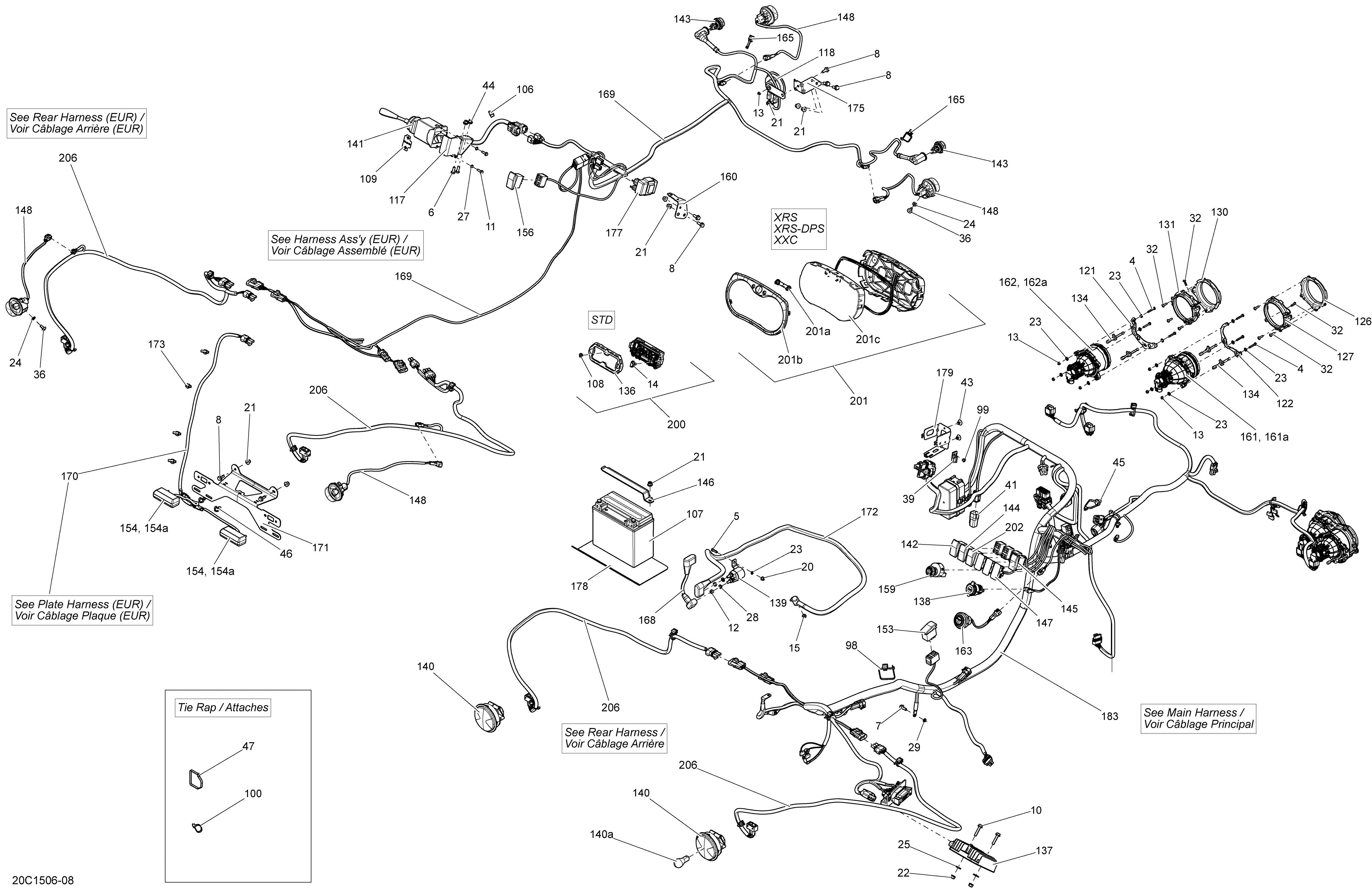

10- Electrical System _20C1508 для BRP Maverick 1000_XXC - 2015
-
№АртикулНазвание
-
4207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
5207151644 Hex. Screw M5 X 16Hex. Screw M5 X 16
-
6207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
11210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
12232061600 Hex. Nut M6Hex. Nut M6
-
13232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
14715900265 ButtonButton
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
20233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
23234051410 Flat Washer M5Flat Washer M5
-
24234061410 Flat Washer 6 mmFlat Washer 6 mm
-
25234062670 Flat WasherFlat Washer
-
27234151401 Lock Washer 5 mmLock Washer 5 mm
-
28234161601 Lock Washer Helical M6Lock Washer Helical M6
-
29234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
32250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
36250000439 Torx Truss Screw M6 X 14Torx Truss Screw M6 X 14
-
39270000141 ClipClip
-
41278002704 Diagnostic ConnectorDiagnostic Connector
-
43293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
44293450274 InsertInsert
-
45293730018 Mount DartMount Dart
-
46293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
47293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
98293750063 Clip Tie-RapClip Tie-Rap
-
99390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
100414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
106414227300 ClipClip
-
107410301203 Lead Battery 18 AmperesLead Battery 18 Amperes
-
108704901270 BRP Logo, 13 mmBRP Logo, 13 mm
-
109704902614 Flasher DecalFlasher Decal
-
117709400810 Flasher Arm SupportFlasher Arm Support
-
118710000983 HornHorn
-
121710001115 RH High Light SupportRH High Light Support
-
121710001036 LH High Light SupportLH High Light Support
-
122710001094 RH Low Light SupportRH Low Light Support
-
122710001037 LH Low Light SupportLH Low Light Support
-
126710001081 RH Low Front HousingRH Low Front Housing
-
126710001083 LH Low Front HousingLH Low Front Housing
-
127710001082 RH Low Rear HousingRH Low Rear Housing
-
127710001084 LH Low Rear HousingLH Low Rear Housing
-
130710001085 RH High Front HousingRH High Front Housing
-
130710001087 LH High Front HousingLH High Front Housing
-
131710001086 RH High Rear HousingRH High Rear Housing
-
131710001088 LH High Rear HousingLH High Rear Housing
-
134710001147 Setting ScrewSetting Screw
-
136710001183 Trim Ring Ass'yTrim Ring Ass'y
-
137710001191 Voltage RegulatorVoltage Regulator
-
138710001248 Outlet DCOutlet DC
-
139710001364 Starter RelayStarter Relay
-
140710001645 Tail LightTail Light
-
140a520000758 BulbBulb
-
141710001721 Turn SignalTurn Signal
-
142710001725 Hi/Low SwitchHi/Low Switch
-
143710001726 Day LightDay Light
-
144710001737 SwitchSwitch
-
145710001781 Switch DPSSwitch DPS
-
146710001916 Battery HolderBattery Holder
-
147710001999 Plug CarlingPlug Carling
-
148710002047 FlasherFlasher
-
153710002053 Switch, Over RideSwitch, Over Ride
-
154710002055 License LightLicense Light
-
154a219800128 BulbBulb
-
156710002076 SwitchSwitch
-
159710003847 Ignition SwitchIgnition Switch
-
160710002408 SupportSupport
-
161710002524 Low Beam Ass'yLow Beam Ass'y
-
161a415129249 Halogen BulbHalogen Bulb
-
162710002525 High Beam Ass'yHigh Beam Ass'y
-
162a415129249 Halogen BulbHalogen Bulb
-
163710002594 Engine START ButtonEngine START Button
-
165710002896 Tie-Rap ClipTie-Rap Clip
-
168710003123 Positive CablePositive Cable
-
169710003127 Harness Ass'yHarness Ass'y
-
170710003128 Harness Ass'yHarness Ass'y
-
171710003150 Light SupportLight Support
-
172710003151 Positive CablePositive Cable
-
173710003168 Tie-RapTie-Rap
-
175710003170 SupportSupport
-
177710003239 Flasher UnitFlasher Unit
-
178710003265 Heat DeflectorHeat Deflector
-
179710003335 Fuse HolderFuse Holder
-
183710004095 Wiring Harness AssemblyWiring Harness Assembly
-
200710003924 Multifunction SpeedometerMultifunction Speedometer
-
201710003928 SpeedometerSpeedometer
-
201a415129355 Speedometer ButtonSpeedometer Button
-
201b415129348 Gauge RingGauge Ring
-
201c415129349 LensLens
-
202710003541 Switch PPS SportSwitch PPS Sport
-
206710003680 Rear HarnessRear Harness
-
206710003681 Rear Harness. EuropeRear Harness. Europe
