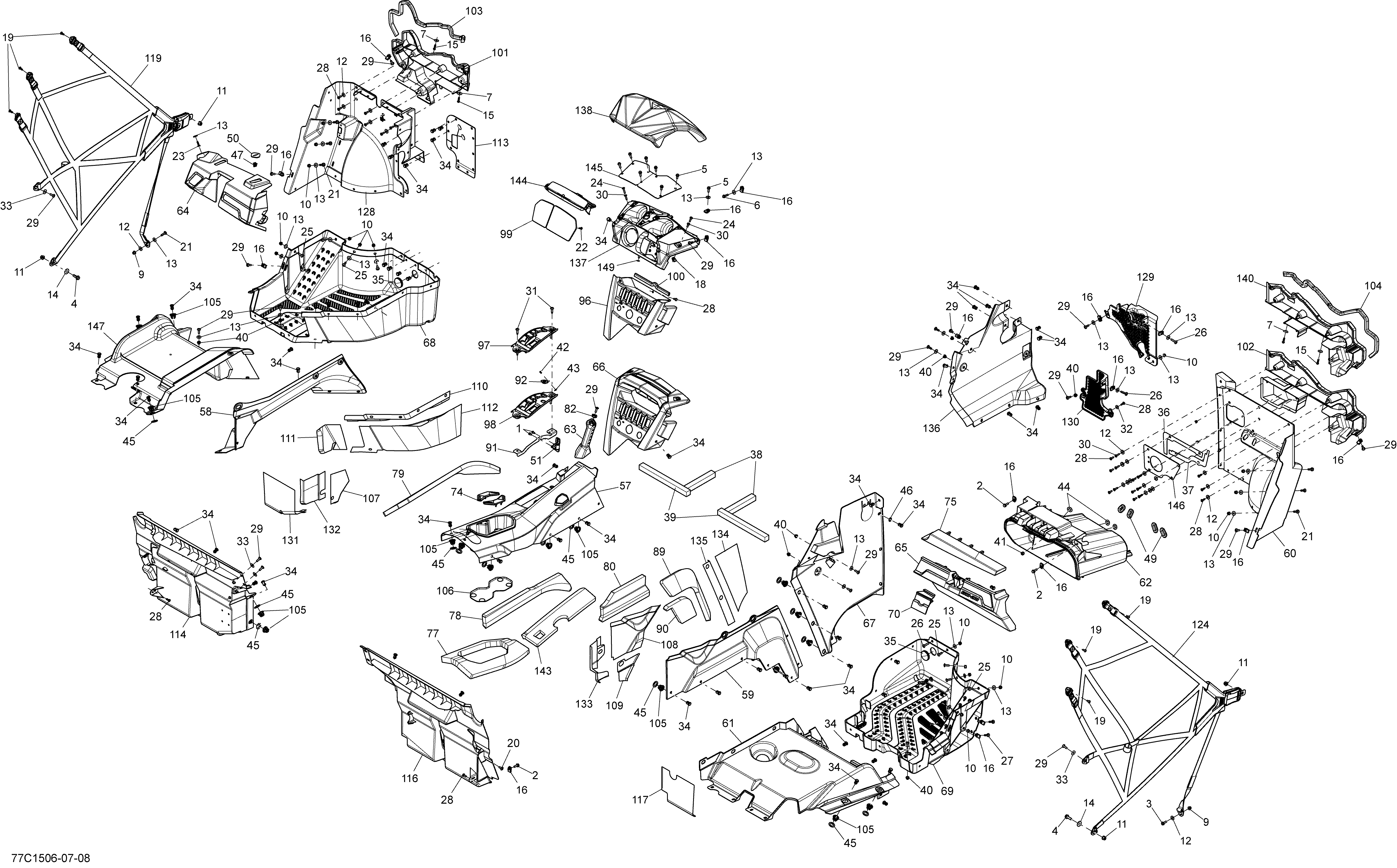

09- Cab Interior _77C1508 для BRP Maverick 1000_XXC - 2015
-
№АртикулНазвание
-
1205951046 Socket Head Screw M5 X 10. Model-EuropeSocket Head Screw M5 X 10. Model-Europe
-
2207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207682534 Hex. Flanged ScrewHex. Flanged Screw
-
7224060201 Flat WasherFlat Washer
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12234062410 Flat Washer 6 mmFlat Washer 6 mm
-
12234062410 Flat Washer 6 mmFlat Washer 6 mm
-
13234062670 Flat WasherFlat Washer
-
14234082410 Flat Washer 8 mmFlat Washer 8 mm
-
15241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
16250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
18250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
19250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
20250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
21250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
23250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
25250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
26250000398 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
27250000630 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
28250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
29250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
30250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
31250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
32250200025 Washer M5Washer M5
-
33250200040 Flat WasherFlat Washer
-
34293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
35293250242 Rubber CoverRubber Cover
-
36293250252 Upper SealUpper Seal
-
37293250253 Bottom SealBottom Seal
-
38293250319 Seal TraySeal Tray
-
39293250319 Seal TraySeal Tray
-
40293450274 InsertInsert
-
41293830005 Rubber BumperRubber Bumper
-
42390401400 Rivet. Model-EuropeRivet. Model-Europe
-
43391301000 Washer. Model-EuropeWasher. Model-Europe
-
44414859400 CapCap
-
45503189273 WasherWasher
-
46506151252 WasherWasher
-
47517302785 ClipClip
-
49705003668 Oblong GrommetOblong Grommet
-
50705003841 Support PlateSupport Plate
-
51707000666 Lock. Model-EuropeLock. Model-Europe
-
57707900000 Central Console Ass'yCentral Console Ass'y
-
57715002190 Central Console Ass'y. Model-North America, InternationalCentral Console Ass'y. Model-North America, International
-
57715002191 Central Console Ass'y. Model-EuropeCentral Console Ass'y. Model-Europe
-
58707900001 LH Side ConsoleLH Side Console
-
59707900002 RH Side ConsoleRH Side Console
-
60707900004 RH Front FloorRH Front Floor
-
61707900006 RH Under Seat PlateRH Under Seat Plate
-
62707900009 Storage BinStorage Bin
-
63707900011 Passenger HandlePassenger Handle
-
64715001250 Dashboard Ass'yDashboard Ass'y
-
65707900221 Luggage Cover KitLuggage Cover Kit
-
66715002178 Central Dashboard Ass'yCentral Dashboard Ass'y
-
67707900021 RH Fixe Side ConsoleRH Fixe Side Console
-
68707900022 LH Lower FloorLH Lower Floor
-
69707900023 RH Lower FloorRH Lower Floor
-
70707900031 LatchLatch
-
74707900036 Cup RetainerCup Retainer
-
75707900038 Trim Glove BoxTrim Glove Box
-
75707900062 Trim Glove BoxTrim Glove Box
-
77707900042 Rear Central Console FoamRear Central Console Foam
-
78707900043 LH Upper Lateral Console FoamLH Upper Lateral Console Foam
-
79707900044 LH Lower Lateral Console FoamLH Lower Lateral Console Foam
-
80707900045 RH Lateral Console FoamRH Lateral Console Foam
-
82707900048 Connector TubeConnector Tube
-
89707900055 RH Lateral Console FoamRH Lateral Console Foam
-
90707900056 RH Lateral Console FoamRH Lateral Console Foam
-
91707900303 Lock Support. Model-EuropeLock Support. Model-Europe
-
92707900060 Cap. Model-EuropeCap. Model-Europe
-
97707900070 Lever Indicator. Model-North America, InternationalLever Indicator. Model-North America, International
-
98707900071 Lever Indicator. Model-EuropeLever Indicator. Model-Europe
-
101707900113 LH Floor SupportLH Floor Support
-
102707900114 RH Floor SupportRH Floor Support
-
103293200093 Neoprene SealNeoprene Seal
-
104293200093 Neoprene SealNeoprene Seal
-
105707900133 InsertInsert
-
106707900145 Heat SheetHeat Sheet
-
107707900146 Heat SheetHeat Sheet
-
108707900147 Heat SheetHeat Sheet
-
109707900148 Heat SheetHeat Sheet
-
110707900149 Heat SheetHeat Sheet
-
111707900150 Heat SheetHeat Sheet
-
112707900151 Heat SheetHeat Sheet
-
113707900204 DeflectorDeflector
-
114707900164 LH Rear DeflectorLH Rear Deflector
-
116707900166 RH Rear DeflectorRH Rear Deflector
-
117707900167 Heat ShieldHeat Shield
-
119707900171 LH Safety NetLH Safety Net
-
124707900172 RH Safety NetRH Safety Net
-
128707900175 LH Front Upper FloorLH Front Upper Floor
-
129707900178 GrillGrill
-
130707900180 GrillGrill
-
131707900182 Heat ShieldHeat Shield
-
132707900183 Heat ShieldHeat Shield
-
133707900184 Heat ShieldHeat Shield
-
134707900190 Heat SheetHeat Sheet
-
135707900191 Heat SheetHeat Sheet
-
136707900193 Front Side Dash PanelFront Side Dash Panel
-
143707900214 Front Central Console FoamFront Central Console Foam
-
147707900218 LH Under Seat PlateLH Under Seat Plate
