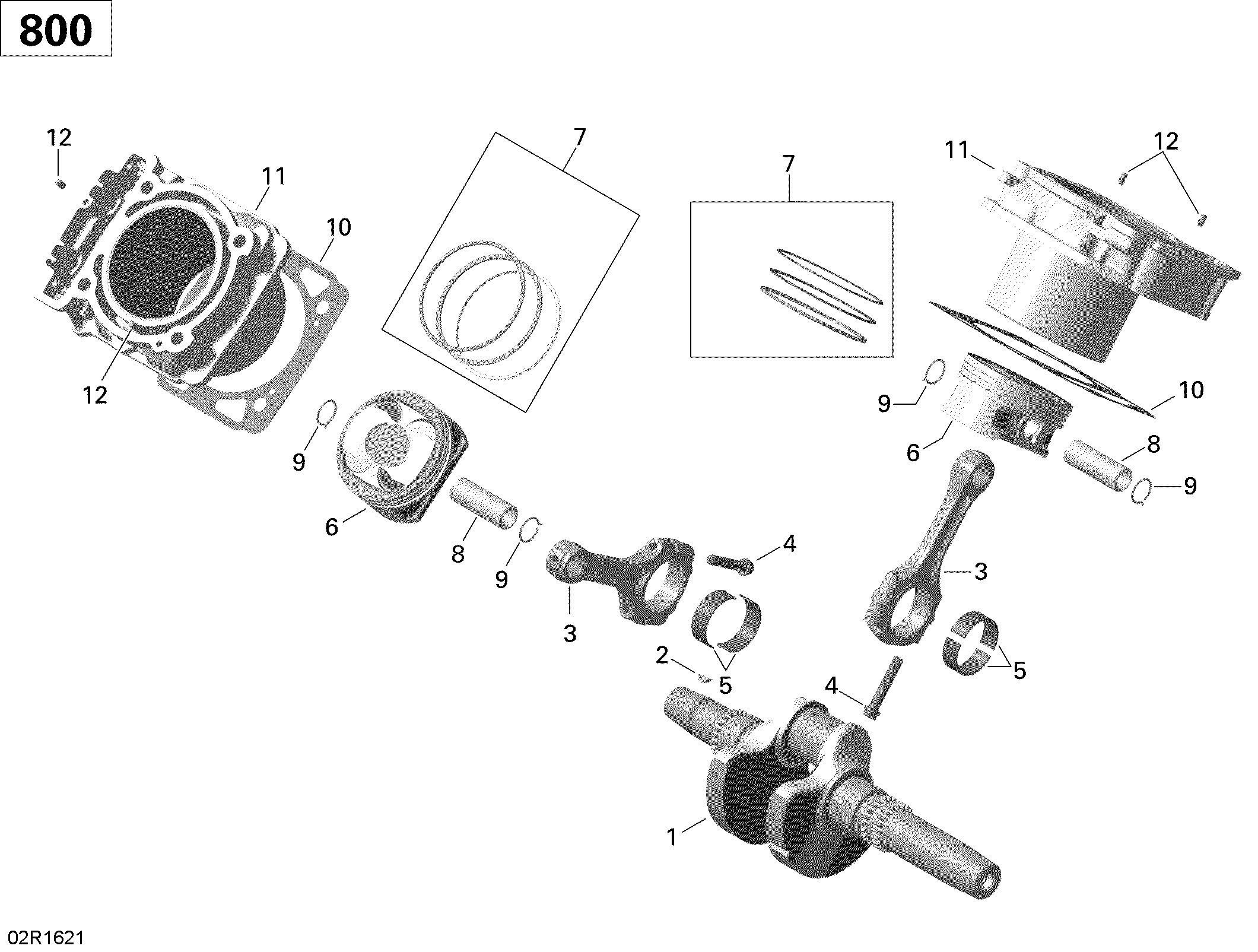

01- Crankshaft, Piston and Cylinder - 800R EFI для BRP Commander - Commander MAX - 2016
-
№АртикулНазвание
-
1420219745 CrankshaftCrankshaft
-
2420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
3420217429 Connecting Rod Ass'y. Includes 3 to 4Connecting Rod Ass'y. Includes 3 to 4
-
4420641640 Connecting Rod Screw M8 X 1Connecting Rod Screw M8 X 1
-
5420233980 Plain Bearing 40 X 43 X 15Plain Bearing 40 X 43 X 15
-
6420296775 Piston Ass'y, 90.958 mm. Includes 6 to 7Piston Ass'y, 90.958 mm. Includes 6 to 7
-
6420296776 Piston Ass'y, Oversize, 91.208 mm. Includes 6 to 7Piston Ass'y, Oversize, 91.208 mm. Includes 6 to 7
-
7420296774 Piston Ring SetPiston Ring Set
-
8420216270 Piston PinPiston Pin
-
9420845109 Piston CirclipPiston Circlip
-
10420630210 GasketGasket
-
11420613587 Cylinder With SleeveCylinder With Sleeve
-
12420929650 Drive Pin 5 X 10Drive Pin 5 X 10
