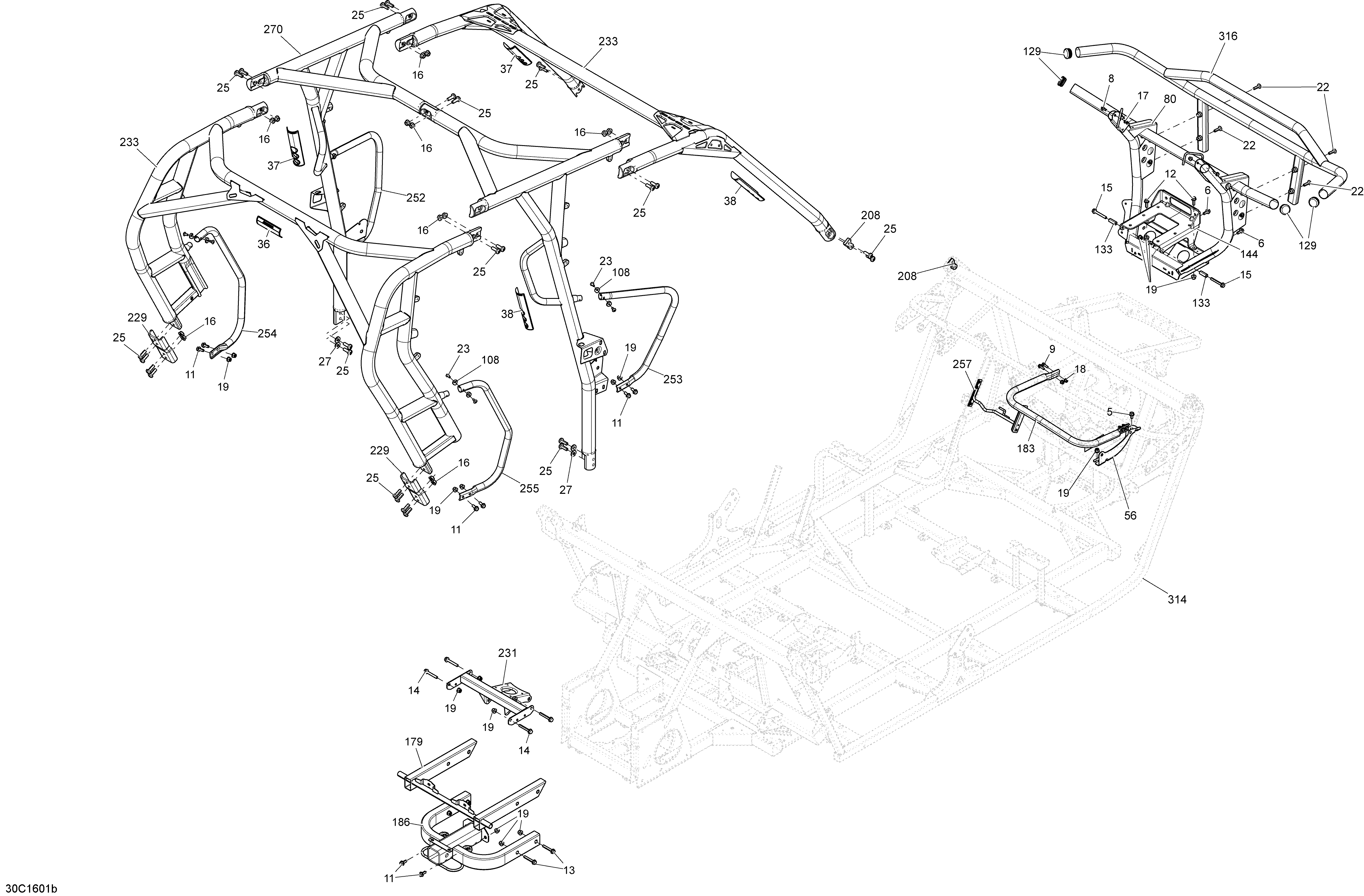

09- Frame - MAX для BRP Commander - Commander MAX - 2016
-
№АртикулНазвание
-
5207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
6207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
8207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
9207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
12207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
13207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
14207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
15207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
16233101464 Hex. Elastic Flange Nut , M10 X 1.5Hex. Elastic Flange Nut , M10 X 1.5
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
22250000197 Torx Truss Screw M8 X 30. Package-XTTorx Truss Screw M8 X 30. Package-XT
-
23250000439 Torx Truss Screw M6 X 14Torx Truss Screw M6 X 14
-
25250000624 Screw Torx M10 X 30Screw Torx M10 X 30
-
27250200154 WasherWasher
-
36704903492 Warning LabelWarning Label
-
37704903679 Warning LabelWarning Label
-
38704903680 Warning LabelWarning Label
-
56705201721 Front Differential SupportFront Differential Support
-
80705202995 Black Front BumperBlack Front Bumper
-
108705202223 Offset WasherOffset Washer
-
129705202455 CapCap
-
133705202499 Bushing. Package-XTBushing. Package-XT
-
144715000704 Winch Plate. Package-XTWinch Plate. Package-XT
-
179705203325 Box HolderBox Holder
-
183705203332 Black HandleBlack Handle
-
186715001251 Trailer Hitch Ass'yTrailer Hitch Ass'y
-
208705203415 Binding BlockBinding Block
-
229705203514 Rear Hand MountingRear Hand Mounting
-
231705203538 Differential HolderDifferential Holder
-
233715003420 Black Cage Kit, front and Rear Section. Black Cage ModelBlack Cage Kit, front and Rear Section. Black Cage Model
-
233715003423 Blue Cage Kit, Front And Rear Section. Blue Cage ModelBlue Cage Kit, Front And Rear Section. Blue Cage Model
-
252705204818 Blue LH Front Side Protector Tube. Blue Cage ModelBlue LH Front Side Protector Tube. Blue Cage Model
-
252705203643 Black LH Front Side Protector Tube. Black Cage ModelBlack LH Front Side Protector Tube. Black Cage Model
-
253705203642 Black RH Front Side Protector Tube. Black Cage ModelBlack RH Front Side Protector Tube. Black Cage Model
-
253705204819 Blue RH Front Side Protector Tube. Blue Cage ModelBlue RH Front Side Protector Tube. Blue Cage Model
-
254705203649 Black LH Rear Side Protector Tube. Black Cage ModelBlack LH Rear Side Protector Tube. Black Cage Model
-
254705204820 Blue LH Rear Side Protector Tube. Blue Cage ModelBlue LH Rear Side Protector Tube. Blue Cage Model
-
255705203652 Black RH Rear Side Protector Tube. Black Cage ModelBlack RH Rear Side Protector Tube. Black Cage Model
-
255705204821 Blue RH Rear Side Protector Tube. Blue Cage ModelBlue RH Rear Side Protector Tube. Blue Cage Model
-
257705203717 Reinforcement PanelReinforcement Panel
-
270715003425 Blue Center Safety Cage Kit. Blue Cage ModelBlue Center Safety Cage Kit. Blue Cage Model
-
270715003424 Black Center Safety Cage Kit. Black Cage ModelBlack Center Safety Cage Kit. Black Cage Model
-
314705204784 MAX Frame Ass'yMAX Frame Ass'y
-
76705004190 Spacer. Package HunterSpacer. Package Hunter
-
316715000958 Black Front Bumper. Package-XTBlack Front Bumper. Package-XT
-
316715000958 Black Front Bumper. Package HunterBlack Front Bumper. Package Hunter
