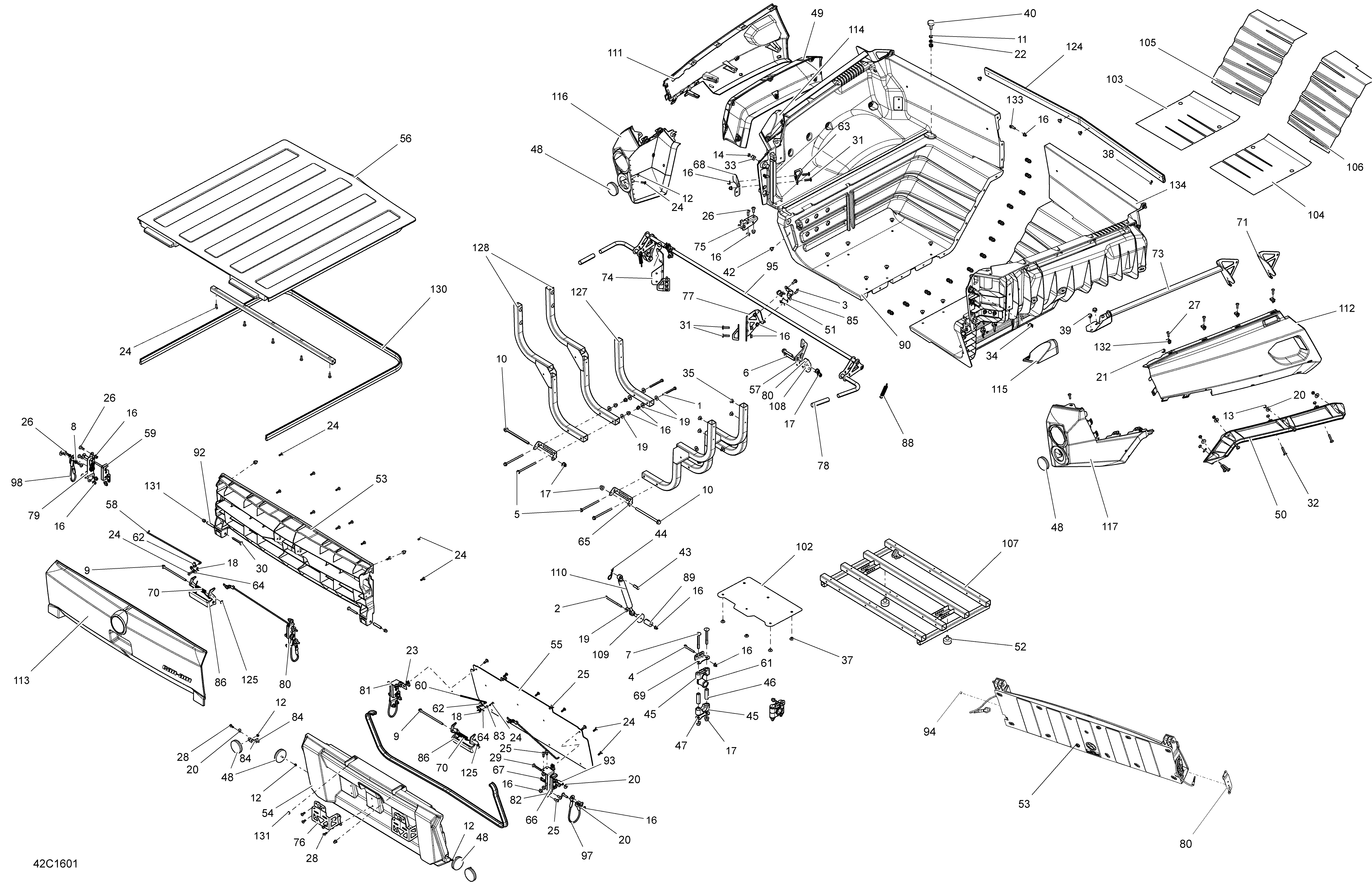

09- Rear Cargo Box для BRP Commander - Commander MAX - 2016
-
№АртикулНазвание
-
1207066544 Hex. Screw M6 X 65Hex. Screw M6 X 65
-
2207069044 Hex. Screw M6 X 90Hex. Screw M6 X 90
-
3207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
5207669584 Hex. Flanged Screw M6 X 95Hex. Flanged Screw M6 X 95
-
6207684586 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
7207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
8224061121 Flat WasherFlat Washer
-
9230663084 Hex. Flanged Screw M6 X 130Hex. Flanged Screw M6 X 130
-
10230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
11232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
12232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
13232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
14232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
18234061410 Flat Washer 6 mmFlat Washer 6 mm
-
19234062410 Flat Washer 6 mmFlat Washer 6 mm
-
20234062670 Flat Washer, StainlessFlat Washer, Stainless
-
21234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
22234181401 Lock Washer 8 mmLock Washer 8 mm
-
23250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
24250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
25250000721 Torx ScrewTorx Screw
-
26250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
27250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
28250000742 Torx Screw M5 X 14. Europe ModelTorx Screw M5 X 14. Europe Model
-
29250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
30250000749 Torx Screw M6 X 50Torx Screw M6 X 50
-
31250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
32250000842 Torx Screw M6 X 30. Package XT (Except Europe) - LTD - XTPTorx Screw M6 X 30. Package XT (Except Europe) - LTD - XTP
-
33269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
34269500725 Nut Housing Ass'yNut Housing Ass'y
-
35293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
37293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
38293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
39293150190 Pop Rivet 3/16. Package XT - LTDPop Rivet 3/16. Package XT - LTD
-
40293720091 Frame Rubber BumperFrame Rubber Bumper
-
42293830005 Rubber BumperRubber Bumper
-
43414079100 PinPin
-
44414575600 Hair PinHair Pin
-
45506150400 Housing HalfHousing Half
-
46506150500 Housing BushingHousing Bushing
-
47506150600 Stopper PlateStopper Plate
-
48705002408 Red Reflector. Except Europe ModelRed Reflector. Except Europe Model
-
48705002408 Red Reflector. Europe ModelRed Reflector. Europe Model
-
49705008671 LH Upper Rear Mudguards. Package XT - LTD - XTP - HunterLH Upper Rear Mudguards. Package XT - LTD - XTP - Hunter
-
50705008673 RH Upper Rear Mudguards. Package XT - LTD - XTP - HunterRH Upper Rear Mudguards. Package XT - LTD - XTP - Hunter
-
51705500033 Half RingHalf Ring
-
52708000884 Rubber StopperRubber Stopper
-
53708300053 Inside Top PannelInside Top Pannel
-
54715002365 Outside Bottom Pannel Ass'yOutside Bottom Pannel Ass'y
-
55708300073 Inside Bottom PannelInside Bottom Pannel
-
56708300131 Separator Pannel Ass'ySeparator Pannel Ass'y
-
57708300136 Box RetainerBox Retainer
-
58708300160 Top RodTop Rod
-
59708300162 LH LatchLH Latch
-
60708300164 Lower Bottom RodLower Bottom Rod
-
61708300172 Pivot BushingPivot Bushing
-
62708300182 LH Tie Rod ClipLH Tie Rod Clip
-
63708300183 Retaining PlateRetaining Plate
-
64708300184 ActivatorActivator
-
65708300185 Bracket PivotBracket Pivot
-
66708300201 RH LatchRH Latch
-
67708300202 RH Tie Rod ClipRH Tie Rod Clip
-
68708300206 Retaining Plate SupportRetaining Plate Support
-
69708300210 Adjustable Stopper PlateAdjustable Stopper Plate
-
70708300219 SpringSpring
-
71708300333 LH Painted Rail Cap. Package STD - DPS - XTPLH Painted Rail Cap. Package STD - DPS - XTP
-
71708300334 RH Painted Rail Cap. Package STD - DPS - XTPRH Painted Rail Cap. Package STD - DPS - XTP
-
73708300231 LH Welded Rail. Package XT - LTD - HunterLH Welded Rail. Package XT - LTD - Hunter
-
73708300232 RH Welded Rail. Package XT - LTD - HunterRH Welded Rail. Package XT - LTD - Hunter
-
74708300278 LH Latch Lever SupportLH Latch Lever Support
-
75708300345 Upper Pivot SupportUpper Pivot Support
-
76708300349 Plate Support. Europe ModelPlate Support. Europe Model
-
77708300351 RH Latch Lever SupportRH Latch Lever Support
-
78708300358 Cap Latch LeverCap Latch Lever
-
79708300359 LH Upper SupportLH Upper Support
-
80708300360 RH Upper SupportRH Upper Support
-
81708300361 LH Lower SupportLH Lower Support
-
82708300362 RH Lower SupportRH Lower Support
-
83708300365 BushingBushing
-
84708300367 Reflector Support. Europe ModelReflector Support. Europe Model
-
85708300392 Clamp ReatinerClamp Reatiner
-
86708300398 HandleHandle
-
88708300454 SpringSpring
-
89708300470 SpacerSpacer
-
90715002361 LH Box KitLH Box Kit
-
134715003385 RH Box Kit. CommanderRH Box Kit. Commander
-
134715003387 RH Box Kit. Com-MaxRH Box Kit. Com-Max
-
92708300735 BushingBushing
-
93708300736 SpacerSpacer
-
94708300737 BushingBushing
-
95708300751 Cargo Handle Ass'yCargo Handle Ass'y
-
97708300762 Lower Retainer CableLower Retainer Cable
-
98708300763 Upper Retainer CableUpper Retainer Cable
-
102708300780 Heat DeflectorHeat Deflector
-
103708300809 Heat Deflector SheetHeat Deflector Sheet
-
104708300810 Heat Deflector SheetHeat Deflector Sheet
-
105708300811 Heat Deflector SheetHeat Deflector Sheet
-
106708300812 Heat Deflector SheetHeat Deflector Sheet
-
107708300875 Black Box SupportBlack Box Support
-
108708300902 SpacerSpacer
-
109708301059 SpacerSpacer
-
110708301136 Gaz ShockGaz Shock
-
111708300840 White LH Rear Fender. White ModelWhite LH Rear Fender. White Model
-
111708300928 Black LH Rear Fender. XTP ModelBlack LH Rear Fender. XTP Model
-
111708301900 Black LH Rear Fender.. Black ModelBlack LH Rear Fender.. Black Model
-
111708301242 Yellow LH Rear Fender. Yellow ModelYellow LH Rear Fender. Yellow Model
-
111708301250 Viper Red LH Rear Fender. Viper Red ModelViper Red LH Rear Fender. Viper Red Model
-
111708301308 Quarry Gray LH Rear Fender. Quarry Gray ModelQuarry Gray LH Rear Fender. Quarry Gray Model
-
111708301312 Brush Aluminum LH Rear Fender. Brush Aluminium ModelBrush Aluminum LH Rear Fender. Brush Aluminium Model
-
111708301315 Deep Pewter LH Rear Fender. Deep Pewter ModelDeep Pewter LH Rear Fender. Deep Pewter Model
-
111708301687 Camo LH Rear Fender.. Camo ModelCamo LH Rear Fender.. Camo Model
-
111708301689 Cognac LH Rear Fender.. Cognac ModelCognac LH Rear Fender.. Cognac Model
-
112708301243 Yellow RH Rear Fender. Yellow ModelYellow RH Rear Fender. Yellow Model
-
112708301251 Viper Red RH Rear Fender. Viper Red ModelViper Red RH Rear Fender. Viper Red Model
-
112708301309 Quarry Gray RH Rear Fender. Quarry Gray ModelQuarry Gray RH Rear Fender. Quarry Gray Model
-
112708301313 Brush Aluminum RH Rear Fender. Brush Aluminium ModelBrush Aluminum RH Rear Fender. Brush Aluminium Model
-
112708301316 Deep Pewter RH Rear Fender. Deep Pewter ModelDeep Pewter RH Rear Fender. Deep Pewter Model
-
112708301688 Camo RH Rear Fender.. Camo ModelCamo RH Rear Fender.. Camo Model
-
112708301690 Cognac RH Rear Fender.. Cognac ModelCognac RH Rear Fender.. Cognac Model
-
112708300841 White RH Rear Fender. White ModelWhite RH Rear Fender. White Model
-
112708301901 Black RH Rear Fender.. Black ModelBlack RH Rear Fender.. Black Model
-
112708300929 Black RH Rear Fender. Package XTPBlack RH Rear Fender. Package XTP
-
113708301256 Yellow Outside Top Pannel. Yellow ModelYellow Outside Top Pannel. Yellow Model
-
113708301257 Viper Red Outside Top Pannel. Viper Red ModelViper Red Outside Top Pannel. Viper Red Model
-
113708301310 Quarry Gray Outside Top Pannel. Quarry Gray ModelQuarry Gray Outside Top Pannel. Quarry Gray Model
-
113708301311 Orange Crush Outside Top Pannel. Package XTPOrange Crush Outside Top Pannel. Package XTP
-
113708301317 Deep Pewter Outside Top Pannel. Deep Pewter ModelDeep Pewter Outside Top Pannel. Deep Pewter Model
-
113708301583 Black Outside Top Pannel. Brush Aluminium ModelBlack Outside Top Pannel. Brush Aluminium Model
-
113708301583 Black Outside Top Pannel. Black ModelBlack Outside Top Pannel. Black Model
-
113708301693 Camo Outside Top Pannel. Camo ModelCamo Outside Top Pannel. Camo Model
-
113708301694 Cognac Outside Top Pannel. Cognac ModelCognac Outside Top Pannel. Cognac Model
-
113708300672 White Outside Top Pannel. White ModelWhite Outside Top Pannel. White Model
-
114708301380 LH Rail Cover. Package XT - LTD - HunterLH Rail Cover. Package XT - LTD - Hunter
-
115708301381 RH Rail Cover. Package XT - LTD - HunterRH Rail Cover. Package XT - LTD - Hunter
-
116708301383 LH Rear FaciaLH Rear Facia
-
117708301384 RH Rear FaciaRH Rear Facia
-
124708301633 Front SupportFront Support
-
125732610072 Push NutPush Nut
-
127708300877 Black Lateral SupportBlack Lateral Support
-
128708300879 Black Welded Lateral SupportBlack Welded Lateral Support
-
131232361493 Domed Nut M6Domed Nut M6
-
132250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
133207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
130293250240 Neoprene SealNeoprene Seal
