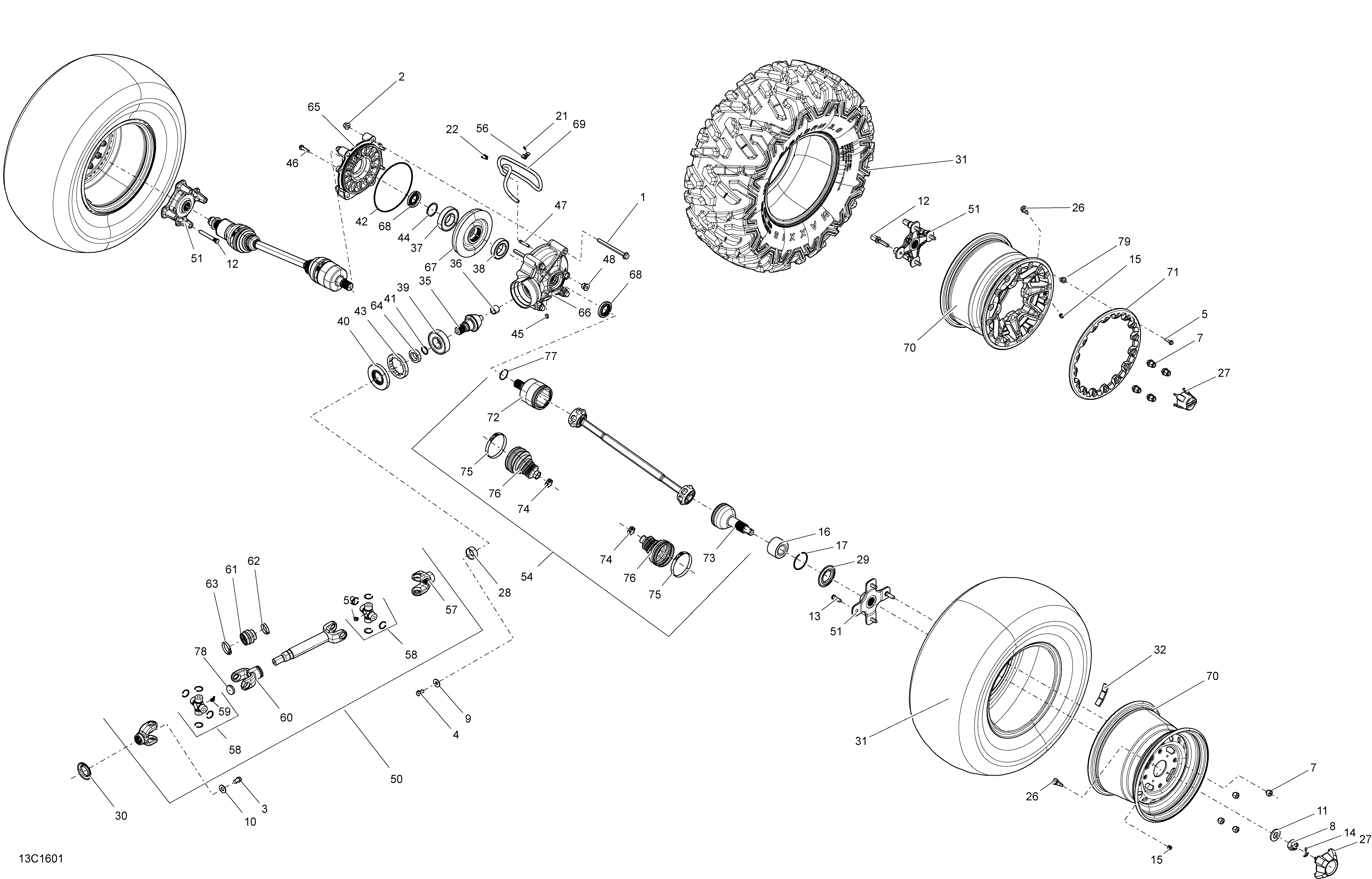

08- Drive System, Rear для BRP Commander - Commander MAX - 2016
-
№АртикулНазвание
-
1230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
2233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
3250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
4250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
5250000787 Hex. Flanged Screw M6 X 25. Package XTPHex. Flanged Screw M6 X 25. Package XTP
-
7250100042 Steel Wheel Nut. Package STDSteel Wheel Nut. Package STD
-
7250100082 Chrome Wheel Nut M10 X 1.25. Package DPSChrome Wheel Nut M10 X 1.25. Package DPS
-
7250100082 Chrome Wheel Nut M10 X 1.25. Package LTDChrome Wheel Nut M10 X 1.25. Package LTD
-
7250100082 Chrome Wheel Nut M10 X 1.25. Package XT YellowChrome Wheel Nut M10 X 1.25. Package XT Yellow
-
7250100082 Chrome Wheel Nut M10 X 1.25. Package XT WhiteChrome Wheel Nut M10 X 1.25. Package XT White
-
7250100100 Black Wheel Nut M10 X 1.25. Package XT Black ModelBlack Wheel Nut M10 X 1.25. Package XT Black Model
-
7250100100 Black Wheel Nut M10 X 1.25. Package XT Camo ModelBlack Wheel Nut M10 X 1.25. Package XT Camo Model
-
7250100100 Black Wheel Nut M10 X 1.25. Package XT Brush Aluminium ModelBlack Wheel Nut M10 X 1.25. Package XT Brush Aluminium Model
-
7250100100 Black Wheel Nut M10 X 1.25. Package XTPBlack Wheel Nut M10 X 1.25. Package XTP
-
7250100100 Black Wheel Nut M10 X 1.25. Package HunterBlack Wheel Nut M10 X 1.25. Package Hunter
-
8250100161 Castle Nut M20Castle Nut M20
-
9250200014 Flat Washer M10Flat Washer M10
-
10250200102 Flat Washer M12Flat Washer M12
-
11250200148 Spring WasherSpring Washer
-
13250300051 Wheel Stud. MAX ModelWheel Stud. MAX Model
-
13250300051 Wheel Stud. Package XTPWheel Stud. Package XTP
-
13250300055 Wheel Stud M10 X 1.25. LH Hub Except MAX Model - Except Package XTPWheel Stud M10 X 1.25. LH Hub Except MAX Model - Except Package XTP
-
13705400791 Wheel Stud. RH Hub Except MAX Model - Except Package XTPWheel Stud. RH Hub Except MAX Model - Except Package XTP
-
14250400071 Cotter PinCotter Pin
-
15293000110 Valve CapValve Cap
-
16293350040 Cone BearingCone Bearing
-
17293370019 CirclipCirclip
-
21390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
22414227300 ClipClip
-
26705400193 Rim Valve With CapRim Valve With Cap
-
27705400921 Wheel Cap. Package STDWheel Cap. Package STD
-
27705401541 Wheel Cap. Package DPSWheel Cap. Package DPS
-
27705401541 Wheel Cap. Package XTWheel Cap. Package XT
-
27705401541 Wheel Cap. Package HunterWheel Cap. Package Hunter
-
27705400928 Wheel Cap. Package XTPWheel Cap. Package XTP
-
27705401541 Wheel Cap. Package LTDWheel Cap. Package LTD
-
28705400036 Wear RingWear Ring
-
29705501121 Wear Sleeve. Except MAX Model - Except Package XTPWear Sleeve. Except MAX Model - Except Package XTP
-
30705501123 ProtectorProtector
-
31705501129 Rear Tire. Package STDRear Tire. Package STD
-
31705502019 Rear Tire. Package DPS (Except Europe)Rear Tire. Package DPS (Except Europe)
-
31705502019 Rear Tire. Package XT (Except Europe)Rear Tire. Package XT (Except Europe)
-
31705501817 Rear Tire Maxxis 27X11X12. Package XTPRear Tire Maxxis 27X11X12. Package XTP
-
31705502019 Rear Tire. Package HunterRear Tire. Package Hunter
-
31705502019 Rear Tire. Package LTDRear Tire. Package LTD
-
31705501295 Rear Tire. EuropeRear Tire. Europe
-
32705501385 1/2 OZ Weight1/2 OZ Weight
-
35705501871 Gear-10 ToothGear-10 Tooth
-
36705501874 Needle BearingNeedle Bearing
-
37705501875 Ball BearingBall Bearing
-
38705501876 Ball BearingBall Bearing
-
39705501877 Ball BearingBall Bearing
-
40705501878 Oil SealOil Seal
-
41705501880 Oil SealOil Seal
-
42705501881 Oil SealOil Seal
-
43705501882 NutNut
-
44705501883 Shim KitShim Kit
-
45705501885 Drain PlugDrain Plug
-
46705501886 ScrewScrew
-
47705501887 Vent ValveVent Valve
-
48705501889 Fill Level PlugFill Level Plug
-
50703500854 Axle Kit. Include 28Axle Kit. Include 28
-
51705502268 Wheel Hub. LH Except MAX Model - Except Package XTPWheel Hub. LH Except MAX Model - Except Package XTP
-
51705502267 Wheel Hub. RH Except MAX Model - Except Package XTPWheel Hub. RH Except MAX Model - Except Package XTP
-
51705502223 Wheel Hub. Com-MAX ModelWheel Hub. Com-MAX Model
-
51705502223 Wheel Hub. Package XTPWheel Hub. Package XTP
-
54705502355 Half ShaftHalf Shaft
-
56705600459 ClampClamp
-
57715900271 Fixe YokeFixe Yoke
-
58715500371 Universal JointUniversal Joint
-
59715900184 Grease FittingGrease Fitting
-
60715900106 Spline YokeSpline Yoke
-
61715900118 Rubber BootRubber Boot
-
62509000045 Oetiker Gear ClampOetiker Gear Clamp
-
63293650138 Oetiker Gear ClampOetiker Gear Clamp
-
64705502331 Rear Differential Ass'YRear Differential Ass'Y
-
65705502332 Rear CoverRear Cover
-
66705502333 Rear CoverRear Cover
-
67705502109 Pinion 36 ToothPinion 36 Tooth
-
68705502110 Oil SealOil Seal
-
69293830177 Polyurethane HosePolyurethane Hose
-
70705502101 Silver Rear Rim. Package DPSSilver Rear Rim. Package DPS
-
70705502101 Silver Rear Rim. Package XT YellowSilver Rear Rim. Package XT Yellow
-
70705502101 Silver Rear Rim. Package XT WhiteSilver Rear Rim. Package XT White
-
70705501623 Black Rear Rim. Package STDBlack Rear Rim. Package STD
-
70705502102 Black Rear Rim. Package LTDBlack Rear Rim. Package LTD
-
70705502103 Black Rear Rim. Package XT Camo ModelBlack Rear Rim. Package XT Camo Model
-
70705502103 Black Rear Rim. Package XT Black ModelBlack Rear Rim. Package XT Black Model
-
70705502103 Black Rear Rim. Package XT Brush Aluminium ModelBlack Rear Rim. Package XT Brush Aluminium Model
-
70705502103 Black Rear Rim. Package HunterBlack Rear Rim. Package Hunter
-
70705502244 Black Rear Rim. Package XTPBlack Rear Rim. Package XTP
-
71705401815 Disc Plate. Package XTPDisc Plate. Package XTP
-
72705501780 Plunging JointPlunging Joint
-
73715900391 Cv JointCv Joint
-
74715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
75715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
76705501864 Boot KitBoot Kit
-
77705501781 CirclipCirclip
-
78715900187 CoverCover
-
79293450317 Insert. Package XTPInsert. Package XTP
