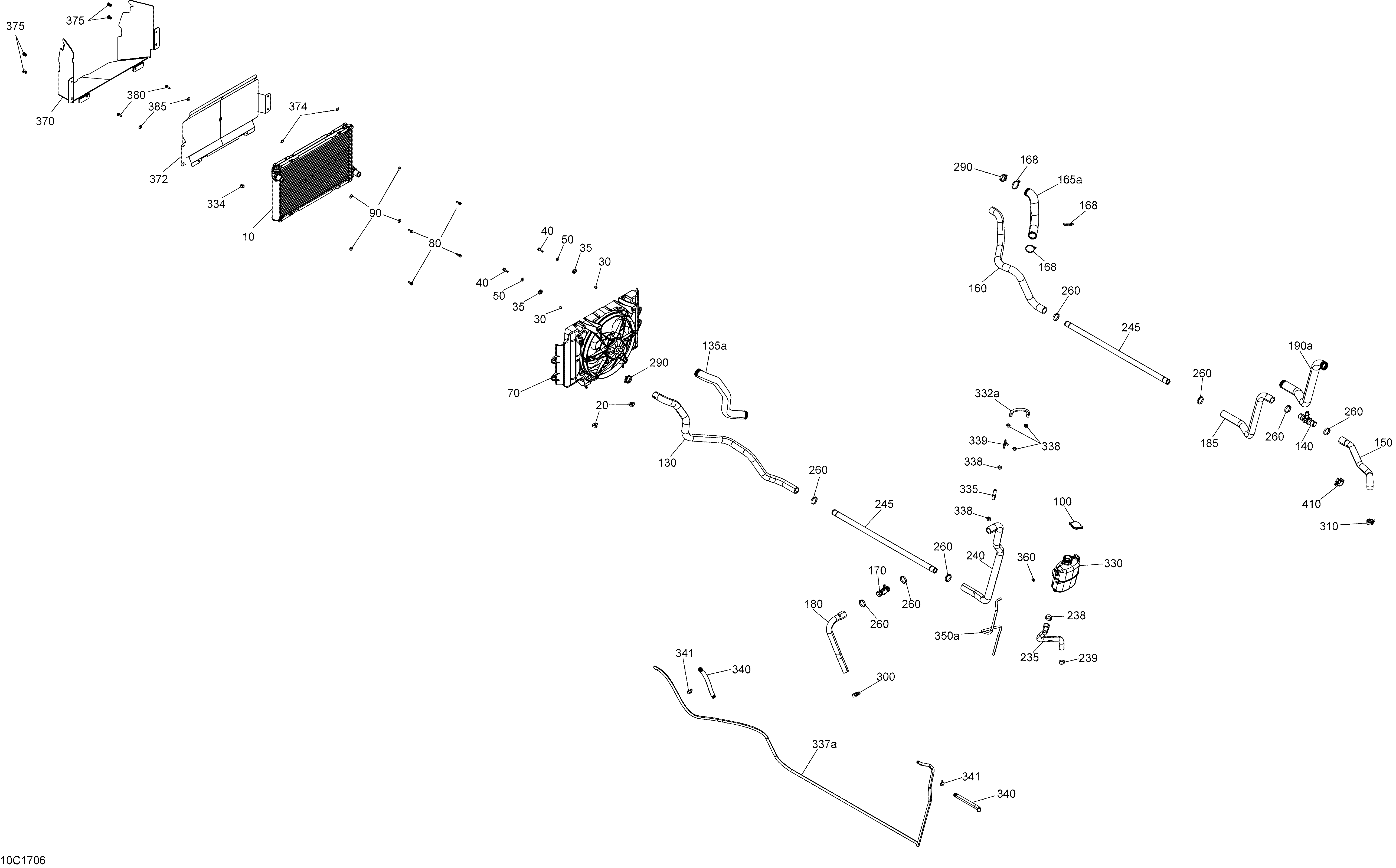

01- Cooling System для BRP Defender HD5 - 2017
-
№АртикулНазвание
-
10709200533 RadiatorRadiator
-
20709200285 GrommetGrommet
-
30293900105 BushingBushing
-
35293720053 GrommetGrommet
-
40207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
50234062410 Flat Washer 6 mmFlat Washer 6 mm
-
70709200534 FanFan
-
80207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
90234062410 Flat Washer 6 mmFlat Washer 6 mm
-
100709200207 Pressure CapPressure Cap
-
130709200537 Radiator Inlet HoseRadiator Inlet Hose
-
135a515176260 Tubing 35 mmTubing 35 mm
-
140509000995 T FittingT Fitting
-
150709200653 Pump HosePump Hose
-
160709200539 Radiator Outlet HoseRadiator Outlet Hose
-
165a515176260 Tubing 35 mmTubing 35 mm
-
168293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
170509000510 T-FittingT-Fitting
-
180709200652 HoseHose
-
185709200659 HoseHose
-
190a515176260 Tubing 35 mmTubing 35 mm
-
235709200654 HoseHose
-
238293650165 Oetiker Gear ClampOetiker Gear Clamp
-
239509000442 Oetiker Gear ClampOetiker Gear Clamp
-
240709200656 HoseHose
-
245709200657 Heater TubingHeater Tubing
-
260509000162 Gear ClampGear Clamp
-
290293650166 Norma Spring ClampNorma Spring Clamp
-
300293650109 Norma Spring ClampNorma Spring Clamp
-
310293650108 Norma Spring ClampNorma Spring Clamp
-
330709200412 Coolant TankCoolant Tank
-
332a415129508 Bleeder HoseBleeder Hose
-
334293650025 Oetiker Gear ClampOetiker Gear Clamp
-
335709200606 Bleeding HoseBleeding Hose
-
337a415129508 Bleeder HoseBleeder Hose
-
338293650047 Crimp ClampCrimp Clamp
-
339293710059 Y-FittingY-Fitting
-
340a415080000 Tubing 16 mmTubing 16 mm
-
341414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
350a415080200 Hose, PolyurethaneHose, Polyurethane
-
360414554800 Spring ClampSpring Clamp
-
370705009325 Radiator DeflectorRadiator Deflector
-
372708200609 GrilleGrille
-
374517302674 ClipClip
-
375293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
380207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
385234062410 Flat Washer 6 mmFlat Washer 6 mm
-
410275500526 RetainerRetainer
