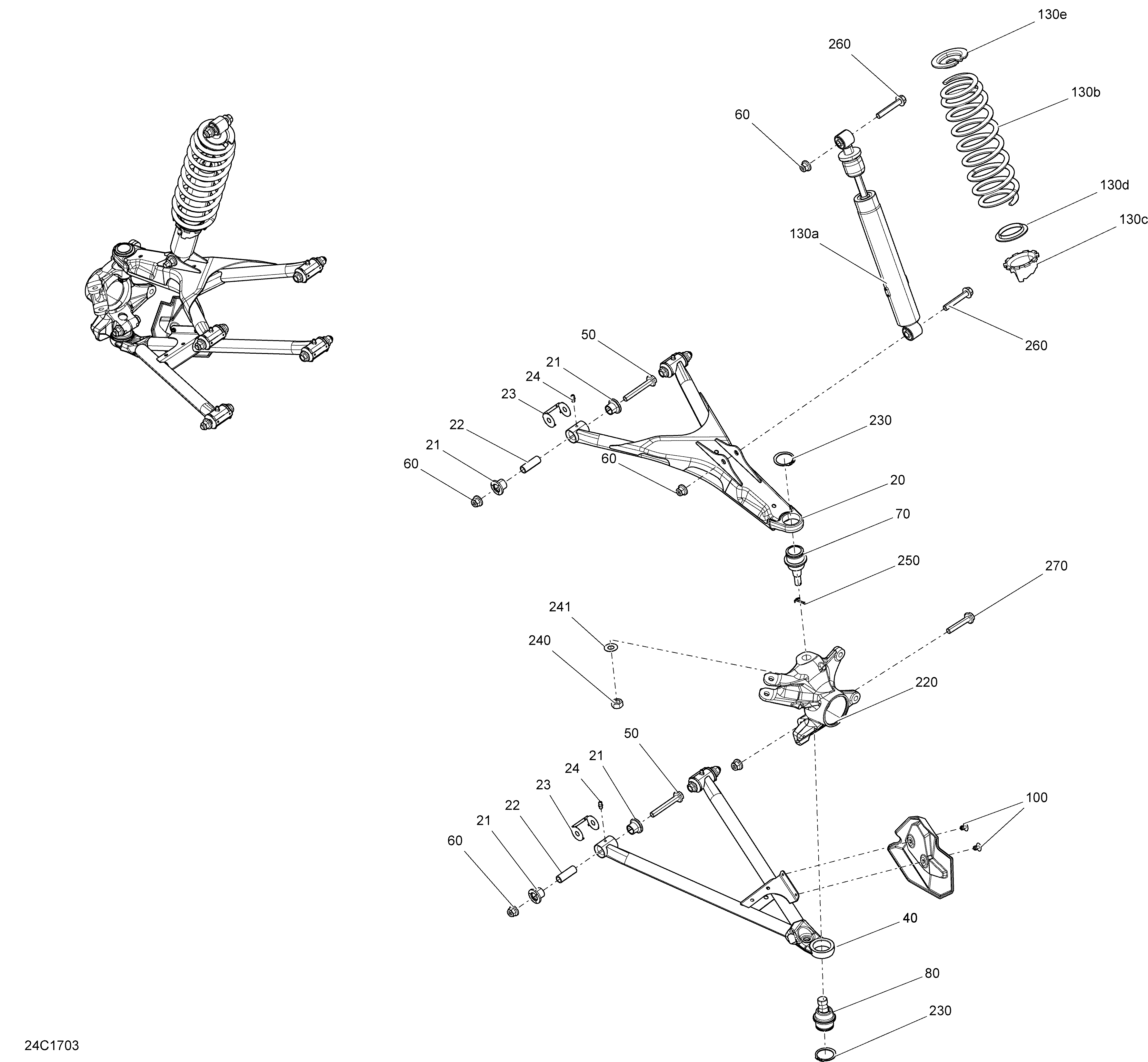

07- Front Suspension для BRP Defender HD5 - 2017
-
№АртикулНазвание
-
10706202020 Front Top LH ArmFront Top LH Arm
-
20706202059 Front Top RH ArmFront Top RH Arm
-
21706202088 CushionCushion
-
22703500875 Bushing KitBushing Kit
-
23703500875 Bushing KitBushing Kit
-
24408200700 Grease FittingGrease Fitting
-
30706203028 Front Lower LH ArmFront Lower LH Arm
-
40706203029 Front Lower RH ArmFront Lower RH Arm
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
60233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
70706202801 Upper Ball JointUpper Ball Joint
-
80706202045 Ball JointBall Joint
-
100293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
130a706202602 Front ShockFront Shock
-
130b706202771 Front Spring Deep BlackFront Spring Deep Black
-
130c706001893 Adjust RingAdjust Ring
-
130d503187500 Spring GuideSpring Guide
-
130e706001894 Spring CupSpring Cup
-
160706202135 RH ProtectorRH Protector
-
170706202134 LH ProtectorLH Protector
-
210706202027 LH KnuckleLH Knuckle
-
220706202028 RH KnuckleRH Knuckle
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
250211400017 Cotter PinCotter Pin
-
260207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
270207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
