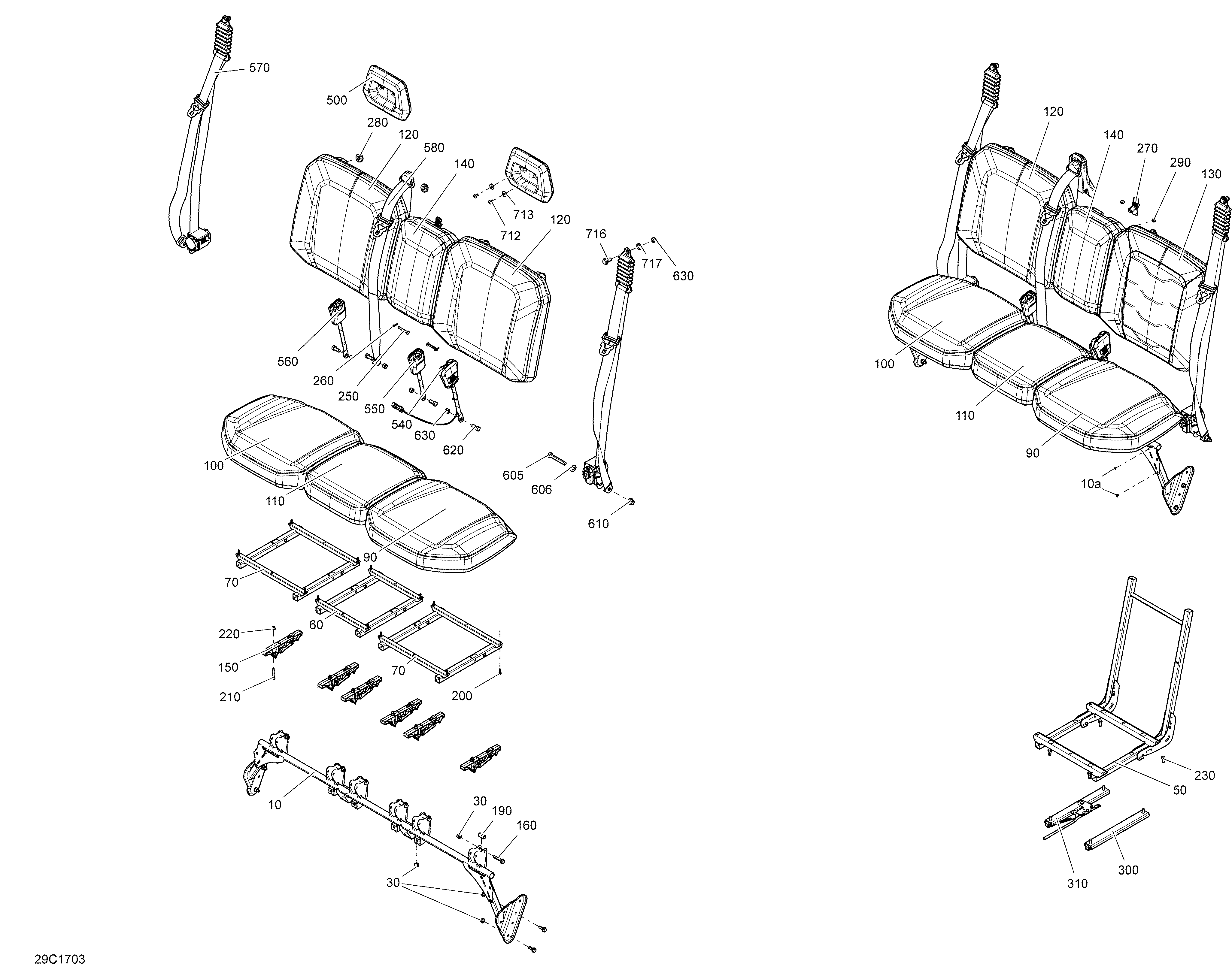

09- Seat для BRP Defender HD5 - 2017
-
№АртикулНазвание
-
10>10a708001904 Seat Support. Includes 10 to 10aSeat Support. Includes 10 to 10a
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
60708001895 Center Seat MemberCenter Seat Member
-
70708001899 Seat MemberSeat Member
-
90708001497 LH Cushion Ass'yLH Cushion Ass'y
-
100708001498 RH Cushion Ass'yRH Cushion Ass'y
-
110708001629 Central Cushion Ass'yCentral Cushion Ass'y
-
120708001701 Backrest Ass'yBackrest Ass'y
-
140708001630 Center Backrest Ass'yCenter Backrest Ass'y
-
150708001693 Base BracketBase Bracket
-
160207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
190708001903 BushingBushing
-
200250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
210207064544 Hex. Screw M6 X 45Hex. Screw M6 X 45
-
220233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
250250400069 PinPin
-
260269800431 HairpinHairpin
-
270269501487 LatchLatch
-
280517303756 GrommetGrommet
-
290293830005 Rubber BumperRubber Bumper
-
500708001721 Head RestHead Rest
-
540708002331 Driver BuckleDriver Buckle
-
550708002330 Middle BuckleMiddle Buckle
-
560708002329 Passenger BucklePassenger Buckle
-
570708002328 Safety BeltSafety Belt
-
580708002327 Central Safety BeltCentral Safety Belt
-
605207028046 Hex. Screw M12 X 80Hex. Screw M12 X 80
-
606250200102 Flat Washer M12Flat Washer M12
-
610233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
620250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
630250100183 Lock Nut Nylon 7/16Lock Nut Nylon 7/16
-
712250000721 Torx ScrewTorx Screw
-
713250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
716708000890 Safety Belt ScrewSafety Belt Screw
-
717708000891 Position WasherPosition Washer
