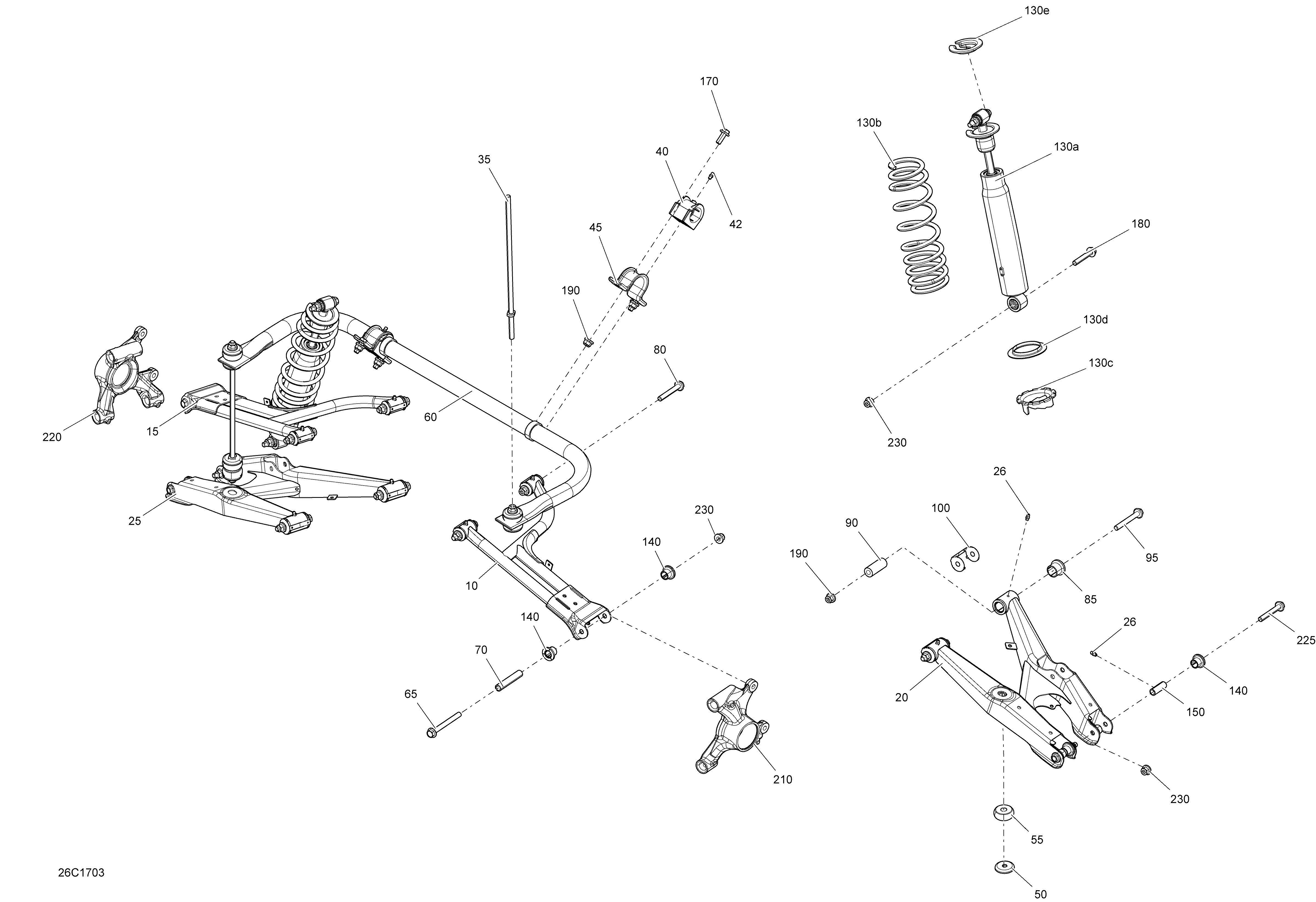

08- Rear Suspension для BRP Defender HD5 - 2017
-
№АртикулНазвание
-
10706001755 LH Upper ArmLH Upper Arm
-
15706001756 RH Upper ArmRH Upper Arm
-
20706001757 LH Lower ArmLH Lower Arm
-
25706001758 RH Lower ArmRH Lower Arm
-
26408200700 Grease FittingGrease Fitting
-
35706001898 Torsion Bar LinkTorsion Bar Link
-
40706001896 CushionCushion
-
42408200700 Grease FittingGrease Fitting
-
45706002592 ClampClamp
-
50706002027 Linkage CupLinkage Cup
-
55706002028 Linkage BushingLinkage Bushing
-
60706002076 Sway Bar Ass'ySway Bar Ass'y
-
65230500046 Hex. Screw M10 X 100, Scotch GripHex. Screw M10 X 100, Scotch Grip
-
70706202197 Upper BushingUpper Bushing
-
80207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
85706201659 CushionCushion
-
90706201590 SleeveSleeve
-
95207608046 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
100706201660 Wear PlateWear Plate
-
130a706002578 Rear ShockRear Shock
-
130b706002639 Rear Spring Deep BlackRear Spring Deep Black
-
130c706000910 Adjustable RingAdjustable Ring
-
130d706000911 Protector RingProtector Ring
-
130e706001894 Spring CupSpring Cup
-
140706202088 CushionCushion
-
150703500875 Bushing KitBushing Kit
-
170207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
180207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
190233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
210706001793 LH KnuckleLH Knuckle
-
220706001795 RH KnuckleRH Knuckle
-
225207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
230233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
