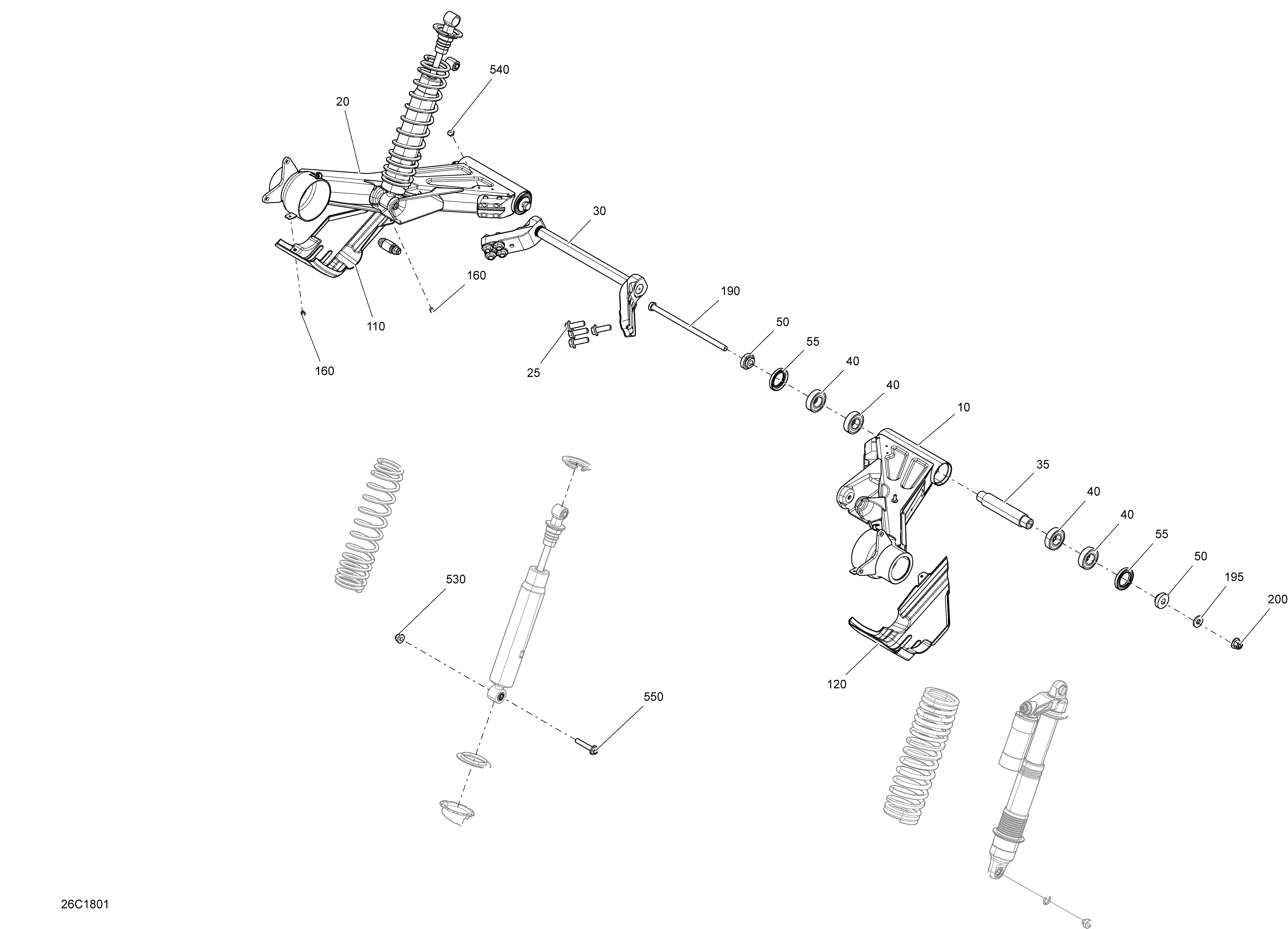

08- Rear Suspension Commander для BRP 1- Commander 800R EFI - 2018
-
№АртикулНазвание
-
10703500965 RH Swing Arm. Non MAX ModelsRH Swing Arm. Non MAX Models
-
10706001513 RH Swing Arm. MAX ModelsRH Swing Arm. MAX Models
-
20703500964 LH Swing Arm. Non MAX ModelsLH Swing Arm. Non MAX Models
-
20706001514 LH Swing Arm. MAX ModelsLH Swing Arm. MAX Models
-
25207523544 Hex. Flanged Screw M12 X 35, Scotch GripHex. Flanged Screw M12 X 35, Scotch Grip
-
30706001500 Sway Bar Ass'y. Non MAX ModelsSway Bar Ass'y. Non MAX Models
-
30706001718 Bar Sway. MAX ModelsBar Sway. MAX Models
-
35706001529 BushingBushing
-
40293350055 Ball BearingBall Bearing
-
50706001350 SpacerSpacer
-
55293200094 SealSeal
-
110706002999 LH Joint ProtectorLH Joint Protector
-
120706003000 RH Joint ProtectorRH Joint Protector
-
160293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
190250000515 Hex. Cap Screw M12 X 241Hex. Cap Screw M12 X 241
-
195250200120 Flat Washer M12Flat Washer M12
-
200233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
530233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
540390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
550207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
