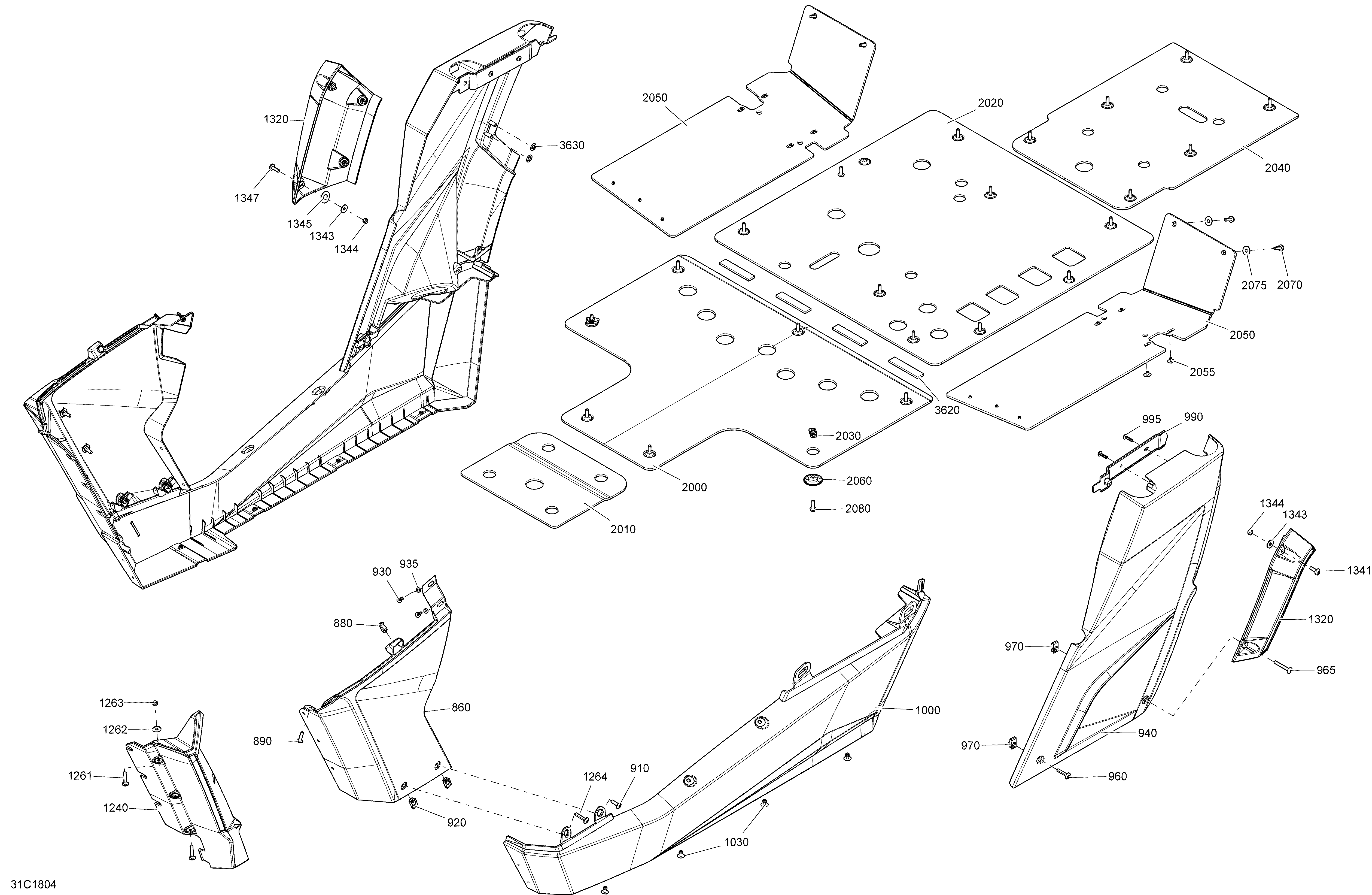

09- Body And Accessories Commander Non MAX - Central Bright White Models для BRP 1- Commander 800R EFI - 2018
-
№АртикулНазвание
-
860705007358 White LH Front Lateral Pannel. Bright White ModelsWhite LH Front Lateral Pannel. Bright White Models
-
860705007359 White RH Front Lateral Pannel. Bright White ModelsWhite RH Front Lateral Pannel. Bright White Models
-
880293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
890250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
910250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
910250000722 Torx Screw M6 X 20. Package STD, DPSTorx Screw M6 X 20. Package STD, DPS
-
920250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
930250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
935234051410 Flat Washer M5Flat Washer M5
-
940705011543 White LH Rear Lateral Panel. Bright White ModelsWhite LH Rear Lateral Panel. Bright White Models
-
940705011549 White RH Rear Lateral Panel. Bright White ModelsWhite RH Rear Lateral Panel. Bright White Models
-
960250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
965250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
970250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
990705007916 Support Skid PlateSupport Skid Plate
-
995250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
1000705006991 LH Lateral Middle Panel. Package STD, DPSLH Lateral Middle Panel. Package STD, DPS
-
1000705006993 LH Middle Side Pannel. Package XT, LTDLH Middle Side Pannel. Package XT, LTD
-
1000705006993 LH Middle Side Pannel. Package HunterLH Middle Side Pannel. Package Hunter
-
1000705006992 RH Lateral Middle Panel. Package STD, DPSRH Lateral Middle Panel. Package STD, DPS
-
1000705006994 RH Middle Side Pannel. Package XT, LTDRH Middle Side Pannel. Package XT, LTD
-
1000705006994 RH Middle Side Pannel. Package HunterRH Middle Side Pannel. Package Hunter
-
1030293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200705008666 LH Black Upper Front Mudguard. Package HunterLH Black Upper Front Mudguard. Package Hunter
-
1200705008666 LH Black Upper Front Mudguard. Package XT, LTDLH Black Upper Front Mudguard. Package XT, LTD
-
1220705008667 RH Black Upper Front Mudguard. Package XT, LTDRH Black Upper Front Mudguard. Package XT, LTD
-
1220705008667 RH Black Upper Front Mudguard. Package HunterRH Black Upper Front Mudguard. Package Hunter
-
1221250000842 Torx Screw M6 X 30 Stainless. Package XT, LTDTorx Screw M6 X 30 Stainless. Package XT, LTD
-
1221250000842 Torx Screw M6 X 30 Stainless. Package HunterTorx Screw M6 X 30 Stainless. Package Hunter
-
1222234062670 Flat Washer, Stainless. Package HunterFlat Washer, Stainless. Package Hunter
-
1222234062670 Flat Washer, Stainless. Package XT, LTDFlat Washer, Stainless. Package XT, LTD
-
1223232561434 Elastic Stop Nut M6. Package XT, LTDElastic Stop Nut M6. Package XT, LTD
-
1223232561434 Elastic Stop Nut M6. Package HunterElastic Stop Nut M6. Package Hunter
-
1240705008668 LH Lower Black Mudguard. Package XT, LTDLH Lower Black Mudguard. Package XT, LTD
-
1240705008668 LH Lower Black Mudguard. Package HunterLH Lower Black Mudguard. Package Hunter
-
1240705008669 RH Lower Black Mudguard. Package XT, LTDRH Lower Black Mudguard. Package XT, LTD
-
1240705008669 RH Lower Black Mudguard. Package HunterRH Lower Black Mudguard. Package Hunter
-
1261250000842 Torx Screw M6 X 30 Stainless. Package XT, LTDTorx Screw M6 X 30 Stainless. Package XT, LTD
-
1261250000842 Torx Screw M6 X 30 Stainless. Package HunterTorx Screw M6 X 30 Stainless. Package Hunter
-
1262234062670 Flat Washer, Stainless. Package XT, LTDFlat Washer, Stainless. Package XT, LTD
-
1262234062670 Flat Washer, Stainless. Package HunterFlat Washer, Stainless. Package Hunter
-
1263232561434 Elastic Stop Nut M6. Package XT, LTDElastic Stop Nut M6. Package XT, LTD
-
1263232561434 Elastic Stop Nut M6. Package HunterElastic Stop Nut M6. Package Hunter
-
1264250000842 Torx Screw M6 X 30 Stainless. Package HunterTorx Screw M6 X 30 Stainless. Package Hunter
-
1264250000842 Torx Screw M6 X 30 Stainless. Package XT, LTDTorx Screw M6 X 30 Stainless. Package XT, LTD
-
1320705008670 LH Rear Lower Black Mudguard. Package XT, LTDLH Rear Lower Black Mudguard. Package XT, LTD
-
1320705008670 LH Rear Lower Black Mudguard. Package HunterLH Rear Lower Black Mudguard. Package Hunter
-
1320705008672 RH Rear Lower Black Mudguard. Package XT, LTDRH Rear Lower Black Mudguard. Package XT, LTD
-
1320705008672 RH Rear Lower Black Mudguard. Package HunterRH Rear Lower Black Mudguard. Package Hunter
-
1341250000712 Torx Screw M6 X 20. Package HunterTorx Screw M6 X 20. Package Hunter
-
1341250000712 Torx Screw M6 X 20. Package XT, LTDTorx Screw M6 X 20. Package XT, LTD
-
1343234062670 Flat Washer, Stainless. Package XT, LTDFlat Washer, Stainless. Package XT, LTD
-
1343234062670 Flat Washer, Stainless. Package HunterFlat Washer, Stainless. Package Hunter
-
1344232561434 Elastic Stop Nut M6. Package XT, LTDElastic Stop Nut M6. Package XT, LTD
-
1344232561434 Elastic Stop Nut M6. Package HunterElastic Stop Nut M6. Package Hunter
-
1345250200086 Flat Washer. Package HunterFlat Washer. Package Hunter
-
1345250200086 Flat Washer. Package XT, LTDFlat Washer. Package XT, LTD
-
1347250000712 Torx Screw M6 X 20. Package XT, LTDTorx Screw M6 X 20. Package XT, LTD
-
1347250000712 Torx Screw M6 X 20. Package HunterTorx Screw M6 X 20. Package Hunter
-
2000705007055 Middle Protector Plate. Package XT, LTDMiddle Protector Plate. Package XT, LTD
-
2000715001996 Middle Front Protector Plate. Package HunterMiddle Front Protector Plate. Package Hunter
-
2000705007055 Middle Protector Plate. Package STD, DPSMiddle Protector Plate. Package STD, DPS
-
2010715001996 Middle Front Protector Plate. Package HunterMiddle Front Protector Plate. Package Hunter
-
2020705007056 Rear Protector Plate. Package XT, LTDRear Protector Plate. Package XT, LTD
-
2020715001997 Middle Rear Protector Plate. Package HunterMiddle Rear Protector Plate. Package Hunter
-
2020705007056 Rear Protector Plate. Package STD, DPSRear Protector Plate. Package STD, DPS
-
2030250000957 Extruded Panel Nut M6 X 1.0. Package XT, LTDExtruded Panel Nut M6 X 1.0. Package XT, LTD
-
2030250000957 Extruded Panel Nut M6 X 1.0. Package HunterExtruded Panel Nut M6 X 1.0. Package Hunter
-
2030250000957 Extruded Panel Nut M6 X 1.0. Package STD, DPSExtruded Panel Nut M6 X 1.0. Package STD, DPS
-
2040705007227 Rear Protector Plate. Package XT, LTDRear Protector Plate. Package XT, LTD
-
2040715000694 Rear Protector Plate. Package HunterRear Protector Plate. Package Hunter
-
2040705007227 Rear Protector Plate. Package STD, DPSRear Protector Plate. Package STD, DPS
-
2050705007038 RH Lateral Skid Plate. Package XT, LTDRH Lateral Skid Plate. Package XT, LTD
-
2050705007038 RH Lateral Skid Plate. Package STD, DPSRH Lateral Skid Plate. Package STD, DPS
-
2055293150104 Pop Rivet 3/16''. Package XT, LTDPop Rivet 3/16''. Package XT, LTD
-
2055293150104 Pop Rivet 3/16''. Package STD, DPSPop Rivet 3/16''. Package STD, DPS
-
2060705007171 Cup. Package XT, LTDCup. Package XT, LTD
-
2060705007171 Cup. Package HunterCup. Package Hunter
-
2060705007171 Cup. Package STD, DPSCup. Package STD, DPS
-
2070210262050 Washer Head Hexagonal Screw. Package XT, LTDWasher Head Hexagonal Screw. Package XT, LTD
-
2070210262050 Washer Head Hexagonal Screw. Package STD, DPSWasher Head Hexagonal Screw. Package STD, DPS
-
2075250200097 Flat Washer. Package XT, LTDFlat Washer. Package XT, LTD
-
2075250200097 Flat Washer. Package STD, DPSFlat Washer. Package STD, DPS
-
2080210262050 Washer Head Hexagonal Screw. Package XT, LTDWasher Head Hexagonal Screw. Package XT, LTD
-
2080210262050 Washer Head Hexagonal Screw. Package HunterWasher Head Hexagonal Screw. Package Hunter
-
2080210262050 Washer Head Hexagonal Screw. Package STD, DPSWasher Head Hexagonal Screw. Package STD, DPS
-
3620291001932 Pad. Package XT, LTDPad. Package XT, LTD
-
3620291001932 Pad. Package STD, DPS. Not ShownPad. Package STD, DPS. Not Shown
