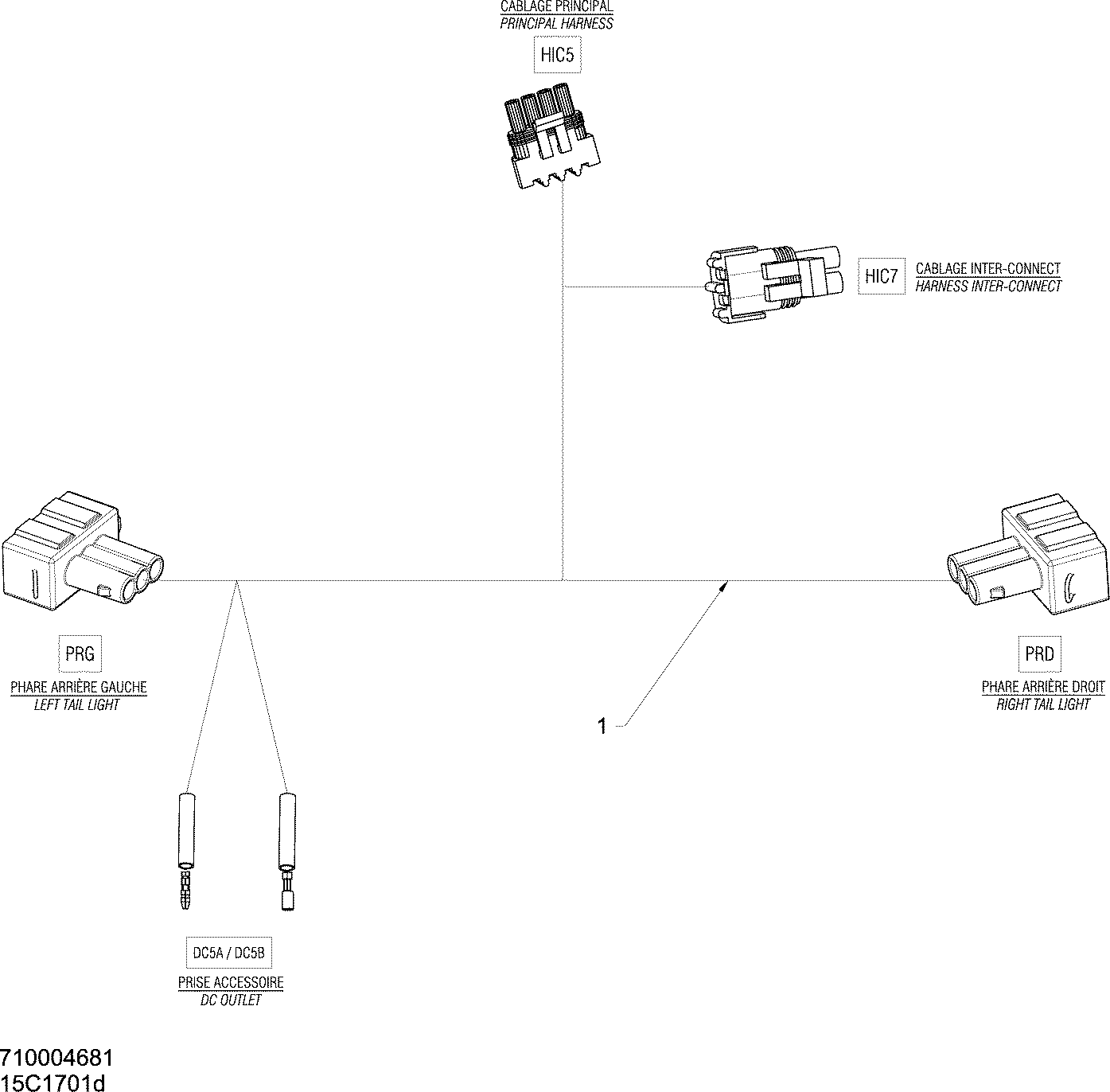

10- Electrical Harness Commander 800R EFI для BRP 1- Commander 800R EFI - 2018
-
№АртикулНазвание
-
710004681 Rear Harness. Except EuropeRear Harness. Except Europe
-
DC5A278001008 Insulated SheathInsulated Sheath
-
DC5A278002261 Female TerminalFemale Terminal
-
DC5B278001007 Insulated SheathInsulated Sheath
-
DC5B710000421 Female TerminalFemale Terminal
-
HIC5278000395 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
HIC5278001065 Wire SealWire Seal
-
HIC5278000223 Female TerminalFemale Terminal
-
HIC7278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
HIC7278000218 Wire SealWire Seal
-
HIC7409007300 Female TerminalFemale Terminal
-
PRD710003167 Connector, 3 PositionsConnector, 3 Positions
-
PRD415128501 SealSeal
-
PRD278000998 Female TerminalFemale Terminal
-
PRG710003167 Connector, 3 PositionsConnector, 3 Positions
-
PRG415128501 SealSeal
-
PRG278000998 Female TerminalFemale Terminal
