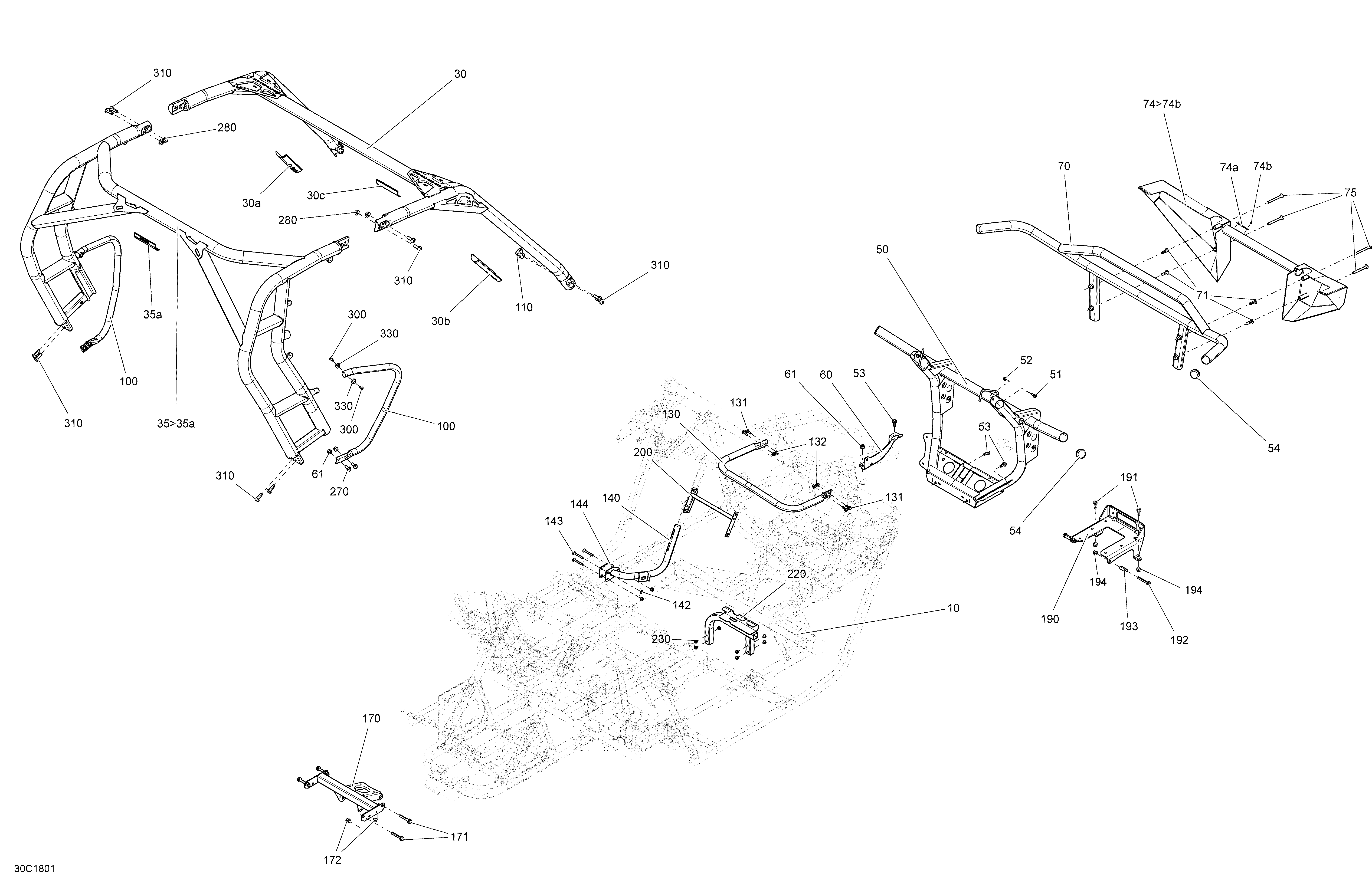

09- Frame Commander Non MAX для BRP 1- Commander 800R EFI - 2018
-
№АртикулНазвание
-
10715004811 Frame KitFrame Kit
-
30>30c715003901 Black Cage Kit. Black Cage. Includes 30 to 30cBlack Cage Kit. Black Cage. Includes 30 to 30c
-
30>30c715003905 Red Cage Kit . Red Cage. Includes 30 to 30cRed Cage Kit . Red Cage. Includes 30 to 30c
-
30a704903679 Warning LabelWarning Label
-
30b704903680 Warning LabelWarning Label
-
30c704903492 Warning LabelWarning Label
-
35>35a715003901 Black Cage Kit. Black CageBlack Cage Kit. Black Cage
-
35>35a715003905 Red Cage Kit . Red Cage. Includes 35 to 35aRed Cage Kit . Red Cage. Includes 35 to 35a
-
35a704903492 Warning LabelWarning Label
-
50705202995 Black Front BumperBlack Front Bumper
-
51207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
52233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
53207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
54705202455 CapCap
-
60705201721 Front Differential SupportFront Differential Support
-
61233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70715000958 Black Front Bumper. All ModelsBlack Front Bumper. All Models
-
70705206379 Red - XT Front Bumper. Package XT - Brushed AluminumRed - XT Front Bumper. Package XT - Brushed Aluminum
-
71250000745 Torx Truss M/S M8 X30. Package XT, LTDTorx Truss M/S M8 X30. Package XT, LTD
-
74>74b705010664 Front Bumper. Package Hunter. Includes 74 to 74bFront Bumper. Package Hunter. Includes 74 to 74b
-
74A704902307 Can Am Logo. Package HunterCan Am Logo. Package Hunter
-
74b293150189 Pop Rivet 1/8'', Black. Package HunterPop Rivet 1/8'', Black. Package Hunter
-
75250000791 Torx Truss M8 X 80. Package HunterTorx Truss M8 X 80. Package Hunter
-
83705202455 Cap. Package XT, Hunter & LTD. Not ShownCap. Package XT, Hunter & LTD. Not Shown
-
100705203640 Black RH Side Protector Tube. Black CageBlack RH Side Protector Tube. Black Cage
-
100705204410 Red RH Front Side Protector Tube. Red CageRed RH Front Side Protector Tube. Red Cage
-
110705203415 Binding BlockBinding Block
-
120705203637 Black LH Side Protector Tube. Black CageBlack LH Side Protector Tube. Black Cage
-
120705204409 Red LH Front Side Protector Tube. Red CageRed LH Front Side Protector Tube. Red Cage
-
130705203332 Black HandleBlack Handle
-
131207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
132233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
140705204399 Black Console HandleBlack Console Handle
-
142233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
143250000317 Torx Screw M6 X 50Torx Screw M6 X 50
-
144705204606 Steel PlateSteel Plate
-
170705203538 Differential HolderDifferential Holder
-
171207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
172233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
190715000704 Winch Plate. Package XT, Hunter & LTDWinch Plate. Package XT, Hunter & LTD
-
191207682534 Hex. Flanged Screw M8 X 25. Package XT, Hunter & LTDHex. Flanged Screw M8 X 25. Package XT, Hunter & LTD
-
192207686044 Hex. Flanged Screw M8 x 60. Package XT, Hunter & LTDHex. Flanged Screw M8 x 60. Package XT, Hunter & LTD
-
193705202499 Bushing. Package XT, Hunter & LTDBushing. Package XT, Hunter & LTD
-
194233281414 Hex. Flanged Elastic Nut M8. Package XT, Hunter & LTDHex. Flanged Elastic Nut M8. Package XT, Hunter & LTD
-
200705203330 Reinforcement PanelReinforcement Panel
-
230293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
280233101464 Hex. Elastic Flange Nut , M10 X 1.5Hex. Elastic Flange Nut , M10 X 1.5
-
300250000789 Torx Truss M6X14Torx Truss M6X14
-
310250000848 Screw Pan M10 X 30Screw Pan M10 X 30
-
330705202223 Offset WasherOffset Washer
