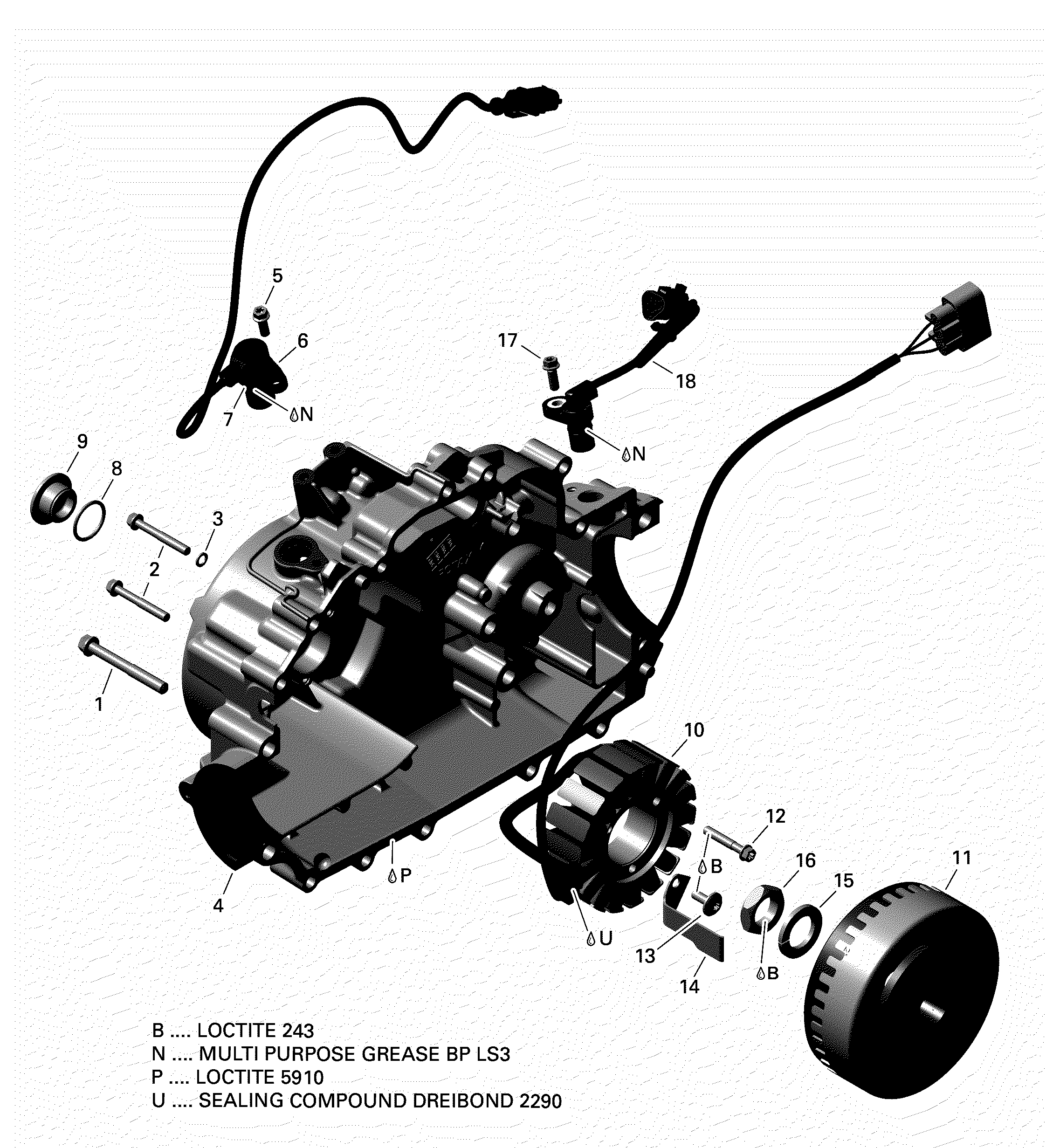

03- Magneto для BRP 1- Defender HD5 - 2018
-
№АртикулНазвание
-
1420440402 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
2420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
3420230415 Seal WasherSeal Washer
-
5420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
6>7420966570 Crankshaft Position Sensor Ass'yCrankshaft Position Sensor Ass'y
-
7420431580 O-RingO-Ring
-
8420430782 O-RingO-Ring
-
9420241633 Plug Screw M24X 1.5Plug Screw M24X 1.5
-
10420685921 Stator Plate, 480WStator Plate, 480W
-
11420686275 Magneto FlywheelMagneto Flywheel
-
12420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
13420241529 Torx Screw M6 X 16Torx Screw M6 X 16
-
14420251270 Inner Cable CoverInner Cable Cover
-
15420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
16420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
17420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
18420265621 Speed SensorSpeed Sensor
