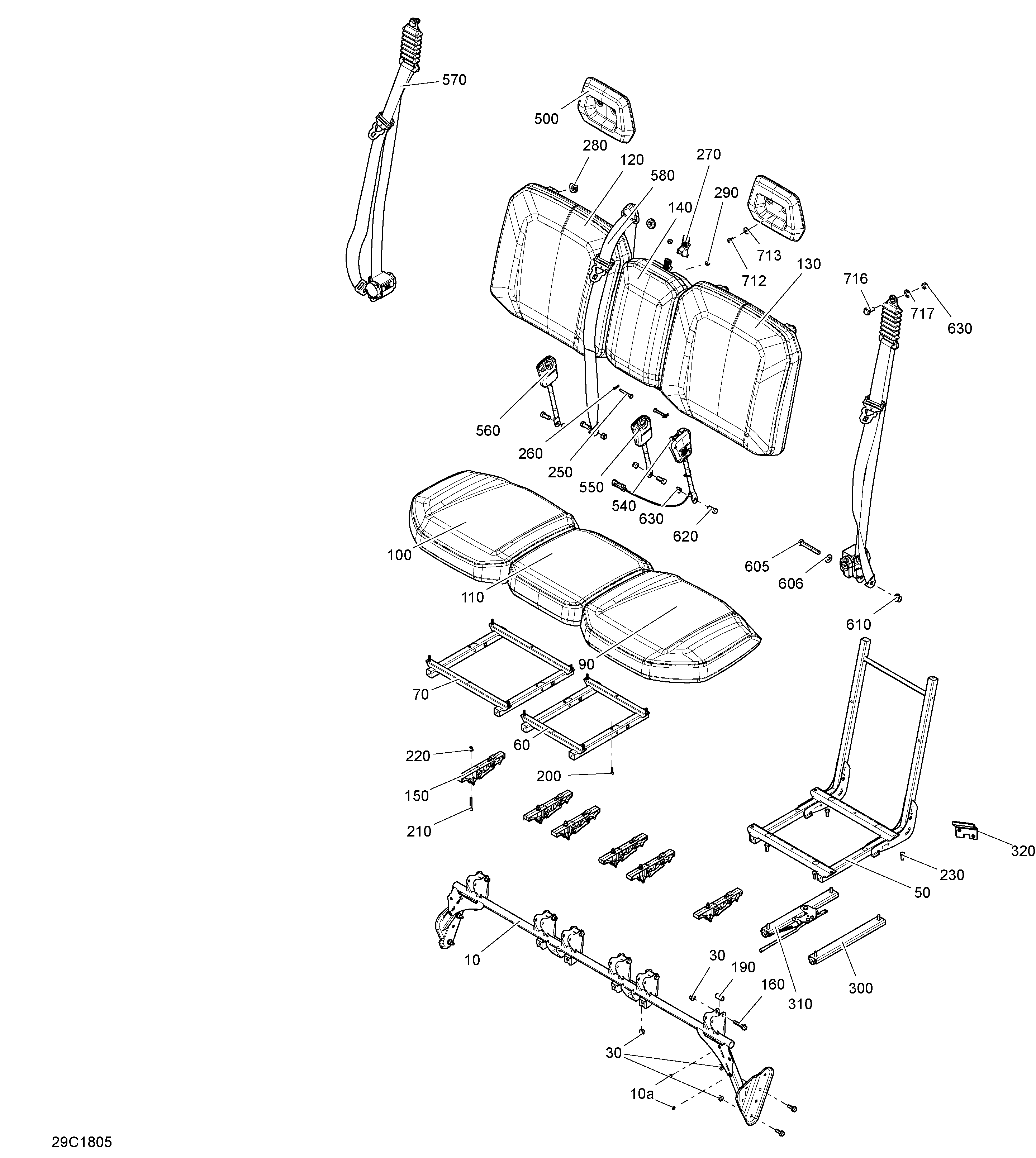

09- Seat - HD5 для BRP 1- Defender HD5 - 2018
-
№АртикулНазвание
-
10708002817 Seat Support. Package BASE. Includes 10 to 10aSeat Support. Package BASE. Includes 10 to 10a
-
10708002817 Seat Support. Package DPS. Includes 10 to 10aSeat Support. Package DPS. Includes 10 to 10a
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
60708002815 Mid Seat MemberMid Seat Member
-
90708002544 LH Cushion Ass'y. Package DPSLH Cushion Ass'y. Package DPS
-
90708002544 LH Cushion Ass'y. Package BASELH Cushion Ass'y. Package BASE
-
100708001498 RH Cushion Ass'y. Package BASERH Cushion Ass'y. Package BASE
-
100708001498 RH Cushion Ass'y. Package DPSRH Cushion Ass'y. Package DPS
-
110708001629 Central Cushion Ass'y. Package BASECentral Cushion Ass'y. Package BASE
-
110708001629 Central Cushion Ass'y. Package DPSCentral Cushion Ass'y. Package DPS
-
120708001701 Backrest Ass'y. Package DPSBackrest Ass'y. Package DPS
-
120708001701 Backrest Ass'y. Package BASEBackrest Ass'y. Package BASE
-
140708001630 Center Backrest Ass'y. Package BASECenter Backrest Ass'y. Package BASE
-
140708001630 Center Backrest Ass'y. Package DPSCenter Backrest Ass'y. Package DPS
-
200250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
210207064544 Hex. Screw M6 X 45Hex. Screw M6 X 45
-
220233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
250250400069 PinPin
-
260269800431 HairpinHairpin
-
270269501487 LatchLatch
-
280517303756 GrommetGrommet
-
500708001721 Head RestHead Rest
-
540708002331 Driver BuckleDriver Buckle
-
550708002330 Middle BuckleMiddle Buckle
-
560708002329 Passenger BucklePassenger Buckle
-
570708002642 Safety BeltSafety Belt
-
580708002643 Safety BeltSafety Belt
-
605207028046 Hex. Screw M12 X 80Hex. Screw M12 X 80
-
606250200102 Flat Washer M12Flat Washer M12
-
610233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
620250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
630250100183 Lock Nut Nylon 7/16Lock Nut Nylon 7/16
-
712250000721 Torx ScrewTorx Screw
-
713250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
716708000890 Safety Belt ScrewSafety Belt Screw
-
717708000891 Position WasherPosition Washer
