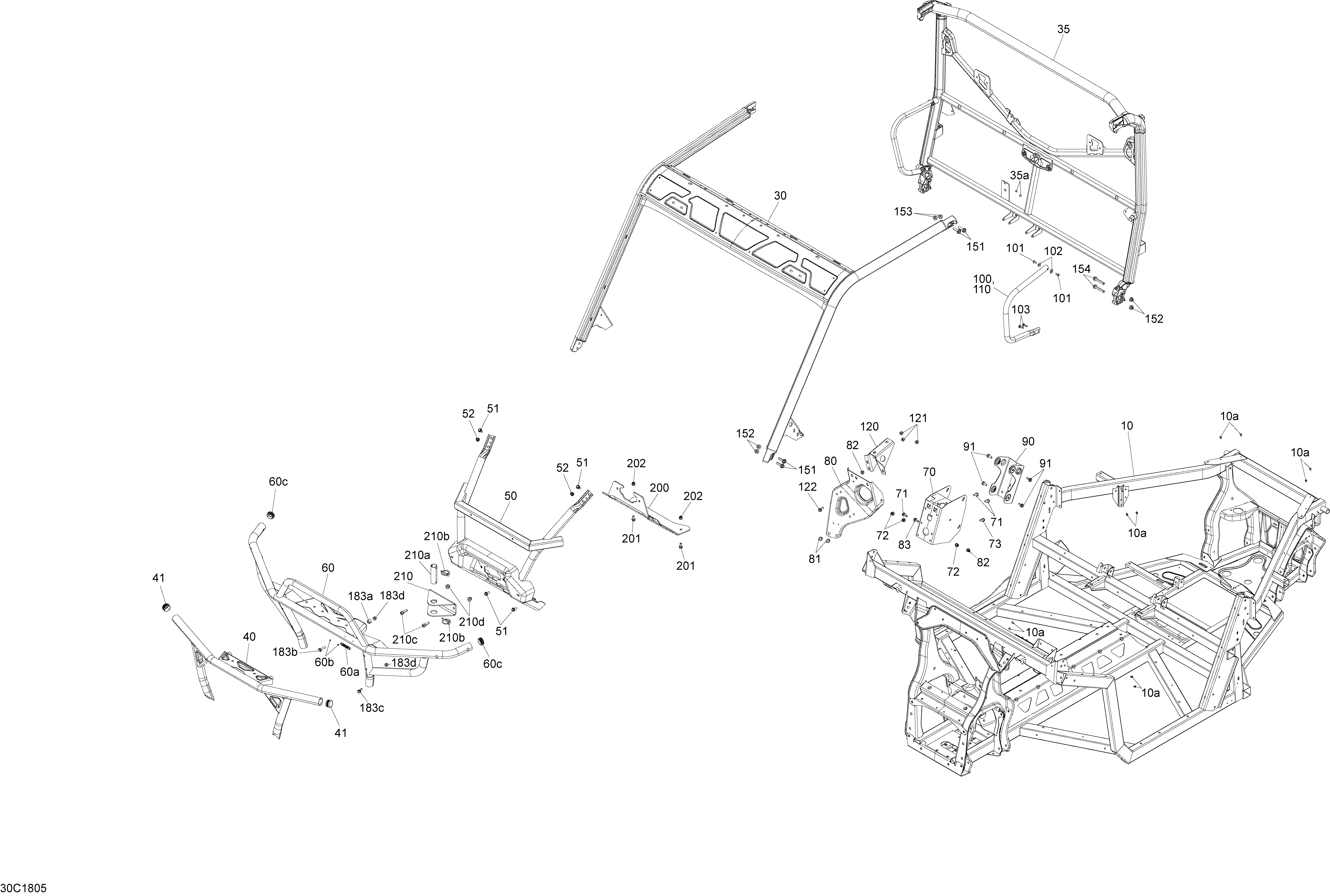

09- Frame Defender Non MAX для BRP 1- Defender HD5 - 2018
-
№АртикулНазвание
-
10715005221 Frame Ass'y Black. Includes 10 to 10aFrame Ass'y Black. Includes 10 to 10a
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30715005047 Black, Front Cage Kit. Model Without CabBlack, Front Cage Kit. Model Without Cab
-
30715005057 Front Cage Profile Kit. Model With CabFront Cage Profile Kit. Model With Cab
-
35715003569 Black, Rear Cage Kit. Includes 35 to 35aBlack, Rear Cage Kit. Includes 35 to 35a
-
35a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
40715004407 XT Front Bumper. Incl 40a>40dXT Front Bumper. Incl 40a>40d
-
40a250000806 Torx Truss M8 X 90. Not IllustratedTorx Truss M8 X 90. Not Illustrated
-
40b705206398 Bumper Spacer. Not IllustratedBumper Spacer. Not Illustrated
-
40c233281414 Hex. Flanged Elastic Nut M8. Not IllustratedHex. Flanged Elastic Nut M8. Not Illustrated
-
40d207682044 Hex. Flanged Screw M8 X 20. Not IllustratedHex. Flanged Screw M8 X 20. Not Illustrated
-
41705202455 CapCap
-
50705203999 Front BumperFront Bumper
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
60715002418 Front Bumper Ass'yFront Bumper Ass'y
-
60a704902307 Can Am LogoCan Am Logo
-
60b293150189 Pop Rivet 1/8'', BlackPop Rivet 1/8'', Black
-
60c705205318 O38MM CapO38MM Cap
-
70705206316 PlatePlate
-
71207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
72233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
73207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
80705206185 DPS SupportDPS Support
-
81207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
82233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
83207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
90705204429 Steering SupportSteering Support
-
91207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
100705204594 LH Protector TubeLH Protector Tube
-
101250000789 Torx Truss M6X14Torx Truss M6X14
-
102705202223 Offset WasherOffset Washer
-
103207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
110705204592 RH Protector TubeRH Protector Tube
-
120705205171 Shifting Module SupportShifting Module Support
-
121233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
122207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
200705205847 Front Skid PlateFront Skid Plate
-
201207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
202233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
210705206240 Front Coupling Device Ass'y. Includes 210 to 210dFront Coupling Device Ass'y. Includes 210 to 210d
-
210a605456511 PinPin
-
210b605456518 PinPin
-
210c205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
210d233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
