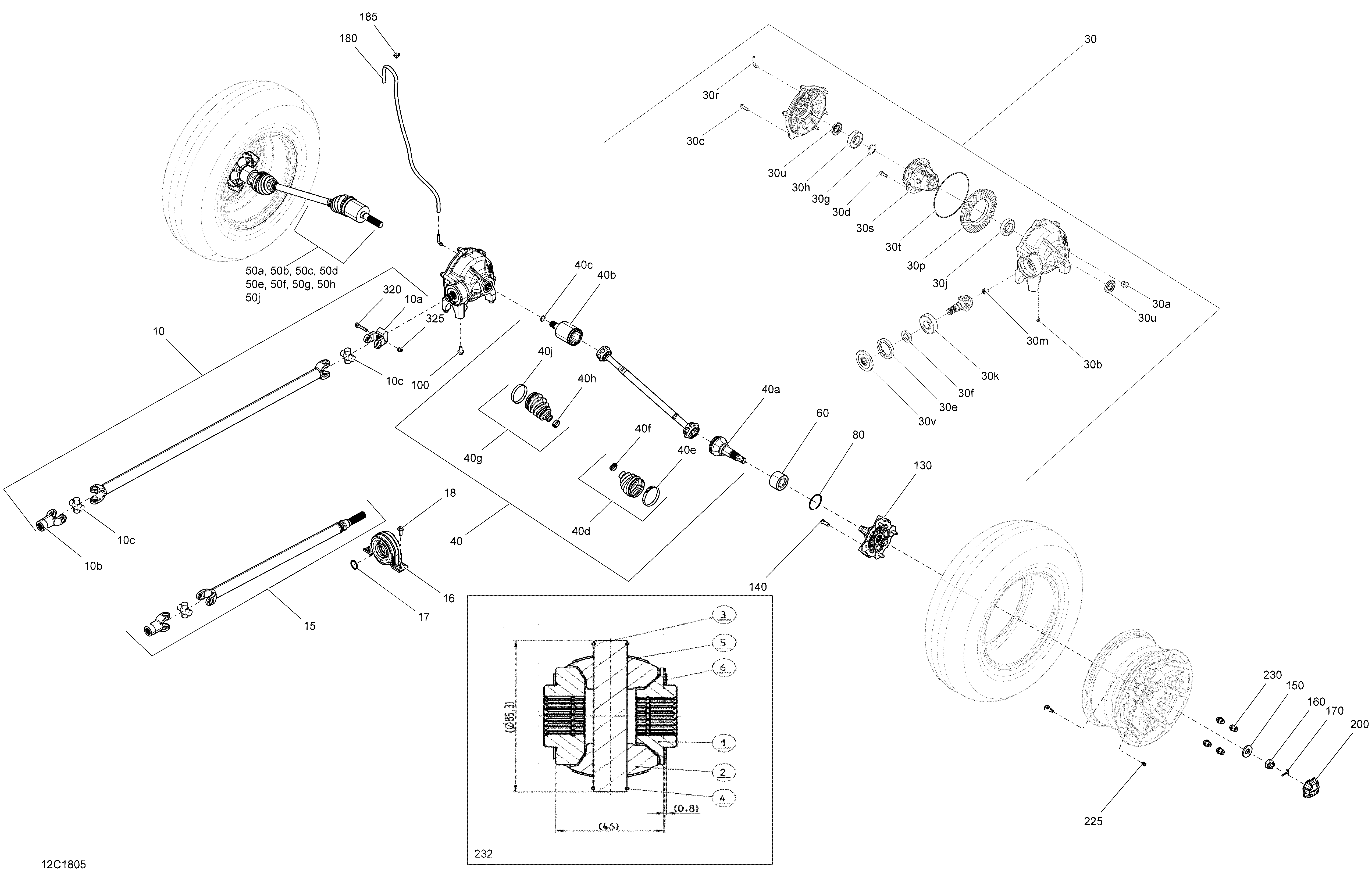

07- Front Drive - Defender для BRP 1- Defender HD5 - 2018
-
№АртикулНазвание
-
10>10c705402125 Axle Ass'y. Engine HD10. Includes 10 to 10cAxle Ass'y. Engine HD10. Includes 10 to 10c
-
10>10c705402125 Axle Ass'y. Engine HD8. Includes 10 to 10cAxle Ass'y. Engine HD8. Includes 10 to 10c
-
10>10c705402126 Drive Axle Ass'y. Engine HD5. Includes 10 to 10cDrive Axle Ass'y. Engine HD5. Includes 10 to 10c
-
10a715900402 J-Joint Cross KitJ-Joint Cross Kit
-
10b715900400 Fixed YokeFixed Yoke
-
10c715900401 YokeYoke
-
15705402045 Axle Ass'y. MAX ModelsAxle Ass'y. MAX Models
-
16705401938 Bearing. MAX ModelsBearing. MAX Models
-
17293370098 Snap Ring. MAX ModelsSnap Ring. MAX Models
-
18207502546 Hex. Flanged Screw M10 X 25. MAX ModelsHex. Flanged Screw M10 X 25. MAX Models
-
30>30v705402028 Differential. Package CAB. Includes 30 to 30vDifferential. Package CAB. Includes 30 to 30v
-
30>30v705402028 Differential. Package DPS. Includes 30 to 30vDifferential. Package DPS. Includes 30 to 30v
-
30>30v705402028 Differential. Package Hunter. Includes 30 to 30vDifferential. Package Hunter. Includes 30 to 30v
-
30>30v705402028 Differential. Package XT. Includes 30 to 30vDifferential. Package XT. Includes 30 to 30v
-
30>30v705402028 Differential. Package PRO. Includes 30 to 30vDifferential. Package PRO. Includes 30 to 30v
-
30>30v705402029 Differential. Package BASE. Includes 30 to 30vDifferential. Package BASE. Includes 30 to 30v
-
30>30v705402029 Differential. Package STD. Includes 30 to 30vDifferential. Package STD. Includes 30 to 30v
-
30a705501889 Fill Level PlugFill Level Plug
-
30b705501885 Drain PlugDrain Plug
-
30c705501886 ScrewScrew
-
30d705401818 ScrewScrew
-
30e705401819 NutNut
-
30f705401820 NutNut
-
30g705401604 ShimShim
-
30h705401606 Ball BearingBall Bearing
-
30j705401934 Ball BearingBall Bearing
-
30k705401821 Ball BearingBall Bearing
-
30m705401607 Needle BearingNeedle Bearing
-
30n705401667 Front CoverFront Cover
-
30p705401822 36Th Gear36Th Gear
-
30q705401933 Pinion 10 th.Pinion 10 th.
-
30r705401935 Vent ValveVent Valve
-
30s705401886 Differential. Package CABDifferential. Package CAB
-
30s705401886 Differential. Package DPSDifferential. Package DPS
-
30s705401886 Differential. Package HunterDifferential. Package Hunter
-
30s705401886 Differential. Package XTDifferential. Package XT
-
30s705401886 Differential. Package PRODifferential. Package PRO
-
30s705401887 Differential. Package BASEDifferential. Package BASE
-
30s705401887 DifferentialDifferential
-
30t705501881 Oil SealOil Seal
-
30u705401836 Oil SealOil Seal
-
30v705401827 Oil SealOil Seal
-
40>40j705401936 CV Joint RH. Package BASE. Includes 40 to 40jCV Joint RH. Package BASE. Includes 40 to 40j
-
40>40j705401936 CV Joint RH. Package XT. Includes 40 to 40jCV Joint RH. Package XT. Includes 40 to 40j
-
40>40j705401936 CV Joint RH. Package PRO. Includes 40 to 40jCV Joint RH. Package PRO. Includes 40 to 40j
-
40>40j705401936 CV Joint RH. Package Hunter. Includes 40 to 40jCV Joint RH. Package Hunter. Includes 40 to 40j
-
40>40j705401936 CV Joint RH. Package STD. Includes 40 to 40jCV Joint RH. Package STD. Includes 40 to 40j
-
40>40j705401936 CV Joint RH. Package DPS. Includes 40 to 40jCV Joint RH. Package DPS. Includes 40 to 40j
-
40>40j705402170 Half Shaft RH. Package CAB. Includes 40 to 40jHalf Shaft RH. Package CAB. Includes 40 to 40j
-
40a715900440 CV JointCV Joint
-
40b715900441 Plunging Joint RHPlunging Joint RH
-
40c705401349 Circlip JointCirclip Joint
-
40d705401345 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
40e715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
40f715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
40g705401355 Boot Kit, Differential SideBoot Kit, Differential Side
-
40h715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
40j715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
50>50j705401937 CV Joint LH. Package BASE. Includes 50 to 50jCV Joint LH. Package BASE. Includes 50 to 50j
-
50>50j705401937 CV Joint LH. Package DPS. Includes 50 to 50jCV Joint LH. Package DPS. Includes 50 to 50j
-
50>50j705401937 CV Joint LH. Package Hunter. Includes 50 to 50jCV Joint LH. Package Hunter. Includes 50 to 50j
-
50>50j705401937 CV Joint LH. Package STD. Includes 50 to 50jCV Joint LH. Package STD. Includes 50 to 50j
-
50>50j705401937 CV Joint LH. Package XT. Includes 50 to 50jCV Joint LH. Package XT. Includes 50 to 50j
-
50>50j705401937 CV Joint LH. Package PRO. Includes 50 to 50jCV Joint LH. Package PRO. Includes 50 to 50j
-
50>50j705402171 Half Shaft LH. Package CAB. Includes 50 to 50jHalf Shaft LH. Package CAB. Includes 50 to 50j
-
50a715900440 CV JointCV Joint
-
50b715900442 Plunging Joint LHPlunging Joint LH
-
50c705401349 Circlip JointCirclip Joint
-
50d705401345 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
50e715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
50f715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
50g705401355 Boot Kit, Differential SideBoot Kit, Differential Side
-
50h715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
50j715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
60293350118 Cone BearingCone Bearing
-
80293370019 CirclipCirclip
-
100207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
130705502338 Wheel HubWheel Hub
-
140250300055 Wheel Stud M10 X 1.25Wheel Stud M10 X 1.25
-
150250200170 Conical Spring Washer M20Conical Spring Washer M20
-
160250100193 Castle Nut M20Castle Nut M20
-
170250400084 Cotter PinCotter Pin
-
180415080200 Hose, PolyurethaneHose, Polyurethane
-
185414227300 ClipClip
-
200705400928 Wheel Cap. Engine HD5 Package DPSWheel Cap. Engine HD5 Package DPS
-
200705401541 Wheel Cap. All Models Except Engine HD5 Package DPSWheel Cap. All Models Except Engine HD5 Package DPS
-
225293000110 Valve CapValve Cap
-
230250100042 Steel Wheel Nut. Engine HD5 Package BASESteel Wheel Nut. Engine HD5 Package BASE
-
230250100042 Steel Wheel Nut. Internationnal Models Package STDSteel Wheel Nut. Internationnal Models Package STD
-
230250100042 Steel Wheel Nut. Engine HD8 Defender Models Package BASESteel Wheel Nut. Engine HD8 Defender Models Package BASE
-
230250100042 Steel Wheel Nut. North America Models Package STDSteel Wheel Nut. North America Models Package STD
-
230250100042 Steel Wheel Nut. Engine HD10 Package BASESteel Wheel Nut. Engine HD10 Package BASE
-
230250100184 Black Wheel Nut M10 X 1.25. Package XTBlack Wheel Nut M10 X 1.25. Package XT
-
230250100184 Black Wheel Nut M10 X 1.25. Package HunterBlack Wheel Nut M10 X 1.25. Package Hunter
-
230250100184 Black Wheel Nut M10 X 1.25. Package CABBlack Wheel Nut M10 X 1.25. Package CAB
-
230250100184 Black Wheel Nut M10 X 1.25. Package DPS Break Up Country Camo ModelsBlack Wheel Nut M10 X 1.25. Package DPS Break Up Country Camo Models
-
230250100184 Black Wheel Nut M10 X 1.25. Package PROBlack Wheel Nut M10 X 1.25. Package PRO
-
230250100184 Black Wheel Nut M10 X 1.25. Europe Models Package STDBlack Wheel Nut M10 X 1.25. Europe Models Package STD
-
230250100185 Chrome Wheel Nut M10 X 1.25. Package DPS 2000 Yellow ModelsChrome Wheel Nut M10 X 1.25. Package DPS 2000 Yellow Models
-
230250100185 Chrome Wheel Nut M10 X 1.25. Package DPS Pure Magnesium ModelsChrome Wheel Nut M10 X 1.25. Package DPS Pure Magnesium Models
-
230250100185 Chrome Wheel Nut M10 X 1.25. Package DPS Squadron Green ModelsChrome Wheel Nut M10 X 1.25. Package DPS Squadron Green Models
-
230250100185 Chrome Wheel Nut M10 X 1.25. Package DPS Intense Red ModelsChrome Wheel Nut M10 X 1.25. Package DPS Intense Red Models
-
232703501007 Side Gear KitSide Gear Kit
-
230250100184 Black Wheel Nut M10 X 1.25. MAX Models Package BASEBlack Wheel Nut M10 X 1.25. MAX Models Package BASE
-
320250000952 Hex. Flanged Screw M8 X 42Hex. Flanged Screw M8 X 42
-
325233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
