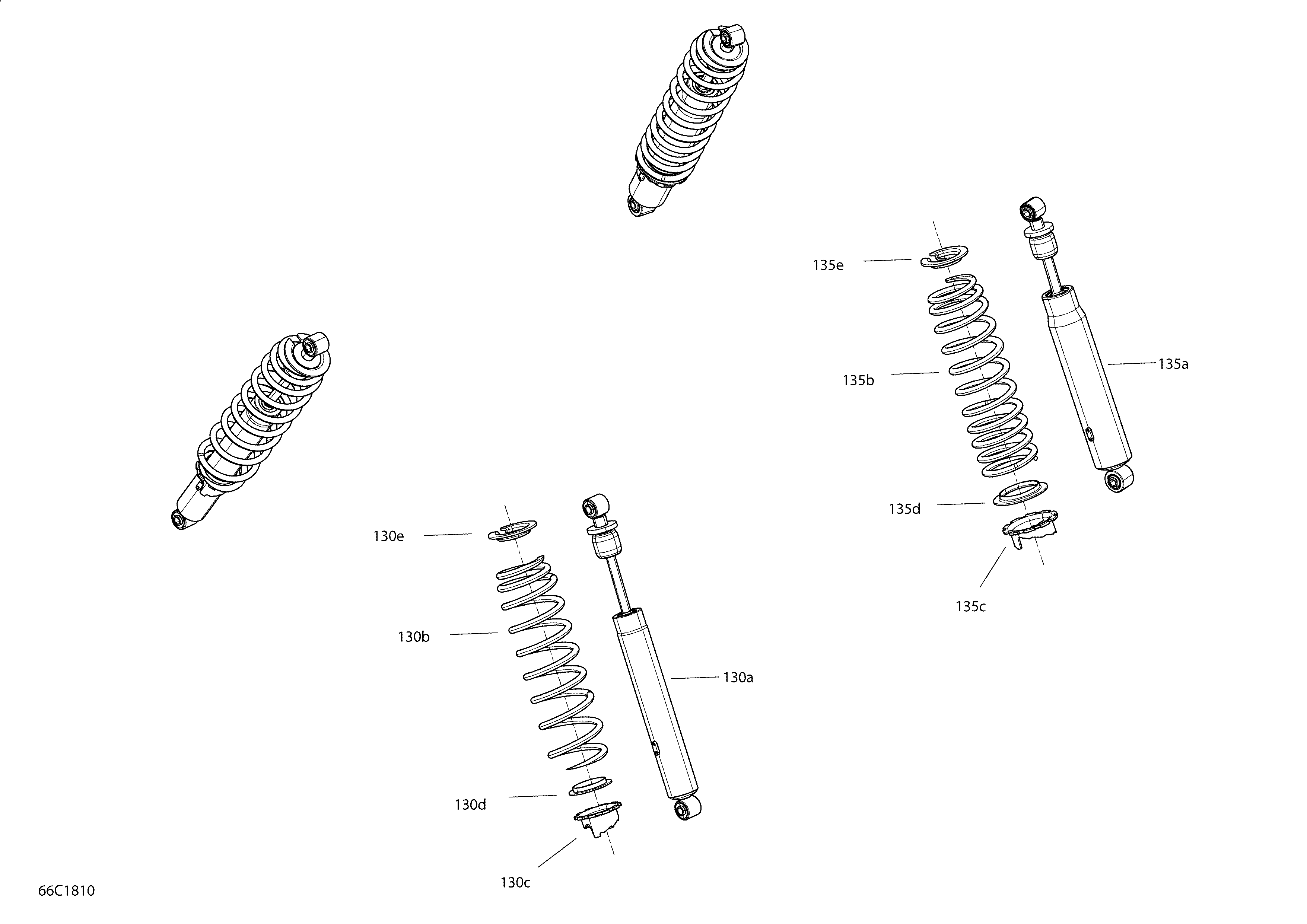

07- Shocks - XT CAB для BRP 7- Defender MAX HD10 - 2018
-
№АртикулНазвание
-
130a706203062 Front ShockFront Shock
-
130b706203063 Spring. Non Max ModelSpring. Non Max Model
-
130b706203178 Spring. Max ModelSpring. Max Model
-
130c706001893 Adjust RingAdjust Ring
-
130d503187500 Spring GuideSpring Guide
-
130e706001894 Spring CupSpring Cup
-
135a706002485 ShockShock
-
135b706002898 Spring. Non Max ModelSpring. Non Max Model
-
135b706003023 Spring. Max ModelSpring. Max Model
-
135c706000910 Adjustable RingAdjustable Ring
-
135d706000911 Protector RingProtector Ring
-
135e706001894 Spring CupSpring Cup
