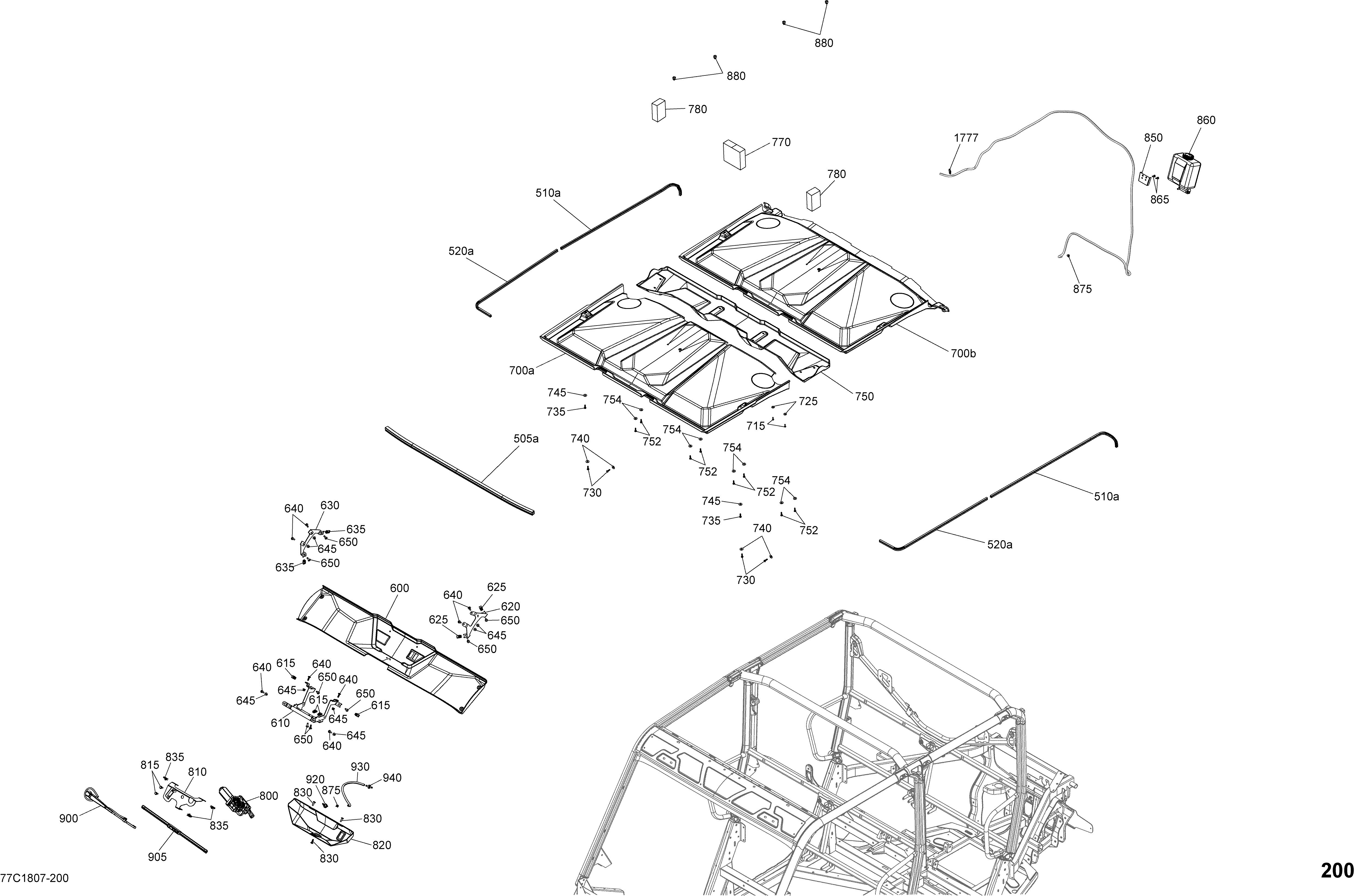

09- Cab Interior - Roof для BRP 7- Defender MAX HD10 - 2018
-
№АртикулНазвание
-
505a293250361 GasketGasket
-
510a293250393 ExtrusionExtrusion
-
520a293250393 ExtrusionExtrusion
-
600715003760 Radio Support KitRadio Support Kit
-
610705800060 SupportSupport
-
615250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
620705800108 LH SupportLH Support
-
625250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
630705800109 RH SupportRH Support
-
635250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
640250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
645233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
650207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
700a715003582 Max Roof Liner Ass'yMax Roof Liner Ass'y
-
700b715003582 Max Roof Liner Ass'yMax Roof Liner Ass'y
-
715250000759 Torx-Truss Pt K40 X 16Torx-Truss Pt K40 X 16
-
725250200025 Washer M5Washer M5
-
730250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
735250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
740234062670 Flat Washer, StainlessFlat Washer, Stainless
-
745234062670 Flat Washer, StainlessFlat Washer, Stainless
-
750705800132 Roof Liner SupportRoof Liner Support
-
752250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
754234062670 Flat Washer, StainlessFlat Washer, Stainless
-
770705800221 Roof Liner SpacerRoof Liner Spacer
-
780705800255 Roof Liner SpacerRoof Liner Spacer
-
800705010657 Wiper MotorWiper Motor
-
810705800073 Cover Support Ass'yCover Support Ass'y
-
815207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
820705800072 Cover, Wiper MotorCover, Wiper Motor
-
830250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
835250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
850705800086 Windshield Washer Tank SupportWindshield Washer Tank Support
-
860705800039 Windshield Washer TankWindshield Washer Tank
-
865250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
875414554800 Spring ClampSpring Clamp
-
880414227300 ClipClip
-
900705010656 Wiper ArmWiper Arm
-
905705011443 Winshield WiperWinshield Wiper
-
920705800103 90° Elbow Connector90° Elbow Connector
-
930415080200 Hose, PolyurethaneHose, Polyurethane
-
940275500398 Check ValveCheck Valve
-
1777293750008 Tie-Rap 350 mmTie-Rap 350 mm
