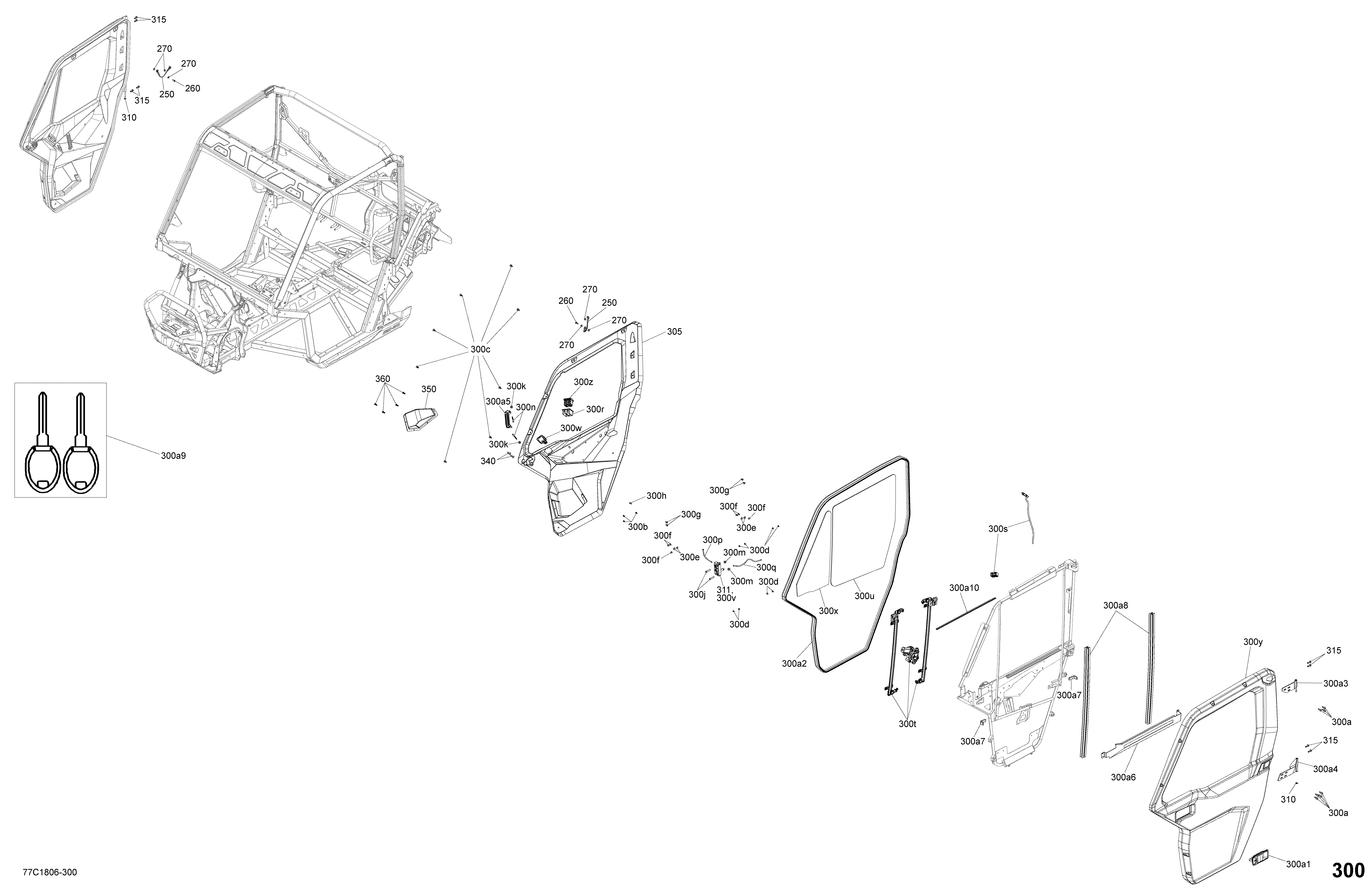

09- Cab Interior - Doors для BRP 7- Defender MAX HD10 - 2018
-
№АртикулНазвание
-
250703500982 Door Limit Device KitDoor Limit Device Kit
-
260250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
270234062670 Flat Washer, StainlessFlat Washer, Stainless
-
300705800307 LH Door Ass'y. Includes 300 to 300a10LH Door Ass'y. Includes 300 to 300a10
-
300705800308 RH Door Ass'y. Includes 300 to 300a10RH Door Ass'y. Includes 300 to 300a10
-
300a250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
300b205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
300c293730011 Black DartBlack Dart
-
300d205460860 Socket Screw M6 X 8Socket Screw M6 X 8
-
300e234062670 Flat Washer, StainlessFlat Washer, Stainless
-
300f250000747 TORX-TRUSS M/S M6 X 10TORX-TRUSS M/S M6 X 10
-
300g250000789 Torx Truss M6X14Torx Truss M6X14
-
300h250000616 Socket Screw, M6 X 16Socket Screw, M6 X 16
-
300j205484060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
300k233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
300m233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
300n207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
300p715900493 -LH Latch Cable 2.4''-LH Latch Cable 2.4''
-
300p715900494 -RH Latch Cable 2.9''-RH Latch Cable 2.9''
-
300q715900504 -Interior Latch Cable 28''-Interior Latch Cable 28''
-
300r715900526 LH Power Window Switch HousingLH Power Window Switch Housing
-
300r715900527 RH Power Window Switch HousingRH Power Window Switch Housing
-
300s705800047 Driver Door HarnessDriver Door Harness
-
300s705800050 Passenger Door HarnessPassenger Door Harness
-
300t705800046 LH Window ActuatorLH Window Actuator
-
300t705800051 RH Window ActuatorRH Window Actuator
-
300u705800016 LH GlassLH Glass
-
300u705800025 RH GlassRH Glass
-
300v703500915 LH Interior Latch KitLH Interior Latch Kit
-
300v703500916 RH Interior Latch KitRH Interior Latch Kit
-
300w703500915 LH Interior Latch KitLH Interior Latch Kit
-
300w703500916 RH Interior Latch KitRH Interior Latch Kit
-
300x705800044 LH GlassLH Glass
-
300x705800052 RH GlassRH Glass
-
300y705800320 LH Door Outer PanelLH Door Outer Panel
-
300y705800321 RH Door Outer PanelRH Door Outer Panel
-
300z705800048 Window SwitchWindow Switch
-
300z705800048 Window SwitchWindow Switch
-
300a1705800015 Exterior Paddle LatchExterior Paddle Latch
-
300a2705800289 Seal 705800290 - 5000 MMSeal 705800290 - 5000 MM
-
300a3703500917 LH Hinge KitLH Hinge Kit
-
300a3703500918 RH Hinge KitRH Hinge Kit
-
300a4703500917 LH Hinge KitLH Hinge Kit
-
300a4703500918 RH Hinge KitRH Hinge Kit
-
300a5705800324 Interior Handle LHInterior Handle LH
-
300a5705800325 Interior Handle RHInterior Handle RH
-
300a6705800148 LH Door Frame BracketLH Door Frame Bracket
-
300a6705800149 RH Door Frame BracketRH Door Frame Bracket
-
300a7705800150 Window Guide BracketWindow Guide Bracket
-
300a8705800151 Window Guide ExtrusionWindow Guide Extrusion
-
300a9705800184 Key SetKey Set
-
300a10705800293 Flocked Beltline Trim 705800294 - 600 MMFlocked Beltline Trim 705800294 - 600 MM
-
305715003567 Door Panel Kit LHDoor Panel Kit LH
-
305715003568 Door Panel Kit RHDoor Panel Kit RH
-
310293370125 Retaining RingRetaining Ring
-
311703500915 LH Interior Latch KitLH Interior Latch Kit
-
311703500916 RH Interior Latch KitRH Interior Latch Kit
-
315250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
340250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
350705800145 LH PocketLH Pocket
-
350705800146 RH PocketRH Pocket
-
360705009405 Plastic DartPlastic Dart
