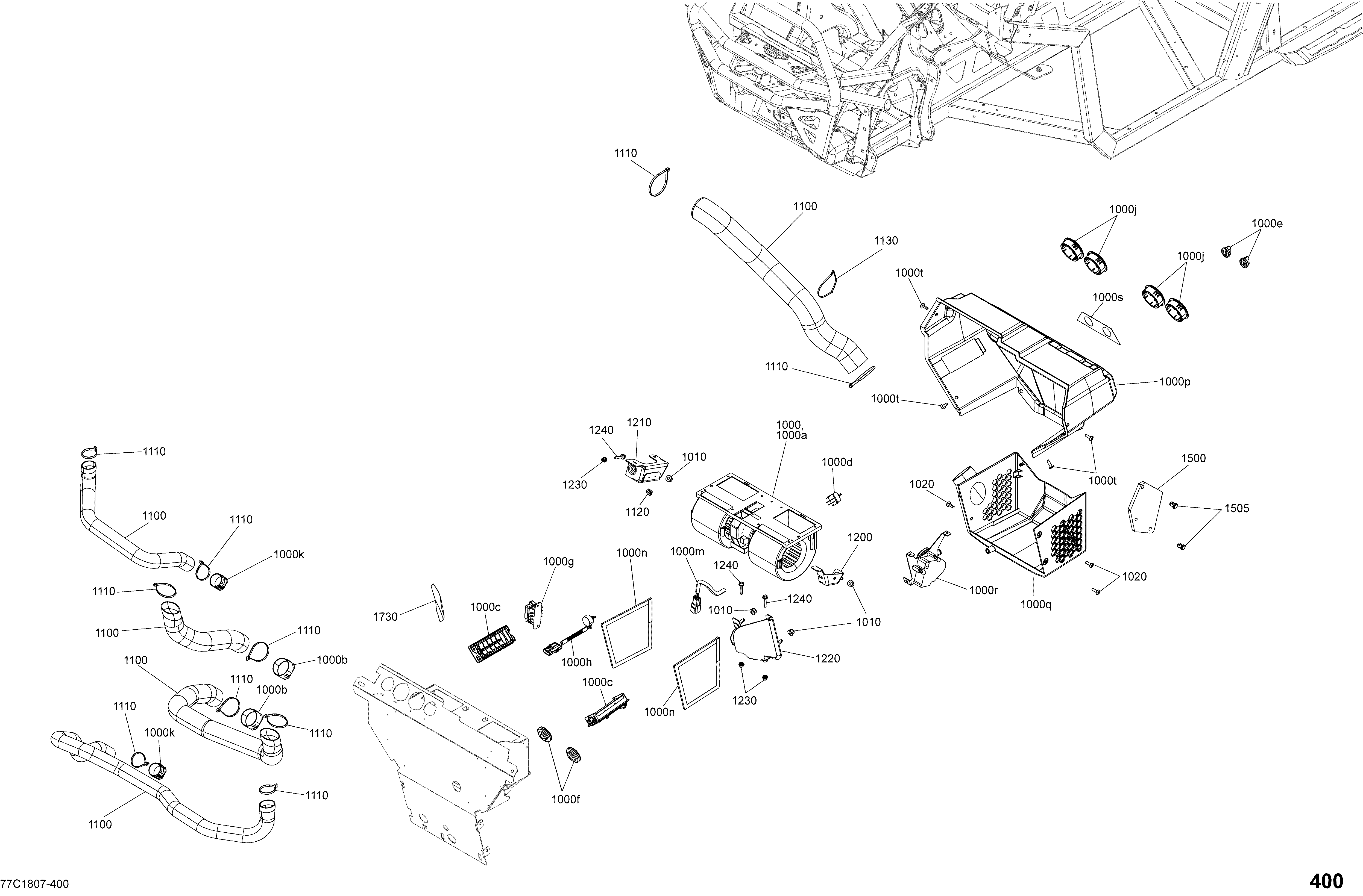

09- Cab Interior - Dashboard для BRP 7- Defender MAX HD10 - 2018
-
№АртикулНазвание
-
1000>1000t715001978 Defrost, Heat and Ventilation System. Includes 1000 to 1000tDefrost, Heat and Ventilation System. Includes 1000 to 1000t
-
1000a520001536 FanFan
-
1000b520001672 Duct AdaptorDuct Adaptor
-
1000c520001673 Rectangular GridRectangular Grid
-
1000d520001674 Fan SwitchFan Switch
-
1000e520001675 ButtonButton
-
1000f520001676 Grommet 5/8''Grommet 5/8''
-
1000g520001679 Fuse BoxFuse Box
-
1000h520001680 PotentiometerPotentiometer
-
1000j520001681 Round GridRound Grid
-
1000k520001682 Duct AdaptorDuct Adaptor
-
1000m520001683 Wiring HarnessWiring Harness
-
1000n520001537 FilterFilter
-
1000p520001546 ConsoleConsole
-
1000q520001626 Lower CoverLower Cover
-
1000r520001685 Valve Ass'y 5/8''Valve Ass'y 5/8''
-
1000s520001686 HVAC DecalHVAC Decal
-
1000t250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1010233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1020250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1100520001643 Air Duct KitAir Duct Kit
-
1110293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
1120293750062 Tie Rap ClipTie Rap Clip
-
1130293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
1200520001619 LH SupportLH Support
-
1210520001621 RH SupportRH Support
-
1220520001623 Central SupportCentral Support
-
1230250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
1240207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
1505293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1730704906818 Protector DecalProtector Decal
