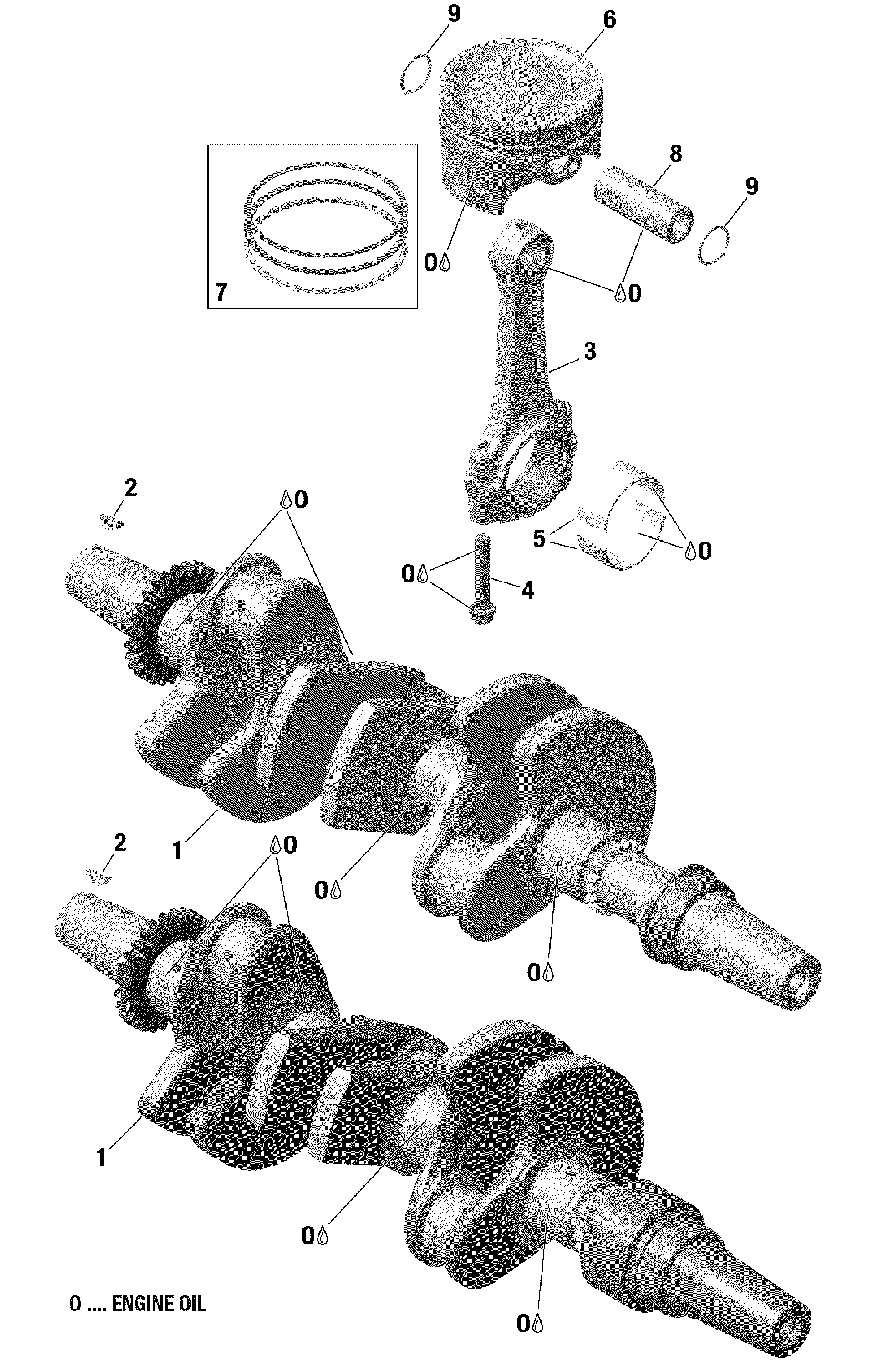

01- Crankshaft And Pistons 900 HO для BRP 1- Maverick X3 900HO - 2018
-
№АртикулНазвание
-
1420819787 CrankshaftCrankshaft
-
1420246571 Woodruff KeyWoodruff Key
-
3420917706 Connecting Rod. Includes 3 to 4Connecting Rod. Includes 3 to 4
-
4420641790 Connecting Rod Screw M7 X 1Connecting Rod Screw M7 X 1
-
5420933191 Plain BearingPlain Bearing
-
6420892821 Piston Ass'y, 73.958 mm. Includes 6 to 7Piston Ass'y, 73.958 mm. Includes 6 to 7
-
7420892824 Piston Ring SetPiston Ring Set
-
8420916510 Piston PinPiston Pin
-
9420845810 Piston CirclipPiston Circlip
