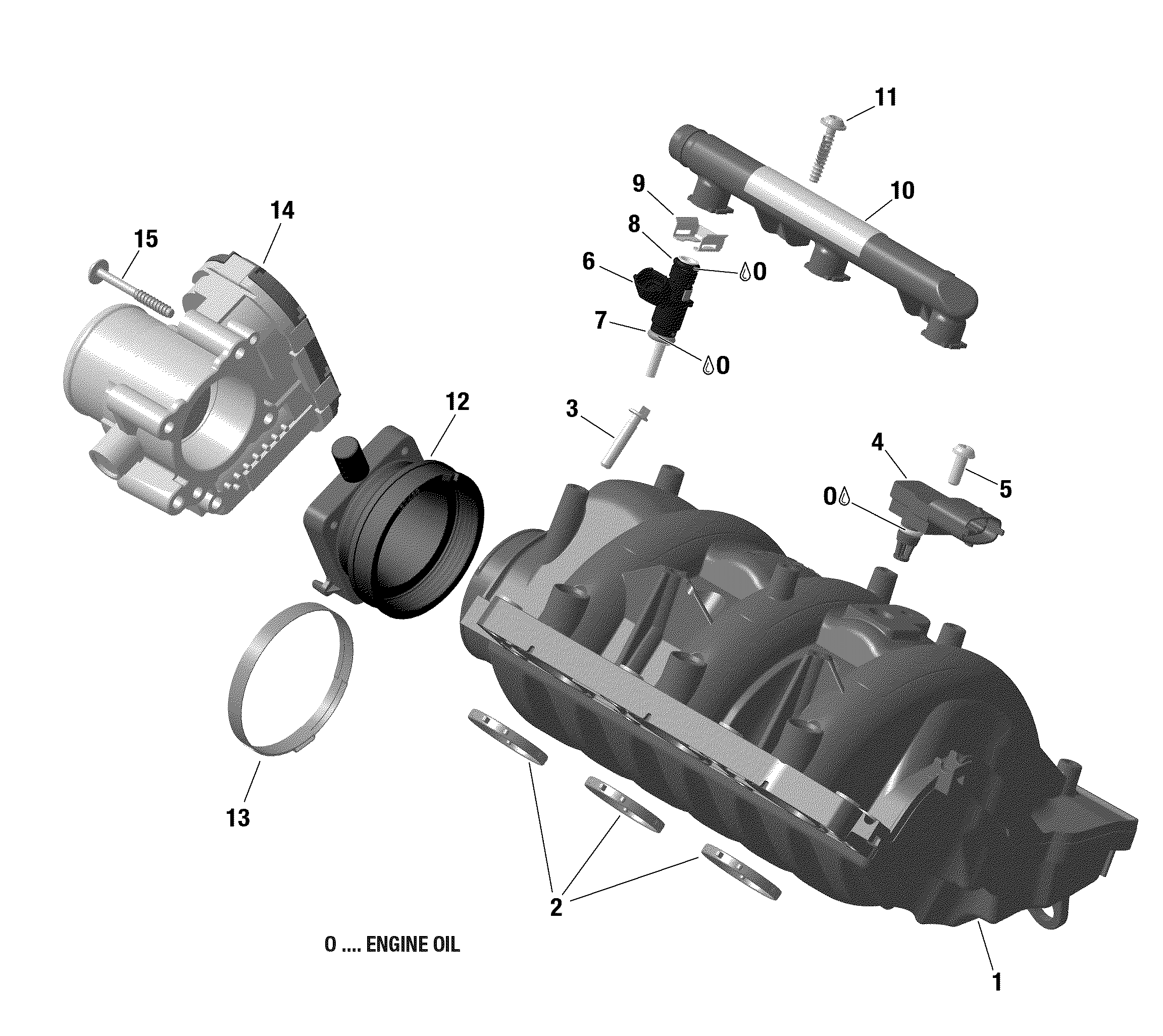

02- Air Intake Manifold And Throttle Body 900 HO для BRP 1- Maverick X3 900HO - 2018
-
№АртикулНазвание
-
1420867367 Airbox Ass'y. Includes 1 to 2Airbox Ass'y. Includes 1 to 2
-
2420450510 GasketGasket
-
3420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
4715900392 Pressure/Temp sensorPressure/Temp sensor
-
5420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
6420874838 Injection Valve Ass'y. Includes 6 to 8Injection Valve Ass'y. Includes 6 to 8
-
7420431890 O-RingO-Ring
-
8420631220 O-RingO-Ring
-
9420853030 ClipClip
-
10420874966 Fuel RailFuel Rail
-
11420441573 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
12420867091 Connecting SocketConnecting Socket
-
13420251483 Hose ClampHose Clamp
-
14420893147 Throttle Body Ass'yThrottle Body Ass'y
-
15420441588 Flanged Torx Screw M6 X 50Flanged Torx Screw M6 X 50
