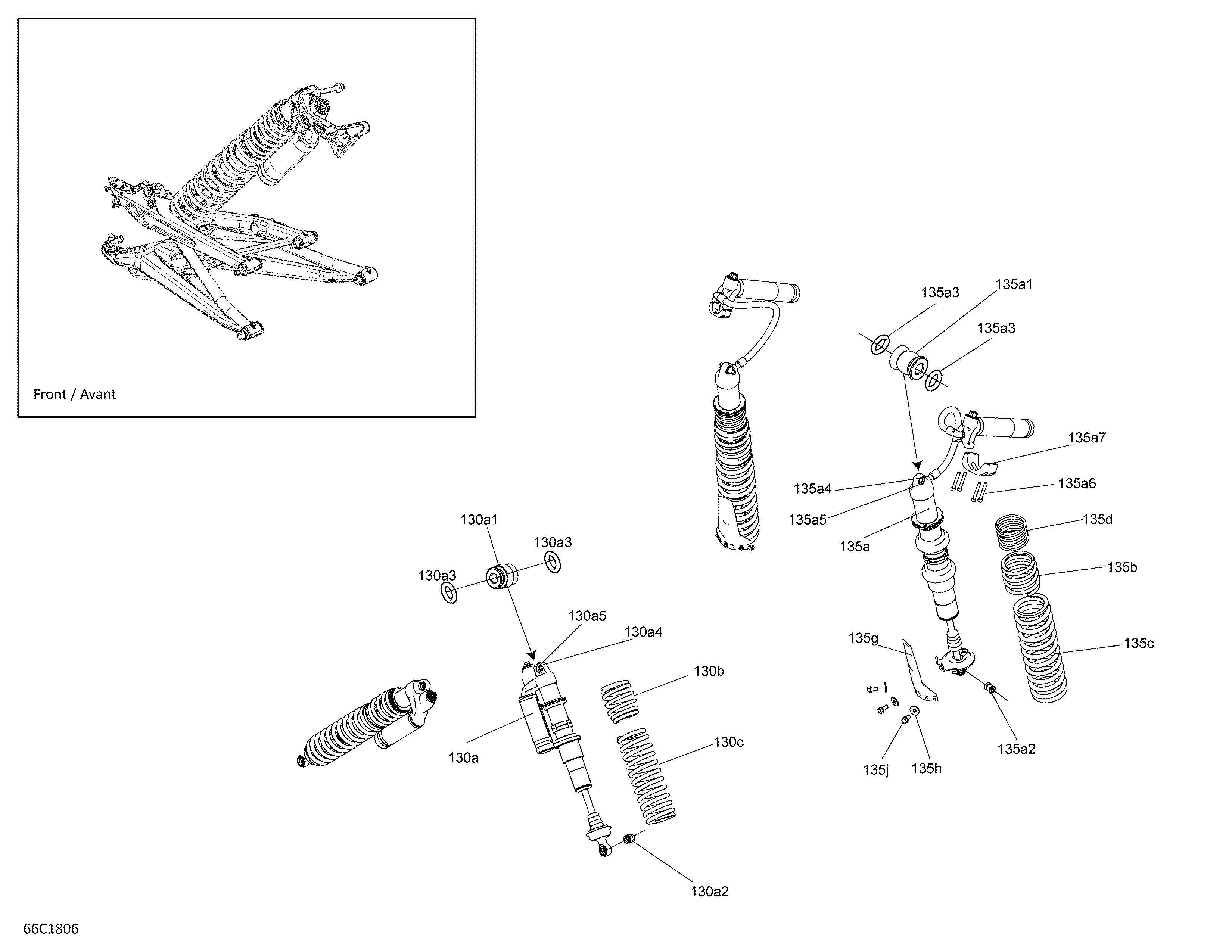

07- Shocks Maverick X3 - 900HO - STD для BRP 1- Maverick X3 900HO - 2018
-
№АртикулНазвание
-
130a706203104 LH Front Shock. Includes 130a to 130a5LH Front Shock. Includes 130a to 130a5
-
130a706203105 RH Front Shock. Includes 130a to 130a5RH Front Shock. Includes 130a to 130a5
-
130a1715900337 Spherical BearingSpherical Bearing
-
130a2715900482 BearingBearing
-
130a3715900338 O-Ring BushingO-Ring Bushing
-
130a4715900480 CirclipCirclip
-
130a5715900481 ReducerReducer
-
130b706203032 Deep Black Front SpringDeep Black Front Spring
-
130c706202180 Black, Front SpringBlack, Front Spring
-
135a706002924 LH Rear Shock. Includes 135a to 135a5LH Rear Shock. Includes 135a to 135a5
-
135a706002925 RH Rear Shock. Includes 135a to 135a5RH Rear Shock. Includes 135a to 135a5
-
135a1715900337 Spherical BearingSpherical Bearing
-
135a2715900482 BearingBearing
-
135a3715900338 O-Ring BushingO-Ring Bushing
-
135a4715900480 CirclipCirclip
-
135a5715900481 ReducerReducer
-
135b706002763 Black, Rear SpringBlack, Rear Spring
-
135c706002765 Black, Rear SpringBlack, Rear Spring
-
135d706002864 Rear SpringRear Spring
-
135g706202215 ProtectorProtector
-
135h250200025 Washer M5Washer M5
-
135j210251150 Hex. Flanged Screw M5 X 11Hex. Flanged Screw M5 X 11
