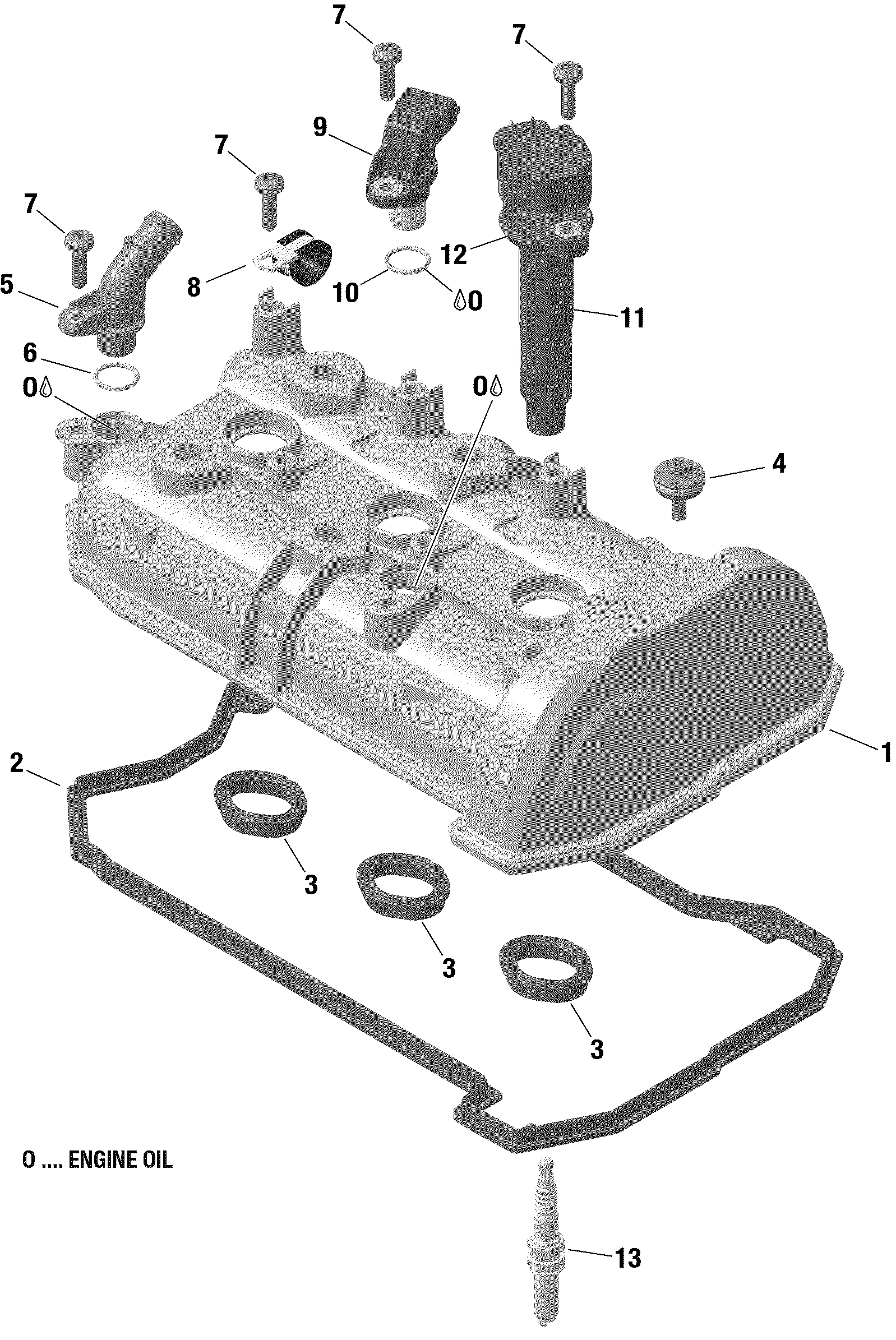

01- Valve Cover 900 HO для BRP 1- Maverick X3 900HO - 2018
-
№АртикулНазвание
-
1420911492 Valve CoverValve Cover
-
2420431801 GasketGasket
-
3420431751 GasketGasket
-
4420440497 Distance Screw M6Distance Screw M6
-
5420611242 ConnectorConnector
-
6420631240 O-RingO-Ring
-
7420441383 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
8420851492 Cable ClampCable Clamp
-
9420664045 Camshaft Position Sensor Ass'y. Includes 9 to 10Camshaft Position Sensor Ass'y. Includes 9 to 10
-
10420631890 O-RingO-Ring
-
11420666142 Stick Coil. Includes 11 to 12Stick Coil. Includes 11 to 12
-
12420201430 Protection CapProtection Cap
-
13415129403 Spark Plug NGK CR8EBSpark Plug NGK CR8EB
