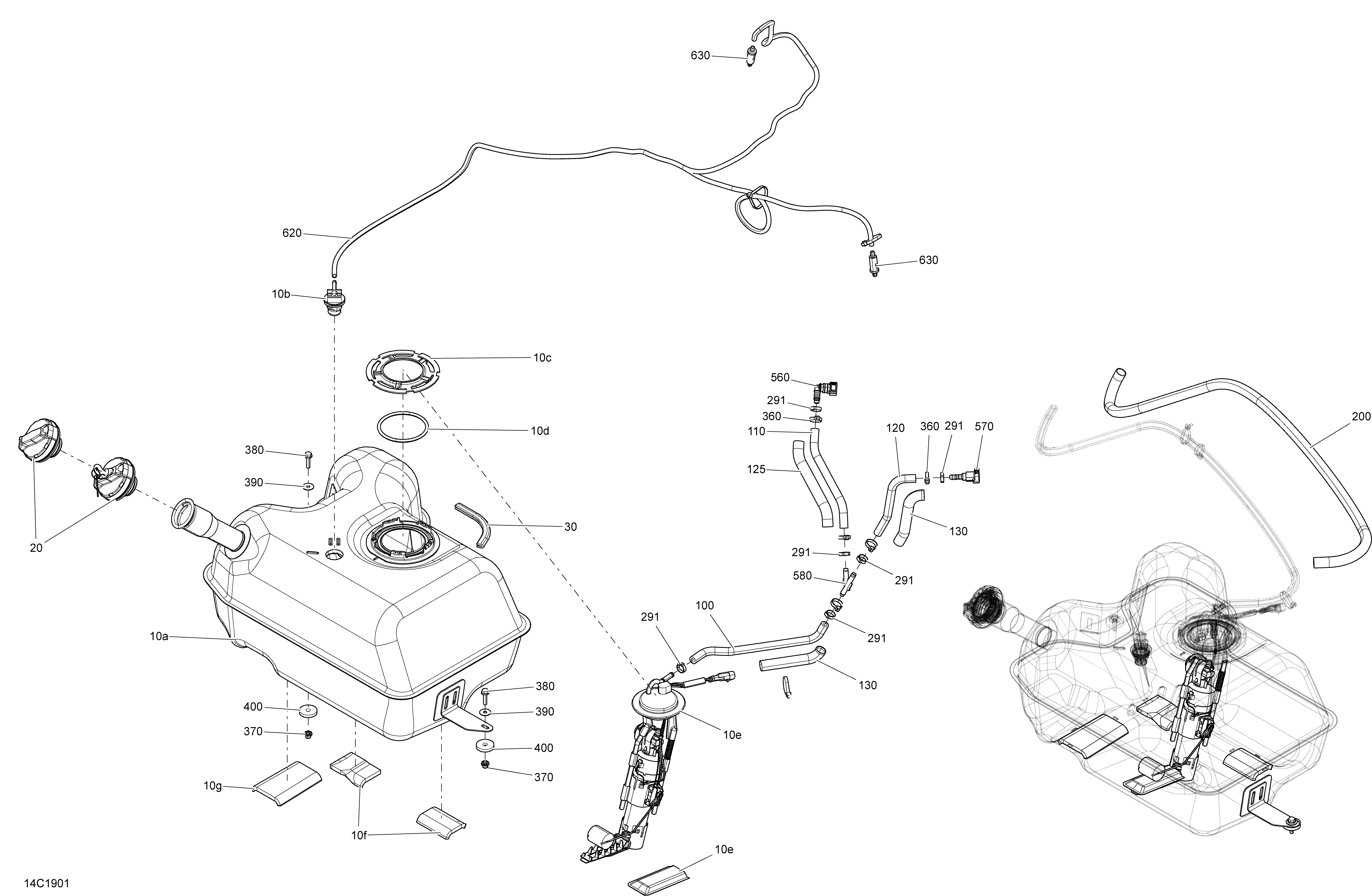

02- Fuel для BRP 003 - Commander MAX 800R EFI - North America - 2019
-
№АртикулНазвание
-
10a709000753 Fuel TankFuel Tank
-
10b709000413 ROPS (roll-over protection structure)ROPS (roll-over protection structure)
-
10c709000274 RingRing
-
10d709000275 O-RingO-Ring
-
10e709000759 Fuel PumpFuel Pump
-
10f709000288 Neoprene PadNeoprene Pad
-
10g709000289 Neoprene PadNeoprene Pad
-
20709000529 Fuel CapFuel Cap
-
100709000516 Fuel LineFuel Line
-
110709000516 Fuel LineFuel Line
-
120709000516 Fuel LineFuel Line
-
125415080000 Tubing 16 mmTubing 16 mm
-
130415080000 Tubing 16 mmTubing 16 mm
-
200415080000 Tubing 16 mmTubing 16 mm
-
291293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
370250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
380207562544 Hex. Flanged Screw M6X1.0X25Hex. Flanged Screw M6X1.0X25
-
390224060201 Flat WasherFlat Washer
-
400293830037 Rubber WasherRubber Washer
-
560275500700 Quick Attach 90°Quick Attach 90°
-
570709000125 Female Quick Fitting Ass'y. Includes 570 to 570aFemale Quick Fitting Ass'y. Includes 570 to 570a
-
570a513033135 Locking ClipLocking Clip
-
580293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
620293830193 Polyurethane HosePolyurethane Hose
-
630709000330 FilterFilter
