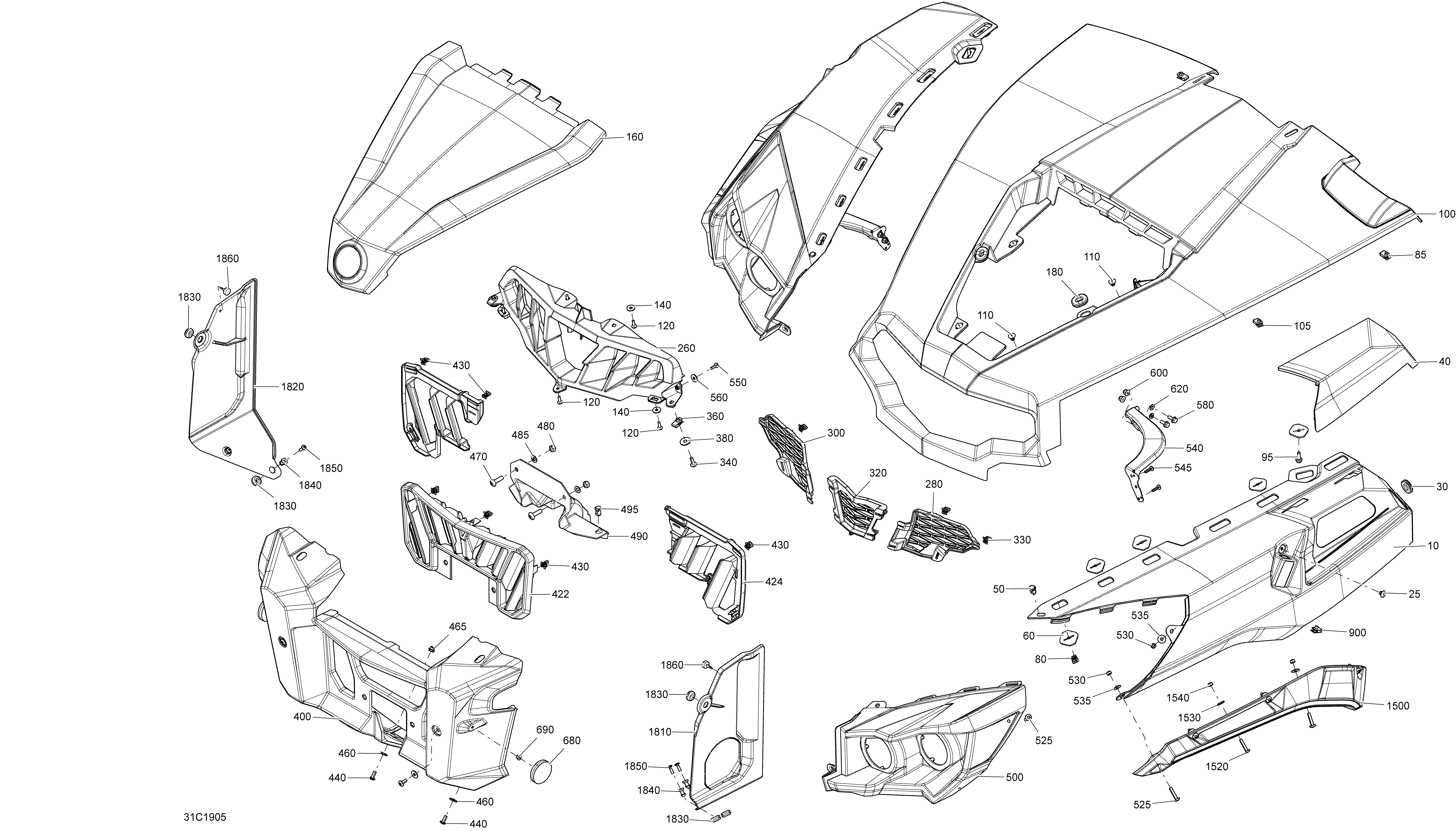

09- Body And Accessories - Front Section - Squadron Green для BRP 003 - Commander MAX 800R EFI - North America - 2019
-
№АртикулНазвание
-
10705011531 Squadron Green, LH Front FenderSquadron Green, LH Front Fender
-
20705011532 Squadron Green, RH Front FenderSquadron Green, RH Front Fender
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
30517303756 GrommetGrommet
-
40705011533 Squadron Green, CVT Inlet CoverSquadron Green, CVT Inlet Cover
-
50293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
60705003841 Support PlateSupport Plate
-
80517302785 ClipClip
-
85250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
95207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100705011535 Squadron Green, Fixed HoodSquadron Green, Fixed Hood
-
105250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
110293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
120250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
140234062670 Flat Washer, StainlessFlat Washer, Stainless
-
160705011536 Squadron Green, Removable HoodSquadron Green, Removable Hood
-
180705005156 Oval WasherOval Washer
-
260705003629 Upper Facia, BlackUpper Facia, Black
-
280705004350 LH Upper Facia ProtectorLH Upper Facia Protector
-
300705004351 RH Upper Facia ProtectorRH Upper Facia Protector
-
320705004336 Center Upper Facia ProtectorCenter Upper Facia Protector
-
330517302785 ClipClip
-
340250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
360250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
380234082410 Flat Washer 8 mmFlat Washer 8 mm
-
400705008689 Black Front FaciaBlack Front Facia
-
422705004755 Lower Front Facia ProtectorLower Front Facia Protector
-
424705004819 LH Lower Rear Facia ProtectorLH Lower Rear Facia Protector
-
426705004820 RH Lower Rear Facia ProtectorRH Lower Rear Facia Protector
-
430517302785 ClipClip
-
440250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
460234062670 Flat Washer, StainlessFlat Washer, Stainless
-
465250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
470250000745 Hex Torx Truss M8 X30Hex Torx Truss M8 X30
-
480232081414 Hex. Nut M8Hex. Nut M8
-
485234081410 Flat Washer 8 mmFlat Washer 8 mm
-
490705003399 Bottom DeflectorBottom Deflector
-
495293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
500705002885 LH Front FaciaLH Front Facia
-
520705002886 RH Front FaciaRH Front Facia
-
525250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
530232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
535234062670 Flat Washer, StainlessFlat Washer, Stainless
-
540705002891 Facia Front SupportFacia Front Support
-
545250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
550250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
560234062670 Flat Washer, StainlessFlat Washer, Stainless
-
580207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
600233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
620234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
680705011222 Amber ReflectorAmber Reflector
-
900250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1810705002895 LH DeflectorLH Deflector
-
1820705002894 RH DeflectorRH Deflector
-
1830293720053 GrommetGrommet
-
1840517303439 KnobKnob
-
1850250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1860708000759 Rubber StopperRubber Stopper
