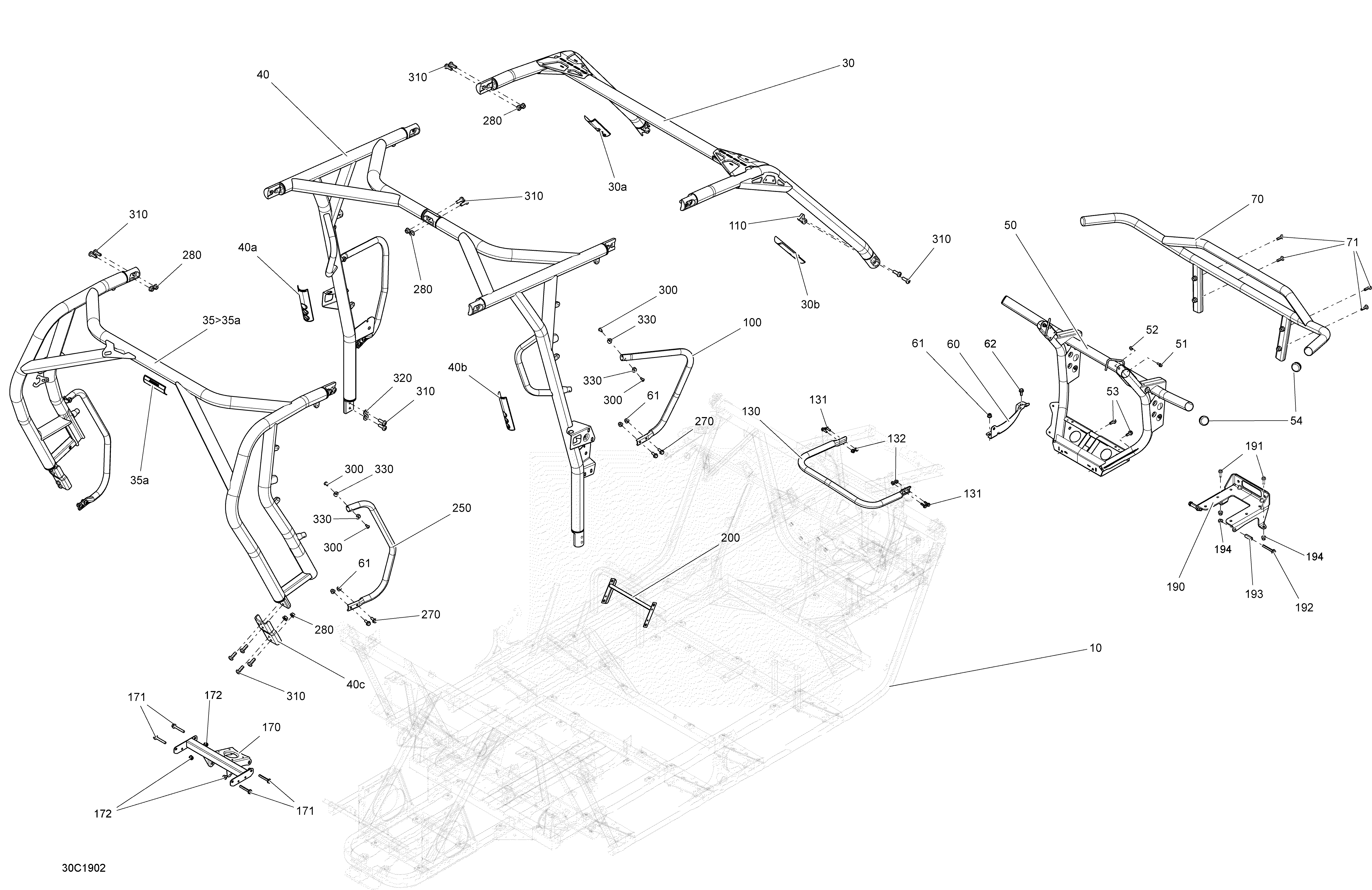

09- Frame для BRP 003 - Commander MAX 800R EFI - North America - 2019
-
№АртикулНазвание
-
10715003935 Black, FrameBlack, Frame
-
30715004812 Deep Black, Cage Ass'y. Black. Includes 30 to 30bDeep Black, Cage Ass'y. Black. Includes 30 to 30b
-
30a704903679 Warning Label. BlackWarning Label. Black
-
30b704903680 Warning Label. BlackWarning Label. Black
-
35715004812 Deep Black, Cage Ass'y. Black. Includes 35 to 35bDeep Black, Cage Ass'y. Black. Includes 35 to 35b
-
35a704903492 Warning Label. BlackWarning Label. Black
-
35b250100199 Insert Half Hex Body M6 x 1.0. BlackInsert Half Hex Body M6 x 1.0. Black
-
40715003902 Black Central Cage Kit. Black. Includes 40 to 40cBlack Central Cage Kit. Black. Includes 40 to 40c
-
40a704903679 Warning Label. BlackWarning Label. Black
-
40b233181414 Hex. Flanged Nut M8. BlackHex. Flanged Nut M8. Black
-
40c705203514 Rear Hand Mounting. BlackRear Hand Mounting. Black
-
45715003902 Black Central Cage Kit. Black. Includes 45 to 45cBlack Central Cage Kit. Black. Includes 45 to 45c
-
45a704903680 Warning Label. BlackWarning Label. Black
-
45b233181414 Hex. Flanged Nut M8. BlackHex. Flanged Nut M8. Black
-
45c705203514 Rear Hand Mounting. BlackRear Hand Mounting. Black
-
50705202995 Black Front BumperBlack Front Bumper
-
51207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
52233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
53207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
54705202455 CapCap
-
60705201721 Front Differential SupportFront Differential Support
-
61233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
62207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
70715000958 Black Front Bumper. Packages XT & LTDBlack Front Bumper. Packages XT & LTD
-
71250000745 Hex Torx Truss M8 X30. Packages XT & LTDHex Torx Truss M8 X30. Packages XT & LTD
-
83705202455 Cap. Packages XT & LTDCap. Packages XT & LTD
-
100705203642 Black RH Front Side Protector Tube. BlackBlack RH Front Side Protector Tube. Black
-
110705203415 Binding BlockBinding Block
-
120705203643 Black LH Front Side Protector Tube. BlackBlack LH Front Side Protector Tube. Black
-
130705203332 Black HandleBlack Handle
-
131207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
132233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
170705203538 Differential HolderDifferential Holder
-
171207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
172233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
190715000704 Winch Plate. Packages XT & LTDWinch Plate. Packages XT & LTD
-
192207686044 Hex. Flanged Screw M8 x 60. Packages XT & LTDHex. Flanged Screw M8 x 60. Packages XT & LTD
-
193705202499 Bushing. Packages XT & LTDBushing. Packages XT & LTD
-
194233281414 Hex. Flanged Elastic Nut M8 X 1.25. Packages XT & LTDHex. Flanged Elastic Nut M8 X 1.25. Packages XT & LTD
-
200705203717 Reinforcement PanelReinforcement Panel
-
250705203649 Black LH Rear Side Protector Tube. BlackBlack LH Rear Side Protector Tube. Black
-
260705203652 Black RH Rear Side Protector Tube. BlackBlack RH Rear Side Protector Tube. Black
-
270207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
280233101464 Hex. Elastic Flange Nut , M10 X 1.5Hex. Elastic Flange Nut , M10 X 1.5
-
300250000789 Torx Truss M6X14Torx Truss M6X14
-
310250000848 Screw Pan M10 X 30Screw Pan M10 X 30
-
320250200154 WasherWasher
-
330705202223 Offset WasherOffset Washer
-
500233281414 Hex. Flanged Elastic Nut M8 X 1.25. Not ShownHex. Flanged Elastic Nut M8 X 1.25. Not Shown
