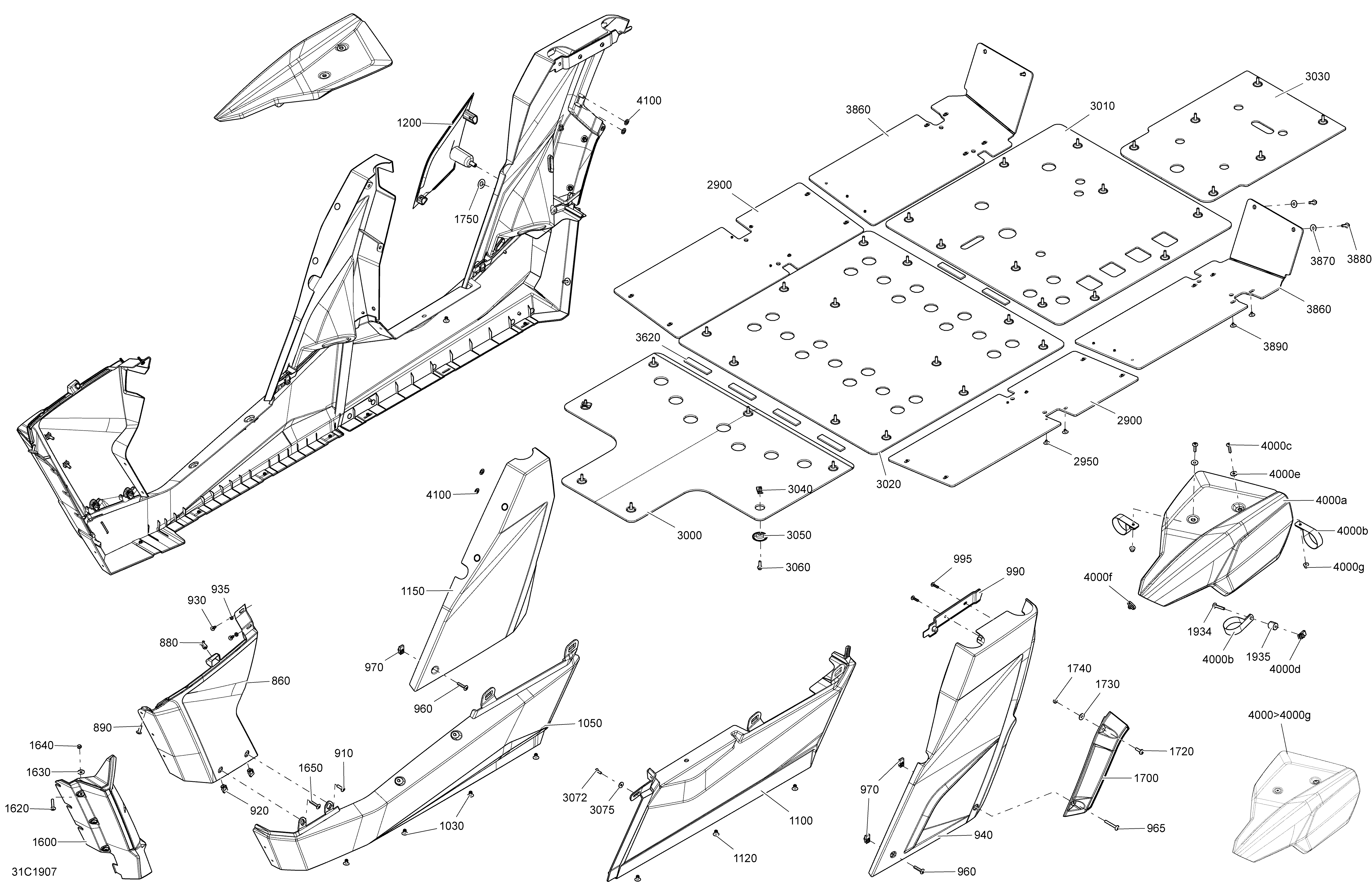

09- Body And Accessories - Central Panel - Squadron Green для BRP 003 - Commander MAX 800R EFI - North America - 2019
-
№АртикулНазвание
-
860705011538 Squadron Green, LH Front Lateral PanelSquadron Green, LH Front Lateral Panel
-
870705011539 Squadron Green, RH Front Lateral PanelSquadron Green, RH Front Lateral Panel
-
880293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
890250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
900250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
910250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
915250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
920250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
930250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
935234051410 Flat Washer M5Flat Washer M5
-
940705011545 Squadron Green, LH Rear Lateral PanelSquadron Green, LH Rear Lateral Panel
-
950705011567 Squadron Green, RH PanelSquadron Green, RH Panel
-
960250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
965250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
970250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
990705007916 Support Skid PlateSupport Skid Plate
-
995250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
1030293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1050705005423 Black, LH Lower PanelBlack, LH Lower Panel
-
1060705005424 Black, RH Lower PanelBlack, RH Lower Panel
-
1100705005425 Black, LH Rear Lower PanelBlack, LH Rear Lower Panel
-
1110705005426 Black, RH Rear Lower PanelBlack, RH Rear Lower Panel
-
1120293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1150705011569 Squadron Green, LH Central PanelSquadron Green, LH Central Panel
-
1160705011570 Squadron Green, RH Central PanelSquadron Green, RH Central Panel
-
1200705011573 Squadron Green, Panel CoverSquadron Green, Panel Cover
-
2900705008421 Side Protector PlateSide Protector Plate
-
2950293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3000705007055 Middle Protector PlateMiddle Protector Plate
-
3010705007056 Rear Protector PlateRear Protector Plate
-
3020705009447 Skid PlateSkid Plate
-
3030705007227 Rear Protector PlateRear Protector Plate
-
3040250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3050705007171 CupCup
-
3060210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
3072250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
3075250200025 Washer M5Washer M5
-
3620291001932 PadPad
-
3860705007038 RH Lateral Skid PlateRH Lateral Skid Plate
-
3870250200097 Flat WasherFlat Washer
-
3880210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
3890293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4100250100031 Push Nut. Not ShownPush Nut. Not Shown
