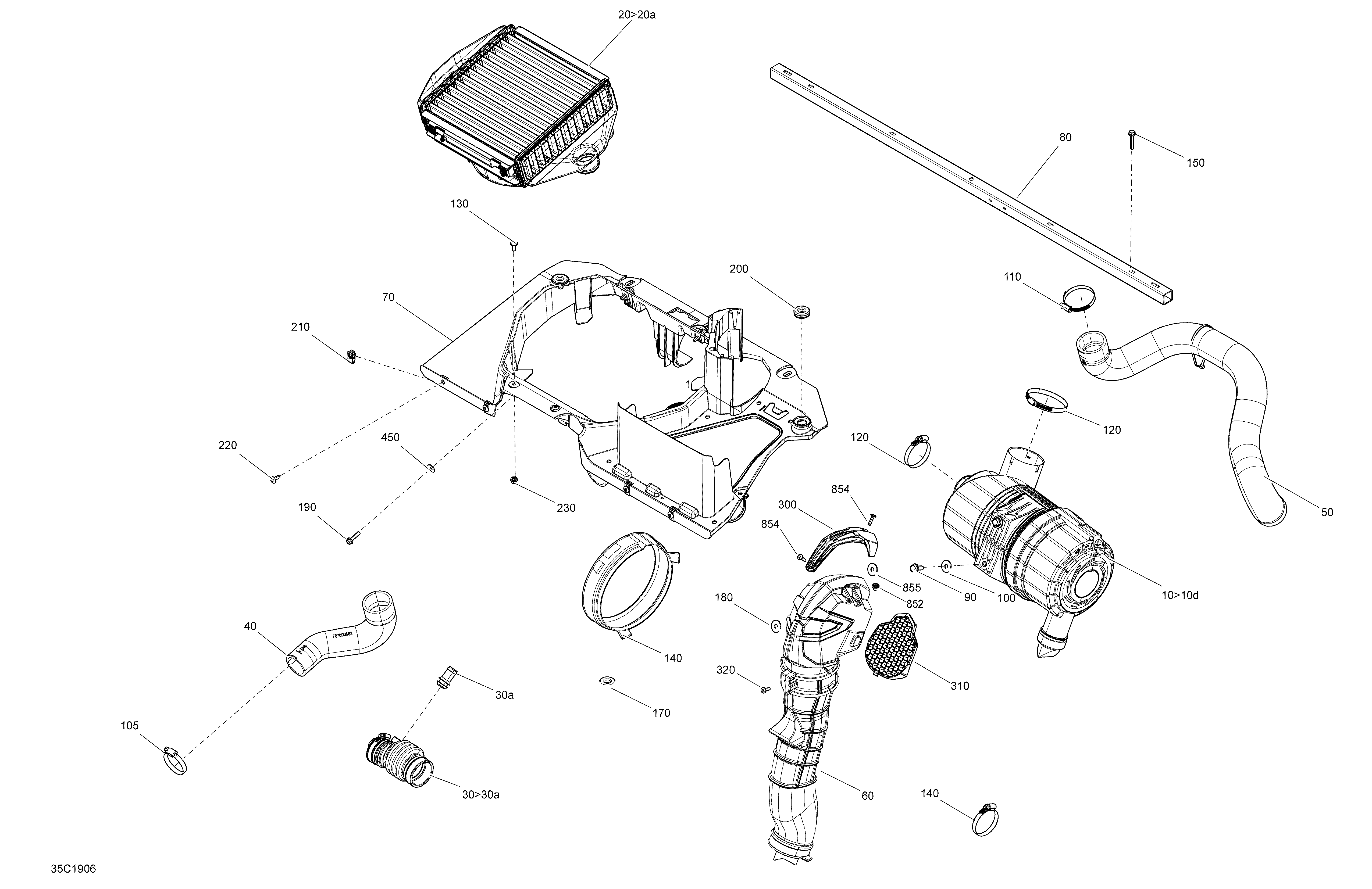

02- Air Intake - Turbo R - XMR для BRP 003 - Maverick Turbo R - International - 2019
-
№АртикулНазвание
-
10707800780 Airbox. Includes 10 to 10dAirbox. Includes 10 to 10d
-
10a715900528 Silencer-Air Cover. Includes 10a to 10a1Silencer-Air Cover. Includes 10a to 10a1
-
10a1707800844 Gasket Intake SilencerGasket Intake Silencer
-
10b715900422 Air FilterAir Filter
-
10c519000216 CapCap
-
10d414554800 Spring ClampSpring Clamp
-
20707800793 Intercooler Assemblee. Includes 20 to 20aIntercooler Assemblee. Includes 20 to 20a
-
20a707800838 Fan AssembleFan Assemble
-
30707800693 Air Intake Turbo. Includes 30 to 30aAir Intake Turbo. Includes 30 to 30a
-
30a273000234 BreatherBreather
-
40707800683 Air Intake IntercoolerAir Intake Intercooler
-
50707800685 Air Intake EngineAir Intake Engine
-
60707800774 Hose. Package XMRHose. Package XMR
-
70707800691 Radiator SupportRadiator Support
-
80707800785 Painted TubePainted Tube
-
90207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
100234082410 Flat Washer 8 mmFlat Washer 8 mm
-
105293650270 King Seal ClampKing Seal Clamp
-
110293650271 King Seal ClampKing Seal Clamp
-
111293650271 King Seal ClampKing Seal Clamp
-
120293650270 King Seal ClampKing Seal Clamp
-
120293650270 King Seal ClampKing Seal Clamp
-
125293650096 Clamp NormaClamp Norma
-
130250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
140293650269 Turn Key Clamp. Package XMRTurn Key Clamp. Package XMR
-
150207563544 Screw H Flange S.Grip M6 X 35Screw H Flange S.Grip M6 X 35
-
170707800769 Vacuator Cap. Package XMRVacuator Cap. Package XMR
-
170715003114 Duck Bill Valve. Except Package XMRDuck Bill Valve. Except Package XMR
-
180234062670 Flat Washer, StainlessFlat Washer, Stainless
-
190207562544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
200517303756 GrommetGrommet
-
210250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
220250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
230250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
300707002086 Cap. Package XMRCap. Package XMR
-
310706600254 Grate. Package XMRGrate. Package XMR
-
320250000851 Torx Screw M6 X 14. Package XMRTorx Screw M6 X 14. Package XMR
-
450234062410 Flat Washer 6 mmFlat Washer 6 mm
-
852233251494 Elastic Flanged Nut M5. Package XMRElastic Flanged Nut M5. Package XMR
-
854250000792 Torx Screw M5 X 20. Package XMRTorx Screw M5 X 20. Package XMR
-
855234052600 Flat Washer 5 mm, Stainless. Package XMRFlat Washer 5 mm, Stainless. Package XMR
