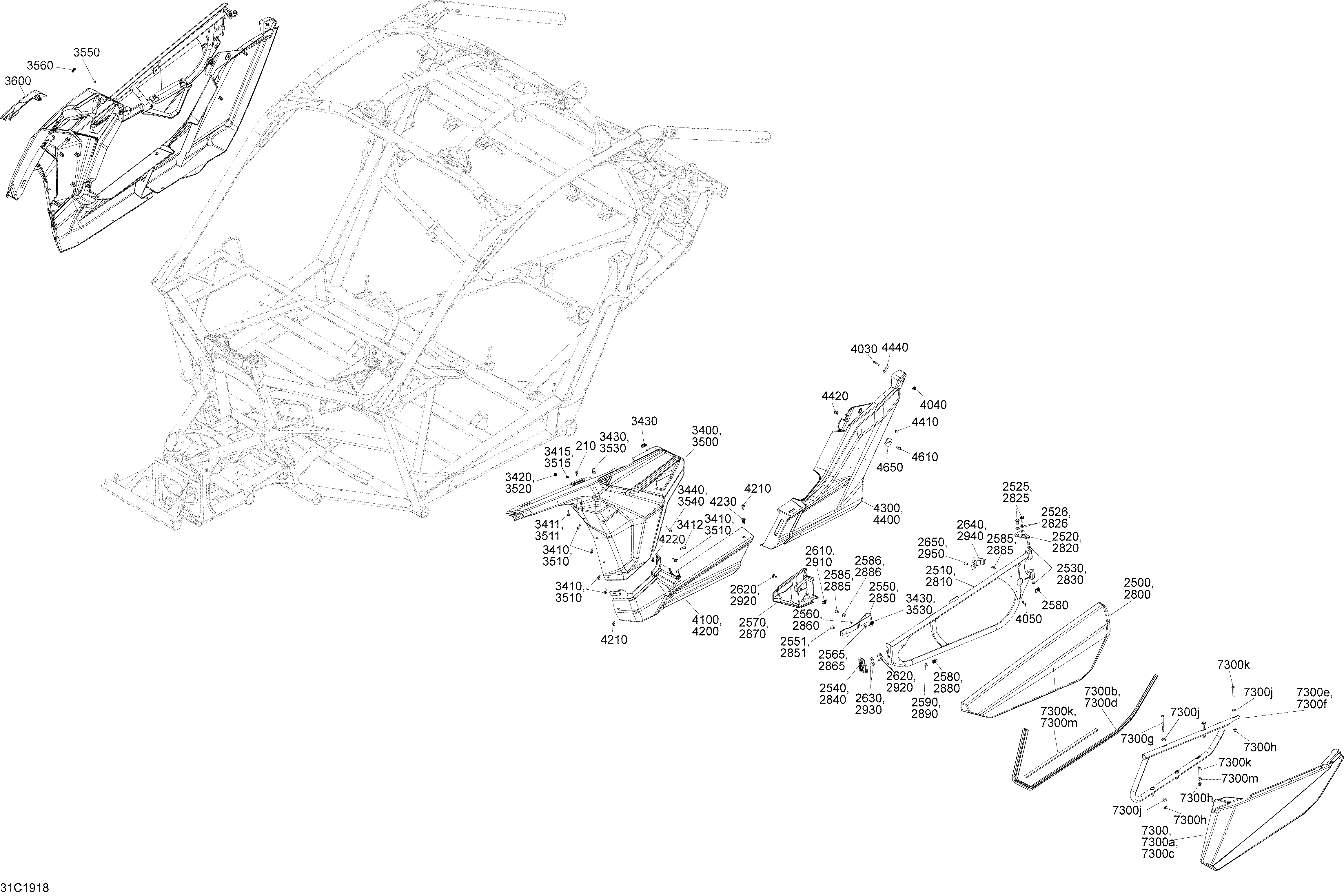

09- Body - Side Section - Sunburst Yellow для BRP 003 - Maverick Turbo R - International - 2019
-
№АртикулНазвание
-
210705010721 ClipClip
-
2500705012472 Carbon Black, LH Door PanelCarbon Black, LH Door Panel
-
2510705012545 Sunburst Yellow, LH Door FrameSunburst Yellow, LH Door Frame
-
2520705011187 Door SupportDoor Support
-
2525207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2526234081430 Flat Washer M8Flat Washer M8
-
2530234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
2540705012183 LH LatchLH Latch
-
2550293850135 BeltBelt
-
2551293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2552293900104 BushingBushing
-
2570705013535 LH Latch CoverLH Latch Cover
-
2580250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2585250000721 Torx ScrewTorx Screw
-
2586234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2590293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2610250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2620250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2630224061121 Flat WasherFlat Washer
-
2640293850129 Door BeltDoor Belt
-
2650293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2800705012473 Carbon Black, RH Door PanelCarbon Black, RH Door Panel
-
2810705012546 Yellow, RH Door FrameYellow, RH Door Frame
-
2820705011187 Door SupportDoor Support
-
2825207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2826234081430 Flat Washer M8Flat Washer M8
-
2830234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
2840705012184 RH LatchRH Latch
-
2850293850135 BeltBelt
-
2851293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2852293900104 BushingBushing
-
2870705013536 RH Latch CoverRH Latch Cover
-
2880250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2885250000721 Torx ScrewTorx Screw
-
2886234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2890293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2910250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2920250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2930224061121 Flat WasherFlat Washer
-
2940293850129 Door BeltDoor Belt
-
2950293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
3400715004064 LH Front Lateral Panel KitLH Front Lateral Panel Kit
-
3410250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3411250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
3412250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
3415233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3430250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3440250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
3500715004074 RH Front Lateral PanelRH Front Lateral Panel
-
3510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3511250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
3515233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3530250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3540250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
3550233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3560517303756 GrommetGrommet
-
3600705010334 RH Side Panel CoverRH Side Panel Cover
-
4030250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
4040250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4050250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
4100705009513 LH Central Lateral PanelLH Central Lateral Panel
-
4200705009514 RH Central Lateral PanelRH Central Lateral Panel
-
4210250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4220250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4230705010872 InsertInsert
-
4300705010676 LH Rear Lateral PanelLH Rear Lateral Panel
-
4400705010677 RH Rear Lateral PanelRH Rear Lateral Panel
-
4410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4420250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4440705003841 Support PlateSupport Plate
-
4610250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4650705003841 Support PlateSupport Plate
-
7300a715002903 Door PanelsDoor Panels
-
7300b705012018 Door SealDoor Seal
-
7300c715002903 Door PanelsDoor Panels
-
7300d705012018 Door SealDoor Seal
-
7300e705012750 Black, LH Door FrameBlack, LH Door Frame
-
7300f705012751 Black, RH Door Frame. Includes 7300f to 7300pBlack, RH Door Frame. Includes 7300f to 7300p
-
7300g250000902 Torx-Truss M/S M6 X 80Torx-Truss M/S M6 X 80
-
7300h233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
7300j705202223 Offset WasherOffset Washer
-
7300k250000749 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
7300m234062670 Flat Washer, StainlessFlat Washer, Stainless
-
7300n293200003 Neoprene SealNeoprene Seal
-
7300p293200003 Neoprene SealNeoprene Seal
