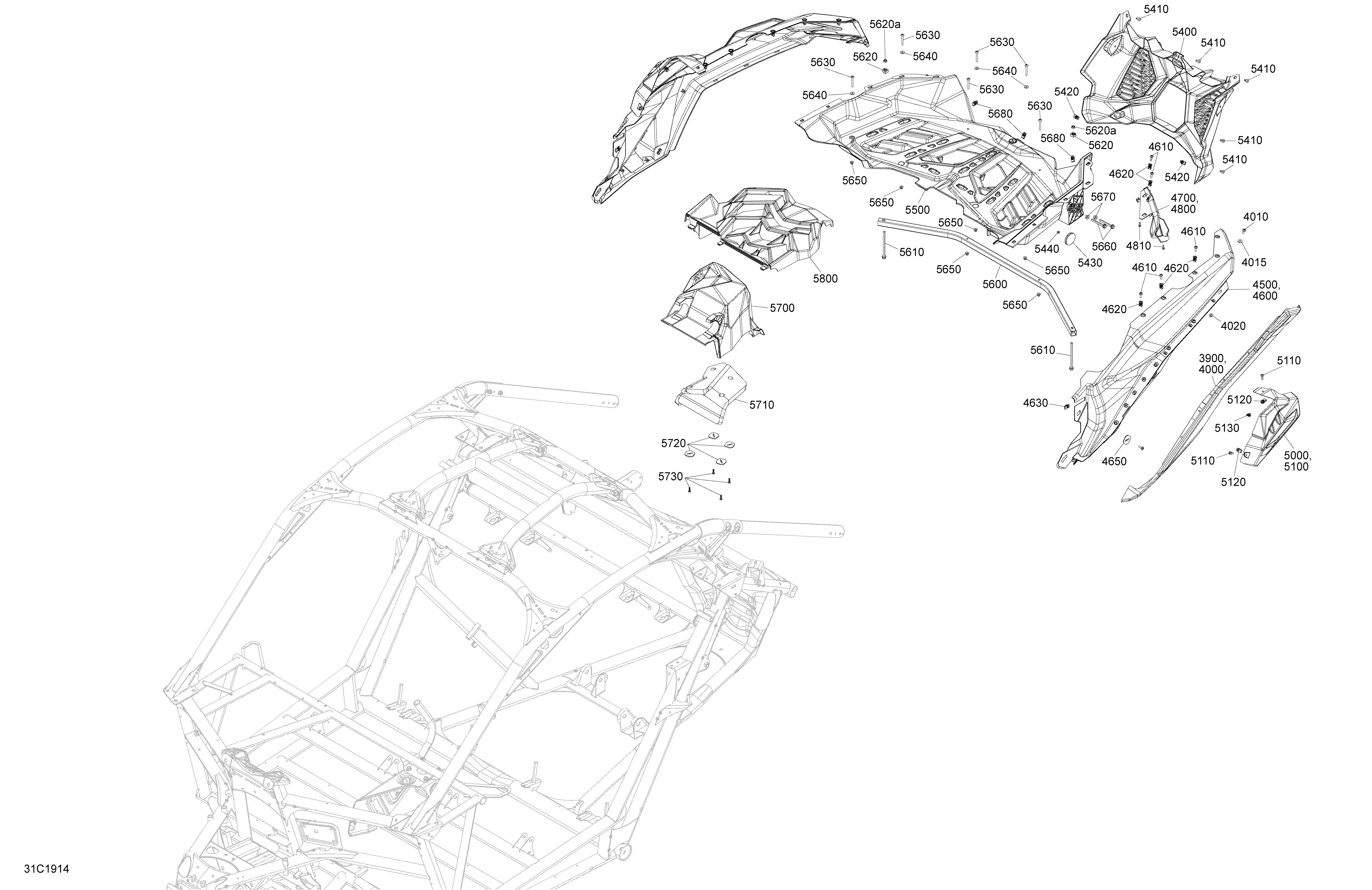

09- Body - Rear Section - White для BRP 003 - Maverick Turbo R - International - 2019
-
№АртикулНазвание
-
3900705009511 LH Rear Fender DeflectorLH Rear Fender Deflector
-
4000705009512 RH Rear Fender DeflectorRH Rear Fender Deflector
-
4010250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4015234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4020233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
4500705009515 White, LH Rear FenderWhite, LH Rear Fender
-
4600705009516 White, RH Rear FenderWhite, RH Rear Fender
-
4620705010872 InsertInsert
-
4630250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4650705003841 Support PlateSupport Plate
-
4700705010686 LH Rear Lateral CoverLH Rear Lateral Cover
-
4800705010687 RH Rear Lateral CoverRH Rear Lateral Cover
-
4810250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
5000705010335 LH Rear Cage TrimLH Rear Cage Trim
-
5100705010336 RH Rear Cage TrimRH Rear Cage Trim
-
5110250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5120250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5130293650268 ClipClip
-
5400705010001 Rear FaciaRear Facia
-
5410250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5420250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5430705011221 Red ReflectorRed Reflector
-
5440233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
5500715005711 Luggage Rack KitLuggage Rack Kit
-
5600705012589 TubeTube
-
5610230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
5620269501943 Elastic Nut Housing M8. Includes 5620 to 5620aElastic Nut Housing M8. Includes 5620 to 5620a
-
5620a232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
5630250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
5640234062670 Flat Washer, StainlessFlat Washer, Stainless
-
5650233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
5660207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
5670233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
5680250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5700705012700 Air Inlet CoverAir Inlet Cover
-
5710705011293 Foam Air Intake CoverFoam Air Intake Cover
-
5720705003841 Support PlateSupport Plate
-
5730250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
5800705010286 Rear CoverRear Cover
