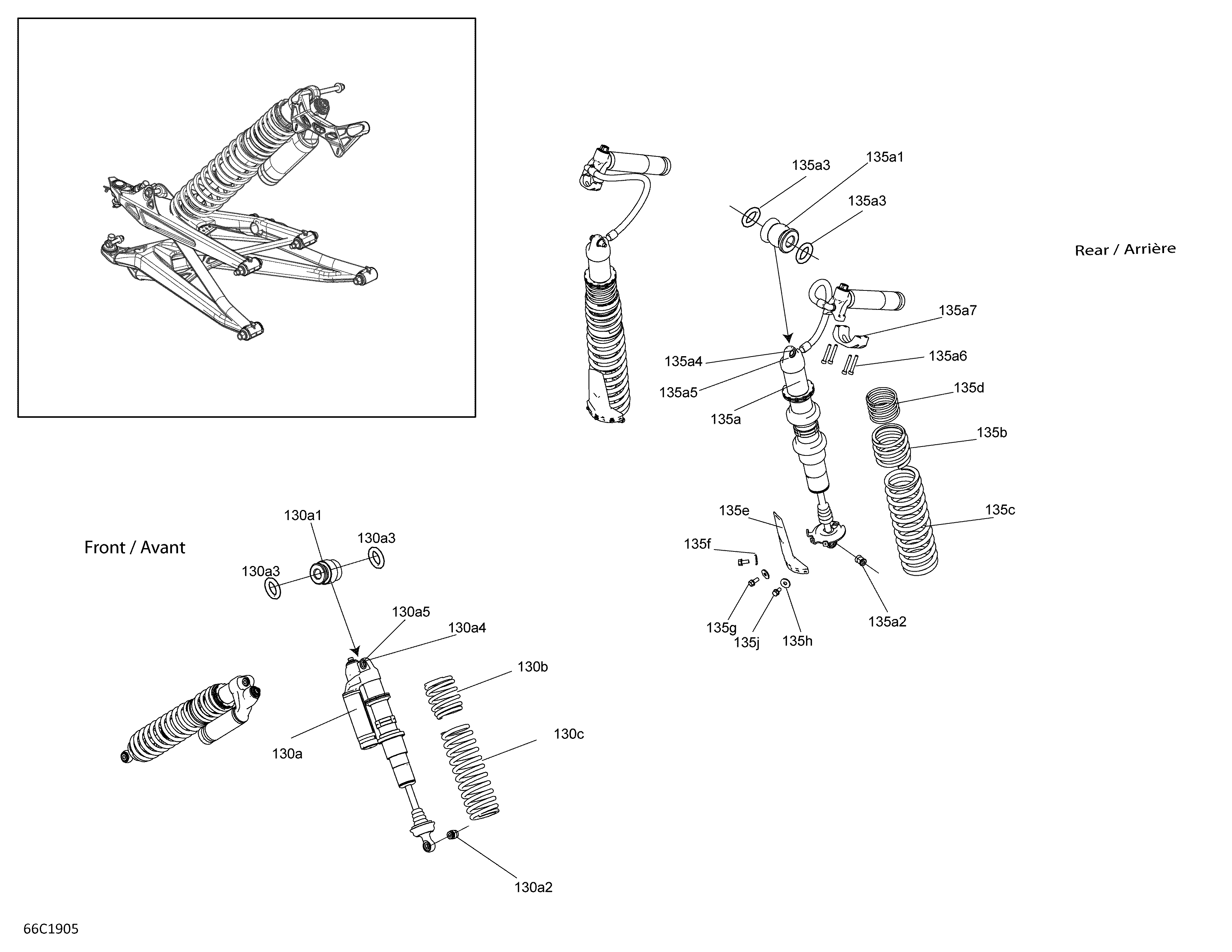

07- Shocks - XRS для BRP 003 - Maverick Turbo R - International - 2019
-
№АртикулНазвание
-
130a706202856 LH Front Shock. Includes 130a to 130a5LH Front Shock. Includes 130a to 130a5
-
130a706202857 RH Front Shock. Includes 130a to 130a5RH Front Shock. Includes 130a to 130a5
-
130a1715900337 Spherical BearingSpherical Bearing
-
130a2715900482 BearingBearing
-
130a3715900338 O-Ring BushingO-Ring Bushing
-
130a4715900480 CirclipCirclip
-
130a5715900481 ReducerReducer
-
130b706203480 Liquid Gold, Fr. Compression Spring. Hyper SilverLiquid Gold, Fr. Compression Spring. Hyper Silver
-
130c706203483 Liquid Gold, Fr. Compression Spring. Hyper SilverLiquid Gold, Fr. Compression Spring. Hyper Silver
-
130b706203056 Deep Black Front Spring. Platinium Silver & Timeless BlackDeep Black Front Spring. Platinium Silver & Timeless Black
-
130c706202696 Black, Front Spring. Platinium Silver & Timeless BlackBlack, Front Spring. Platinium Silver & Timeless Black
-
135a706002255 Rear Shock. Includes 135a to 135a7Rear Shock. Includes 135a to 135a7
-
135a1715900337 Spherical BearingSpherical Bearing
-
135a2715900482 BearingBearing
-
135a3715900338 O-Ring BushingO-Ring Bushing
-
135a4715900480 CirclipCirclip
-
135a5715900481 ReducerReducer
-
135a6715900521 Screw M6 X 35Screw M6 X 35
-
135a7715900522 Reservoir ClampReservoir Clamp
-
135b706002564 Black, Rear Spring. Platinium Silver & Timeless BlackBlack, Rear Spring. Platinium Silver & Timeless Black
-
135c706002563 Black, Rear Spring. Platinium Silver & Timeless BlackBlack, Rear Spring. Platinium Silver & Timeless Black
-
135d706003089 Deep Black Rear Spring. Platinium Silver & Timeless BlackDeep Black Rear Spring. Platinium Silver & Timeless Black
-
135b706003291 Liquid Gold, Rear Compression Spring. Hyper SilverLiquid Gold, Rear Compression Spring. Hyper Silver
-
135c706003292 Liquid Gold, Rear Compression Spring. Hyper SilverLiquid Gold, Rear Compression Spring. Hyper Silver
-
135d706003293 Liquid Gold, Rear Compression Spring. Hyper SilverLiquid Gold, Rear Compression Spring. Hyper Silver
-
135e706202215 ProtectorProtector
-
135f250200025 Washer M5Washer M5
-
135g210251150 Hex. Flanged Screw M5 X 11Hex. Flanged Screw M5 X 11
