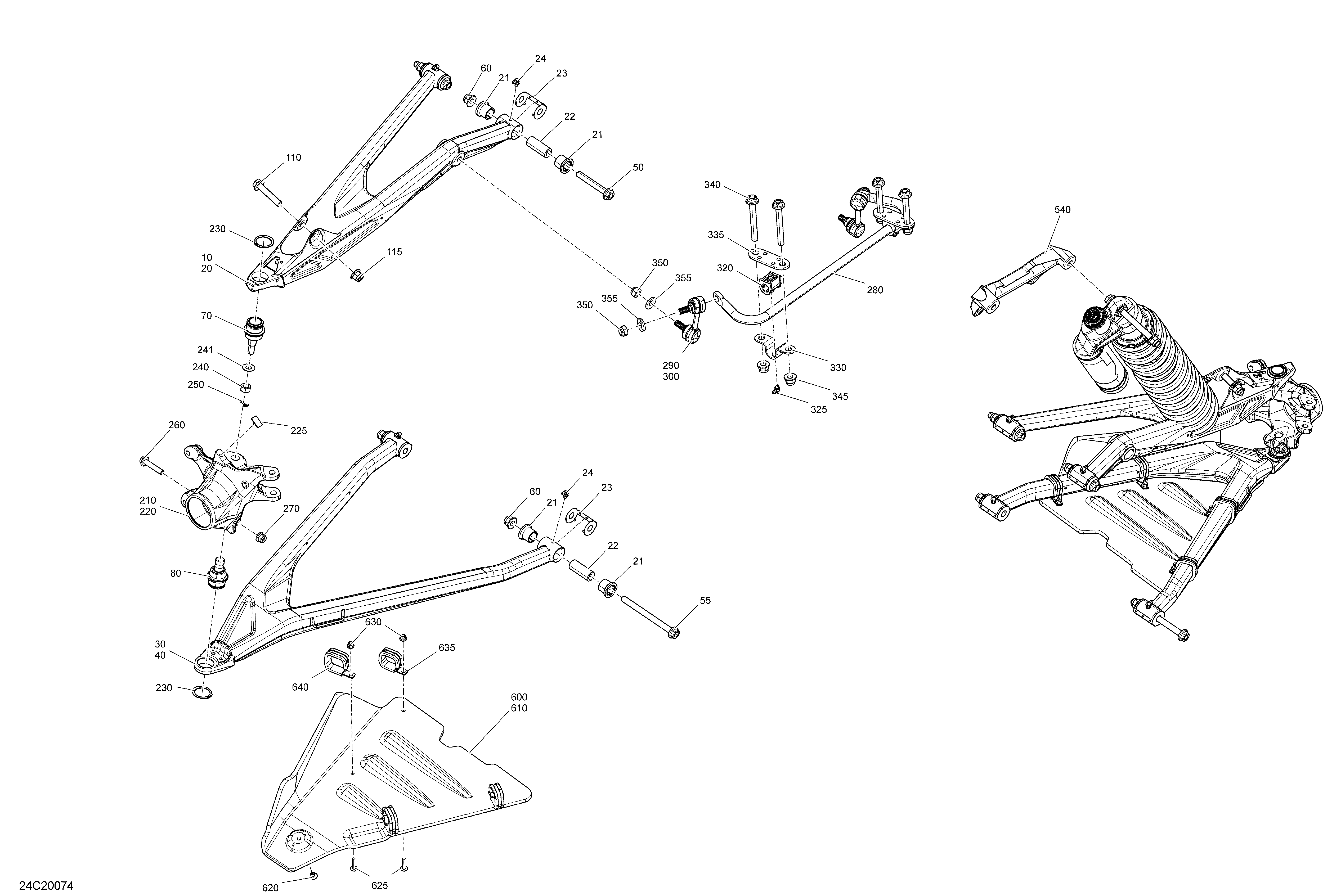

07- Front Suspension для BRP 006 - Maverick Turbo RR - XRC - North America - 2020
-
№АртикулНазвание
-
21706201659 CushionCushion
-
22706202257 Interior BushingInterior Bushing
-
23706202300 Wear PlateWear Plate
-
24293550056 Grease Fitting 90°Grease Fitting 90°
-
30706202706 Black, LH Lower ArmBlack, LH Lower Arm
-
40706202707 Black, RH Lower ArmBlack, RH Lower Arm
-
50250000859 Screw Flange M12 X 85Screw Flange M12 X 85
-
55250000861 Screw Flange M12 X 145Screw Flange M12 X 145
-
60233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
70706203084 Ball JointBall Joint
-
80706202045 Ball JointBall Joint
-
110250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
115233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
210706202759 LH KnuckleLH Knuckle
-
220706202760 RH KnuckleRH Knuckle
-
225706202502 Wear PlateWear Plate
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
250211400017 Cotter PinCotter Pin
-
260207605044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
270233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
280706203953 Stabilizer Bar Ass'yStabilizer Bar Ass'y
-
290706203611 LH Stabilizer Bar LinkLH Stabilizer Bar Link
-
300706203612 RH Stabilizer Bar LinkRH Stabilizer Bar Link
-
320706203954 Stabilizer Bar BushingStabilizer Bar Bushing
-
325293550056 Grease Fitting 90°Grease Fitting 90°
-
330706202460 ClampClamp
-
335706202551 Plate SupportPlate Support
-
340250000876 Hex. Flanged Screw M12 X 95Hex. Flanged Screw M12 X 95
-
345233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
350232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
355250200167 Conical Spring Washer M12Conical Spring Washer M12
-
600703501027 LH A-Arm ProtectorLH A-Arm Protector
-
610703501028 RH A-Arm ProtectorRH A-Arm Protector
-
620293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
625250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
630233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
635293750085 Holding ClampHolding Clamp
-
640293750086 Holding ClampHolding Clamp
