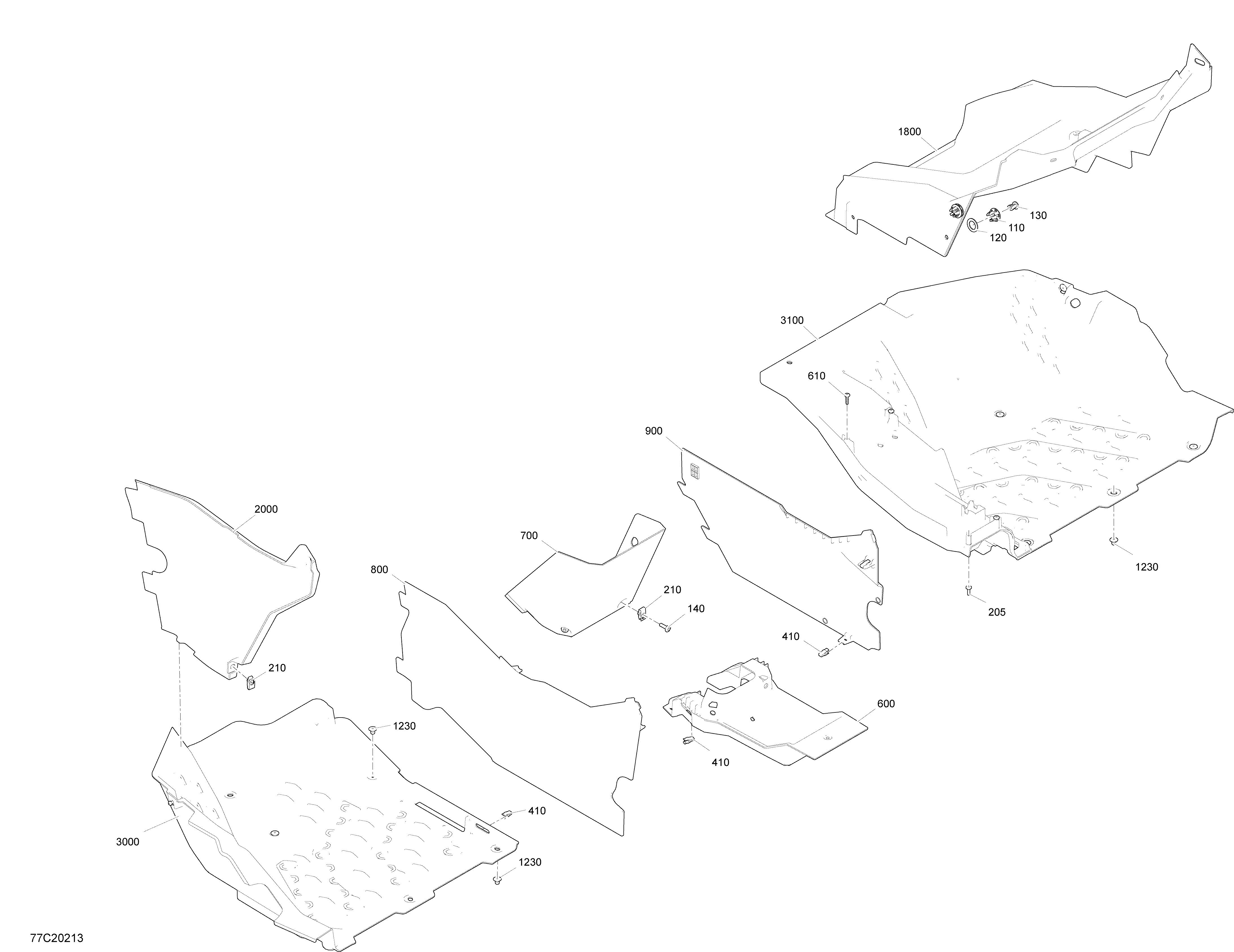

09- Cab Interior - Floor Section для BRP 006 - Maverick Turbo RR - XRC - North America - 2020
-
№АртикулНазвание
-
110707900133 InsertInsert
-
120503189273 WasherWasher
-
130293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
140250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
205250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
210250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
410705010721 ClipClip
-
600707900460 Front Top ConsoleFront Top Console
-
610250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
700707900473 Cover Central ConsoleCover Central Console
-
800707900398 LH Lateral Console PanelLH Lateral Console Panel
-
900707900399 RH Lateral Console PanelRH Lateral Console Panel
-
1230293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1800707900410 RH Lower Dash PanelRH Lower Dash Panel
-
2000707900477 Side Panel CoverSide Panel Cover
-
3000707900339 LH Front FloorLH Front Floor
-
3100707900340 RH Front FloorRH Front Floor
