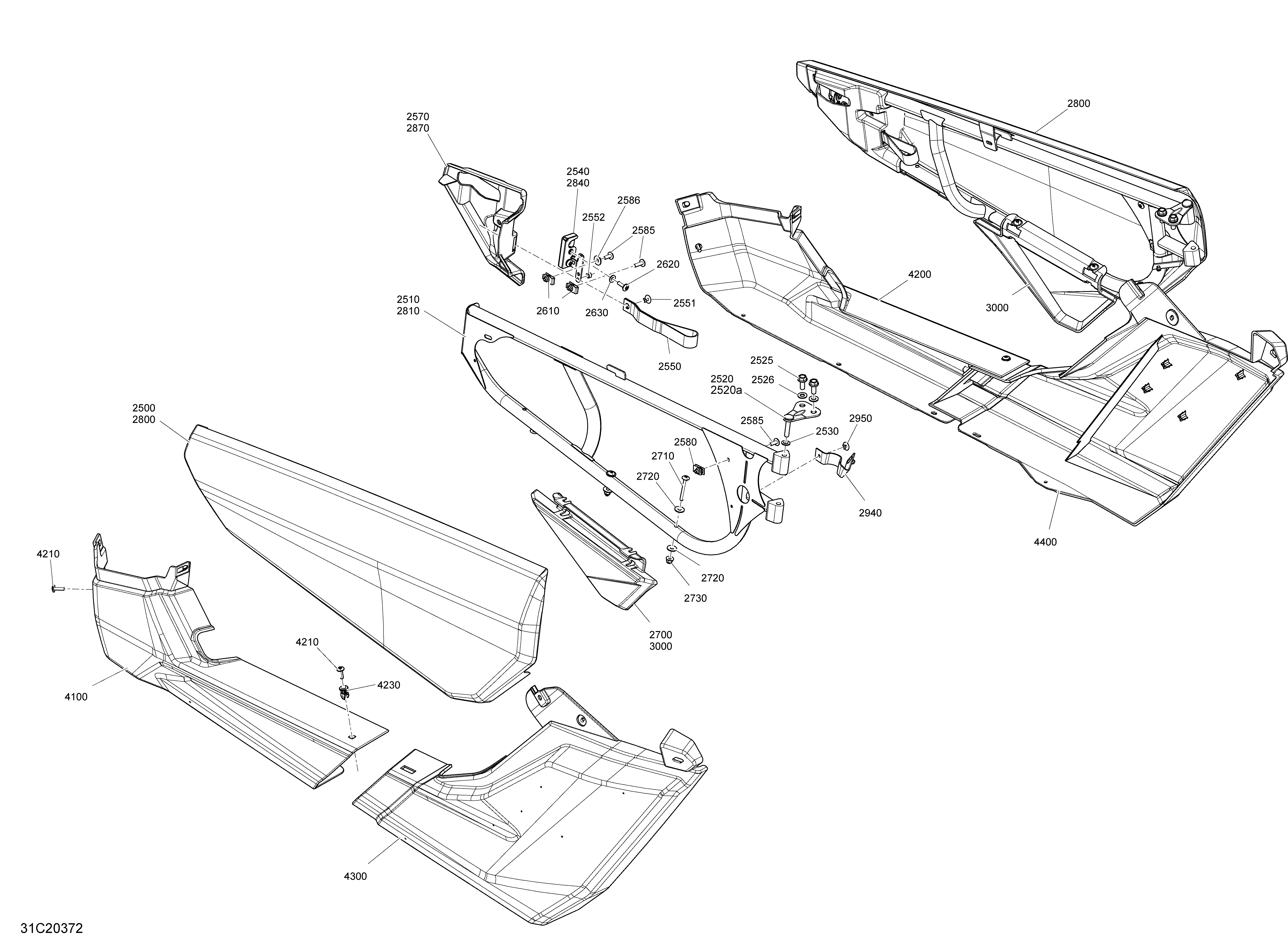

09- Body - Door Section - XRC - Orange для BRP 006 - Maverick Turbo RR - XRC - North America - 2020
-
№АртикулНазвание
-
2500705012472 Carbon Black, LH Door PanelCarbon Black, LH Door Panel
-
2510705012564 Black, LH Door FrameBlack, LH Door Frame
-
2520705011187 Door Support. Includes 2520 to 2520aDoor Support. Includes 2520 to 2520a
-
2520a250000913 Weld Pin 8mm X 40mmWeld Pin 8mm X 40mm
-
2525207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2526234081430 Flat Washer M8Flat Washer M8
-
2530234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
2540705013095 LH LatchLH Latch
-
2550293850135 BeltBelt
-
2551293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2552293900104 BushingBushing
-
2570705013535 LH Latch CoverLH Latch Cover
-
2580250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2585250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
2586234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2610250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2620250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2630224061121 Flat WasherFlat Washer
-
2700705010732 LH Lower Door PanelLH Lower Door Panel
-
2710250000749 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
2720234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2730233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2800705012473 Carbon Black, RH Door PanelCarbon Black, RH Door Panel
-
2810705012565 Black, RH Door FrameBlack, RH Door Frame
-
2840705013096 RH LatchRH Latch
-
2870705013536 RH Latch CoverRH Latch Cover
-
2940293850129 Door BeltDoor Belt
-
2950293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
3000705010733 RH Lower Door PanelRH Lower Door Panel
-
4100705014105 Orange Crush, LH Front Lower Body PanelOrange Crush, LH Front Lower Body Panel
-
4200705014106 Orange Crush, RH Front Lower Body PanelOrange Crush, RH Front Lower Body Panel
-
4210250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4230705010872 InsertInsert
-
4300705014107 Orange Crush, LH Rear Lower Body PanelOrange Crush, LH Rear Lower Body Panel
-
4400705014108 Orange Crush, RH Rear Lower Body PanelOrange Crush, RH Rear Lower Body Panel
