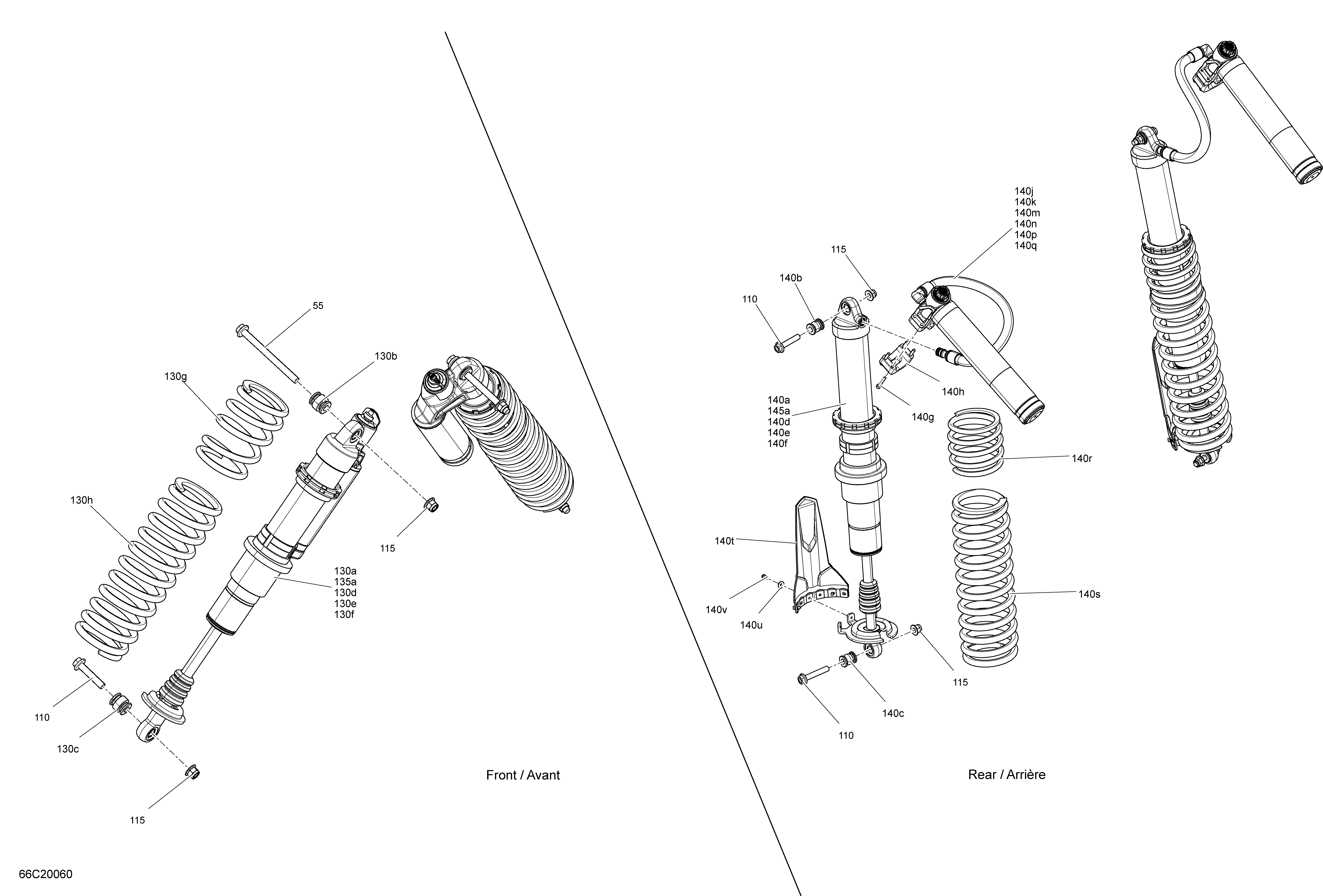

08- Shocks для BRP 006 - Maverick Turbo RR - XRC - North America - 2020
![](/wa-data/public/shop/sheme/bombardier/utv/43a4a365-17e7-404d-bd2e-80ca1300254f.png)
-
№АртикулНазвание
-
55250000861 Screw Flange M12 X 145Screw Flange M12 X 145
-
110250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
115233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
130a706204044 LH Front Shock. Includes 130a to 130fLH Front Shock. Includes 130a to 130f
-
130b715900337 Spherical BearingSpherical Bearing
-
130c715900482 BearingBearing
-
130d715900338 O-Ring BushingO-Ring Bushing
-
130e715900480 CirclipCirclip
-
130f715900481 ReducerReducer
-
130g706203835 Orange Crush, Front Compression SpringOrange Crush, Front Compression Spring
-
130h706203836 Orange Crush, Front Compression SpringOrange Crush, Front Compression Spring
-
135a706204045 RH Front Shock. Includes 135a to 135fRH Front Shock. Includes 135a to 135f
-
140a706003896 Rear Shock Absorber. Includes 140a to 140hRear Shock Absorber. Includes 140a to 140h
-
140b715900337 Spherical BearingSpherical Bearing
-
140c715900482 BearingBearing
-
140d715900338 O-Ring BushingO-Ring Bushing
-
140e715900480 CirclipCirclip
-
140f715900481 ReducerReducer
-
140g715900521 Screw M6 X 35Screw M6 X 35
-
140h715900522 Reservoir ClampReservoir Clamp
-
140j715900605 Preload RingPreload Ring
-
140k715900606 Preload Ring BackupPreload Ring Backup
-
140m715900607 Spring AdapterSpring Adapter
-
140n715900608 Crossover ringCrossover ring
-
140p715900597 Spring RetainerSpring Retainer
-
140q715900593 Spring CouplerSpring Coupler
-
140r706003566 Orange Crush, Rear Compression SpringOrange Crush, Rear Compression Spring
-
140s706003565 Orange Crush, Rear Compression SpringOrange Crush, Rear Compression Spring
-
140t706202215 ProtectorProtector
-
140u250200025 Washer M5Washer M5
-
140v210251150 Hex. Flanged Screw M5 X 11Hex. Flanged Screw M5 X 11
-
145a706003896 Rear Shock Absorber. Includes 145a to 145hRear Shock Absorber. Includes 145a to 145h
