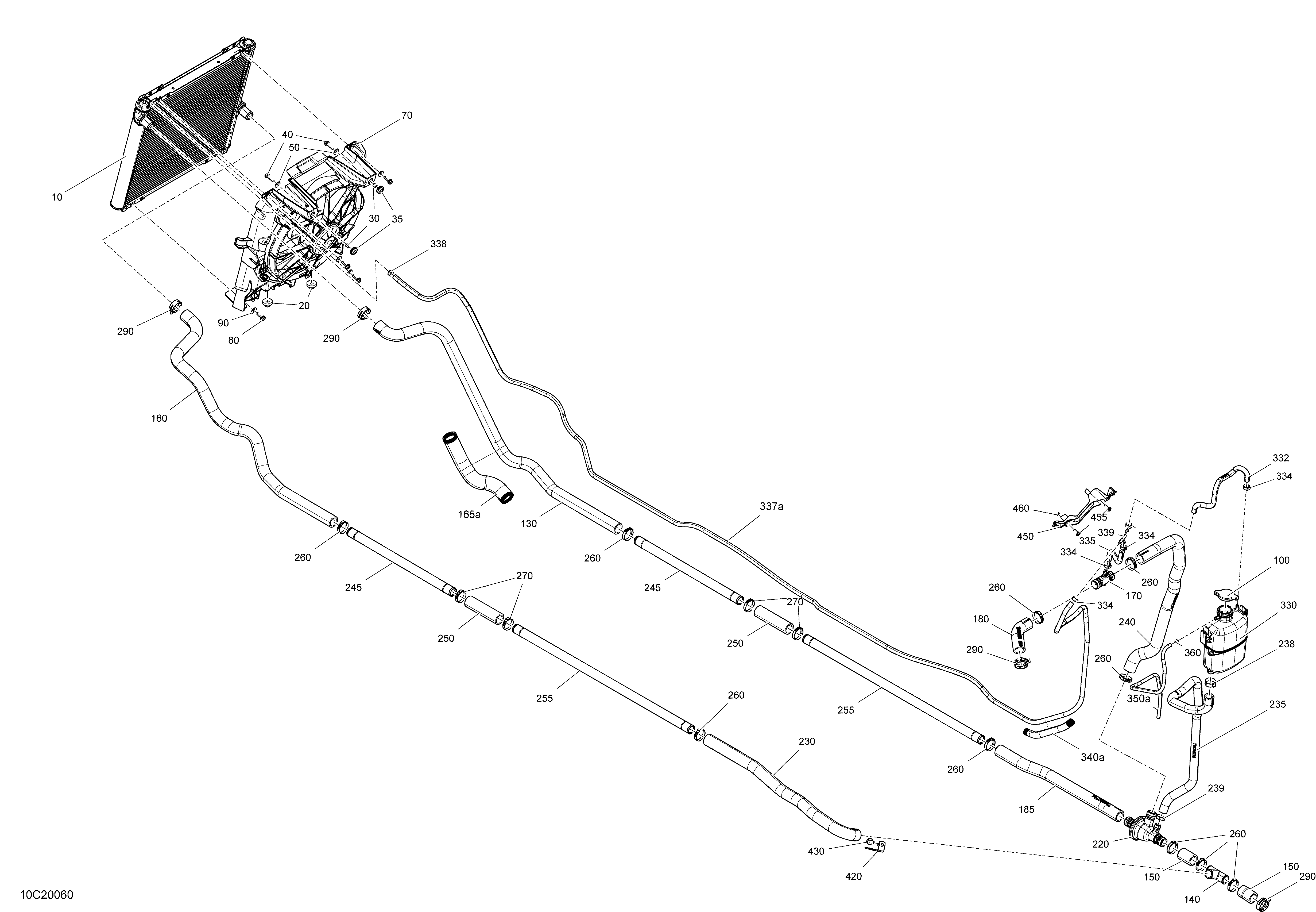

01- Cooling - System для BRP 007 - Maverick Sport MAX 1000R - North America - 2020
-
№АртикулНазвание
-
10709200703 RadiatorRadiator
-
20709200285 GrommetGrommet
-
30293900105 BushingBushing
-
35293720053 GrommetGrommet
-
40207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
50234062410 Flat Washer 6 mmFlat Washer 6 mm
-
70709200665 Fan Ass'yFan Ass'y
-
80207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
90234062410 Flat Washer 6 mmFlat Washer 6 mm
-
100709200207 Pressure CapPressure Cap
-
130709200793 Inlet hoseInlet hose
-
140509000219 T-FittingT-Fitting
-
150709200672 Pump HosePump Hose
-
160709200797 Outlet HoseOutlet Hose
-
165a515176260 Tubing 35 mmTubing 35 mm
-
170509000510 T-FittingT-Fitting
-
180709200729 HoseHose
-
185709200794 HoseHose
-
220709200581 Thermostat HousingThermostat Housing
-
230709200795 Radiator HoseRadiator Hose
-
235709200736 HoseHose
-
238293650165 Oetiker Gear ClampOetiker Gear Clamp
-
239509000442 Oeticker Gear Clamp, 25.6-706ROeticker Gear Clamp, 25.6-706R
-
240709200796 HoseHose
-
245709200664 Radiator TubeRadiator Tube
-
250709200742 HoseHose
-
255709200657 Heater TubingHeater Tubing
-
260509000162 Gear ClampGear Clamp
-
270509000162 Gear ClampGear Clamp
-
290293650166 Norma Spring ClampNorma Spring Clamp
-
330709200412 Coolant TankCoolant Tank
-
332709200799 Bleeding HoseBleeding Hose
-
334293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
335709200798 Bleeding HoseBleeding Hose
-
337a415129508 Bleeder HoseBleeder Hose
-
338293650025 Oetiker Gear ClampOetiker Gear Clamp
-
339293710059 Y-FittingY-Fitting
-
340a415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
-
350a293830193 Polyurethane HosePolyurethane Hose
-
360414554800 Spring ClampSpring Clamp
-
420709200721 SupportSupport
-
430207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
450709200746 SupportSupport
-
455250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
460709200761 BushingBushing
