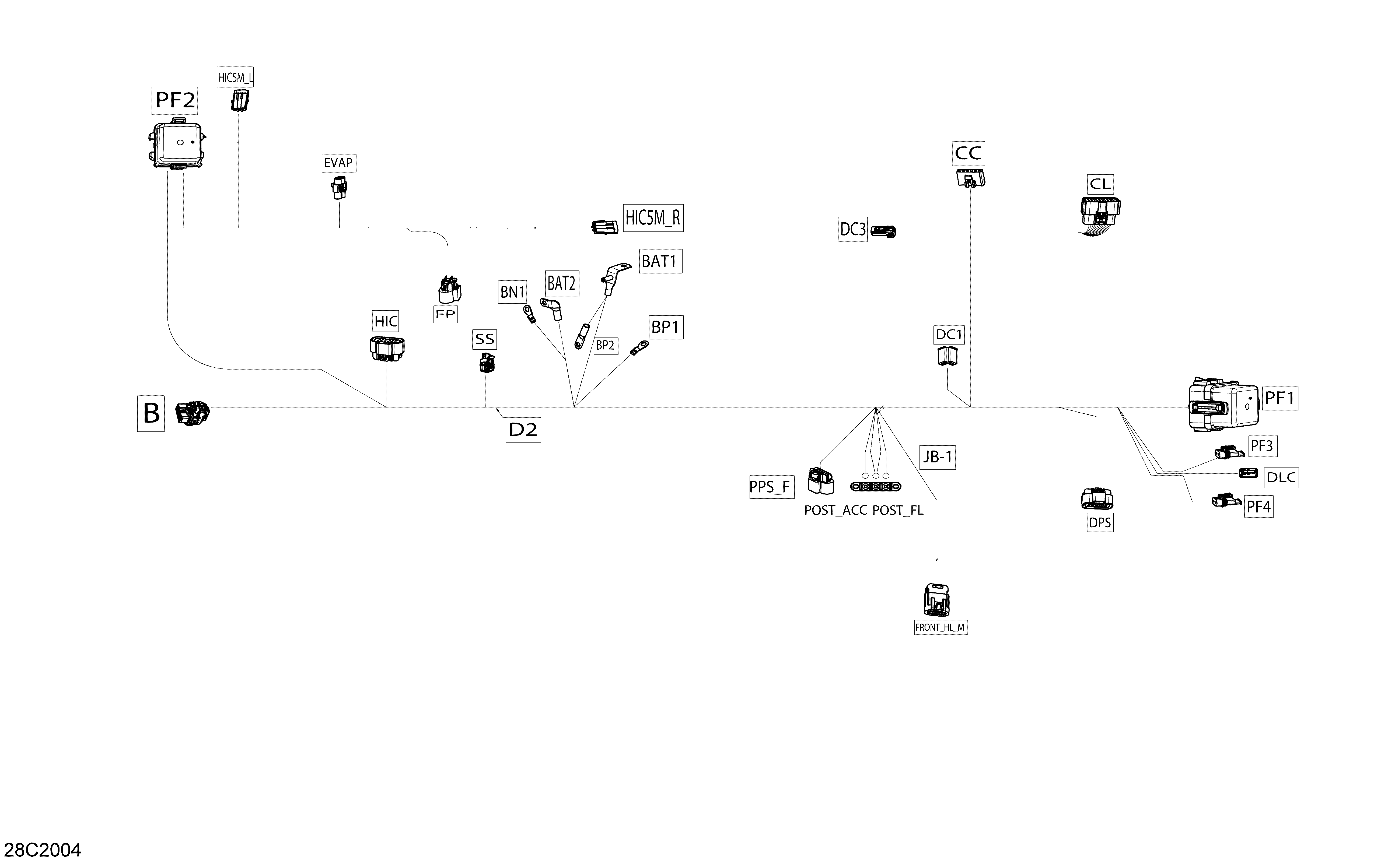

10- Main Harness - 710006762 для BRP 007 - Maverick Sport MAX 1000R - North America - 2020
-
№АртикулНазвание
-
4X4710006075 LabelLabel
-
4X4710002000 HousingHousing
-
4X4710005491 Female TerminalFemale Terminal
-
4X4710003047 TerminalTerminal
-
B710001591 Cover, 48 positionsCover, 48 positions
-
B710001588 Female Terminal Housing, 48 CircuitsFemale Terminal Housing, 48 Circuits
-
B710001592 PlugPlug
-
B710001593 PlugPlug
-
B710001589 Female TerminalFemale Terminal
-
B710001728 TerminalTerminal
-
B710001727 Female TerminalFemale Terminal
-
BAT2710000475 Open Barel 6.6 mmOpen Barel 6.6 mm
-
BN1278001392 Open Barrel TerminalOpen Barrel Terminal
-
BP1515177246 Shrink Tubing, 6 mmShrink Tubing, 6 mm
-
BP1278000992 Open BarrelOpen Barrel
-
CC710000849 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
CC710000848 LockLock
-
CC710001635 TerminalTerminal
-
CL278002858 Female Housing, 20 CircuitsFemale Housing, 20 Circuits
-
CL278002860 Sealing CapSealing Cap
-
CL515178018 Terminal FemaleTerminal Female
-
CL515178349 Female Terminal 22 AWGFemale Terminal 22 AWG
-
D1409012700 DiodeDiode
-
D2409012700 DiodeDiode
-
DC1710005373 HousingHousing
-
DC1710005952 Female TerminalFemale Terminal
-
DC3515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC3515175231 Female TerminalFemale Terminal
-
DC3_CAP710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
DESS710001161 HousingHousing
-
DESS710001162 LockLock
-
DESS710001225 CapCap
-
DESS710001163 Wire SealWire Seal
-
DESS710001164 Female TerminalFemale Terminal
-
DLC710002706 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
DLC710002705 LockLock
-
DLC710005437 PlugPlug
-
DLC710005438 Female TerminalFemale Terminal
-
DLC710005439 Female TerminalFemale Terminal
-
DPS710004989 Female HousingFemale Housing
-
DPS710005098 LockLock
-
DPS710001222 LockLock
-
DPS710002075 PlugPlug
-
DPS278002186 Wire SealWire Seal
-
DPS710003153 SealSeal
-
DPS278002187 Female TerminalFemale Terminal
-
DPS710001873 TerminalTerminal
-
EVAP710000402 Wire SealWire Seal
-
EVAP409012100 Female TerminalFemale Terminal
-
FL-1715002536 Fuse Link 21-30AMPFuse Link 21-30AMP
-
FL-2715002538 Fuse Link 41-50AMPFuse Link 41-50AMP
-
FP278002185 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
FP710001222 LockLock
-
FP710006214 LockLock
-
FP278002186 Wire SealWire Seal
-
FP710003153 SealSeal
-
FP278002187 Female TerminalFemale Terminal
-
FP710001873 TerminalTerminal
-
FRA515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FRA710003896 Female TerminalFemale Terminal
-
FRONT_HL_M409210100 Clip Bracket Connector (edge)Clip Bracket Connector (edge)
-
FRONT_HL_M710006398 LockLock
-
FRONT_HL_M710001332 Seal WireSeal Wire
-
FRONT_HL_M710001233 SealSeal
-
FRONT_HL_M710001223 TerminalTerminal
-
FRONT_HL_M710001224 TerminalTerminal
-
FT710000992 ClipClip
-
FT278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FT278000218 Wire SealWire Seal
-
FT409004300 Male TerminalMale Terminal
-
HIBM710006074 LabelLabel
-
HIBM710002001 Housing ConnectorHousing Connector
-
HIBM710003047 TerminalTerminal
-
HIBM710005491 Female TerminalFemale Terminal
-
HIC710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
HIC710001222 LockLock
-
HIC710006333 LockLock
-
HIC710001225 CapCap
-
HIC710001332 Seal WireSeal Wire
-
HIC710001233 SealSeal
-
HIC710001229 TerminalTerminal
-
HIC710001228 TerminalTerminal
-
HIC5M_L278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
HIC5M_L278001065 Wire SealWire Seal
-
HIC5M_L278000222 Male TerminalMale Terminal
-
HIC5M_R278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
HIC5M_R278001065 Wire SealWire Seal
-
HIC5M_R278000222 Male TerminalMale Terminal
-
JB-1710004826 CoverCover
-
JB-1710004825 3-Positions Pole3-Positions Pole
-
JB-1232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
PF1278003448 Fuse Base Ass'yFuse Base Ass'y
-
PF1278003553 Fuse CoverFuse Cover
-
PF1710005671 Housing SupportHousing Support
-
PF1278000216 Wire SealWire Seal
-
PF1293300198 SealSeal
-
PF1241140060 Screw K40 X 10Screw K40 X 10
-
PF1278000218 Wire SealWire Seal
-
PF1710000048 Wire SealWire Seal
-
PF1278001065 Wire SealWire Seal
-
PF1515177177 Female TerminalFemale Terminal
-
PF1710000918 Female TerminalFemale Terminal
-
PF1278002578 Female TerminalFemale Terminal
-
PF1_STD_LABEL710005773 Fuse Box DecalFuse Box Decal
-
PF1-F10710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1-F11710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
PF1-F12710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1-F14710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1-F16710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1-R3515176774 Relay, 30 AMPRelay, 30 AMP
-
PF1-R8710001778 RelayRelay
-
PF1-R9515176775 Relay, 50 AMPRelay, 50 AMP
-
PF1-SP1710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
PF2278003553 Fuse CoverFuse Cover
-
PF2710006106 Logo Fuse RelayLogo Fuse Relay
-
PF2278003448 Fuse Base Ass'yFuse Base Ass'y
-
PF2278000216 Wire SealWire Seal
-
PF2293300198 SealSeal
-
PF2278000218 Wire SealWire Seal
-
PF2278001065 Wire SealWire Seal
-
PF2710000918 Female TerminalFemale Terminal
-
PF2278002578 Female TerminalFemale Terminal
-
PF2_SP1710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2_SP2710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2_SP3710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2-F18710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2-F4710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2-F5710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2-F6710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2-F7710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2-F8710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2-F9710002590 Fuse, 25 AmpsFuse, 25 Amps
-
PF2-R1515176774 Relay, 30 AMPRelay, 30 AMP
-
PF2-R2710001778 RelayRelay
-
PF3278001325 Fuse HolderFuse Holder
-
PF3710000113 Female TerminalFemale Terminal
-
PF3-F2710001613 FuseFuse
-
PF4278001325 Fuse HolderFuse Holder
-
PF4710000113 Female TerminalFemale Terminal
-
PF4710000357 Female TerminalFemale Terminal
-
PF4-F21710001613 FuseFuse
-
POST_ACC515177246 Shrink Tubing, 6 mmShrink Tubing, 6 mm
-
POST_ACC278000992 Open BarrelOpen Barrel
-
POST_FL515177246 Shrink Tubing, 6 mmShrink Tubing, 6 mm
-
POST_FL278000992 Open BarrelOpen Barrel
-
PPS_F710001232 HousingHousing
-
PPS_F710001222 LockLock
-
PPS_F710001233 SealSeal
-
PPS_F710001229 TerminalTerminal
-
SB710002177 HousingHousing
-
SB710002043 LockLock
-
SB278001482 SealSeal
-
SB710001134 Female TerminalFemale Terminal
-
SS515177192 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
SS710001152 LockLock
-
SS710001153 Seal WireSeal Wire
-
SS710001164 Female TerminalFemale Terminal
